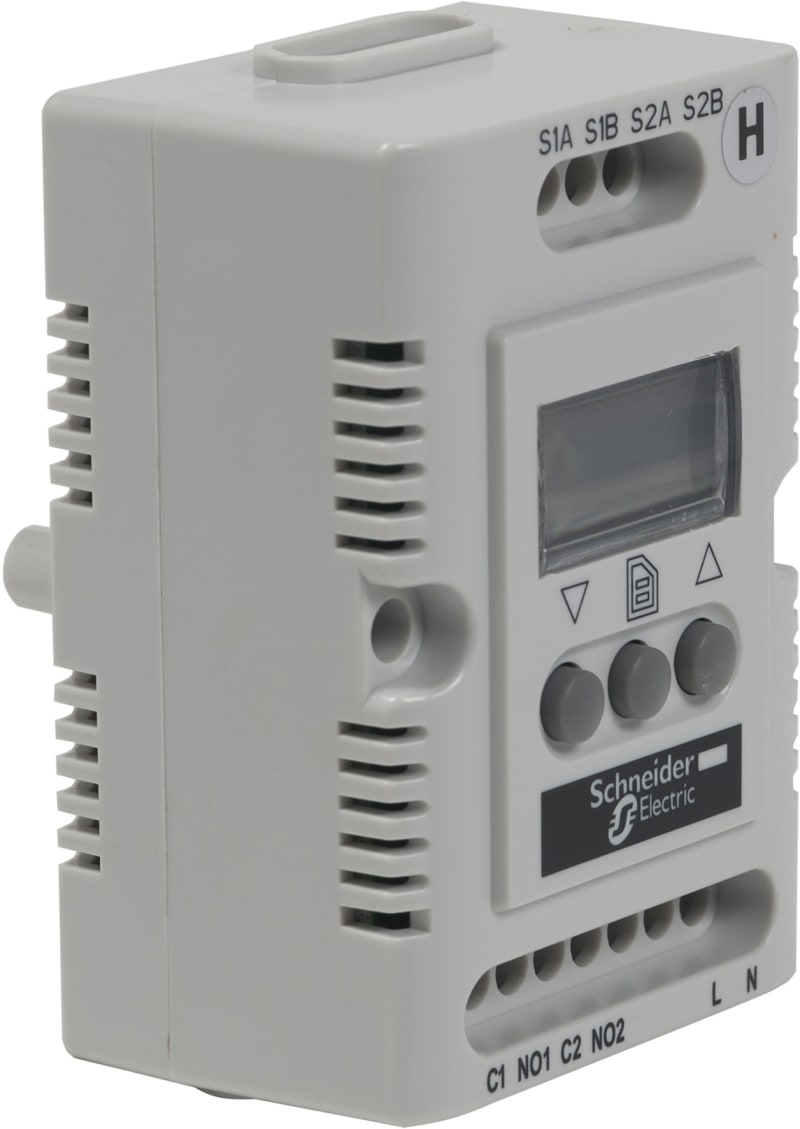

Schneider Electric Climasys CC - electronic hygrostat - 200…240 V - Hr 20…80% - OLED screen NSYCCOHY230VID
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCCOHY230VID Hygrostat 30-95%PURE WHITE Inv.kont., ClimaSys.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCCOHY230VID
- EAN / GTIN
- 3606480152634
- Sales unit
- pcs
- Package quantity
- 135 pcs
- Range
- ClimaSys
- Product name
- ClimaSys CC
- Product or component type
- Electronic hygrostat
- Humidity setting range
- 20…80 %
- Display type
- OLED screen
- Information displayed
- Relative humidity
- Input voltage
- 200...240 V AC
- Maximum switching capacity
- 4 A 230 V AC
- Electrical connection
- 6 terminals, clamping capacity: 2.5 mm²
- mounting mode
- By screws; Clipped
- Height
- External: 85 mm
- Width
- External: 56 mm
- Depth
- External : 44 mm
- Mounting location
- On mounting plate; Cross rails; 35 mm DIN rail; Spacial upright
- Ambient air temperature for operation
- -40…80 °C
- Hysteresis
- 3 %
- Number of outputs
- 2 heating function
- Material
- PC
- Colour
- Light grey
- Flame retardance
- Self-extinguishing conforming to UL94 (material V0)
- Product certifications
- UR
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.800 cm
- Package 1 Width
- 7.500 cm
- Package 1 Length
- 8.700 cm
- Package 1 Weight
- 154.000 g
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 75
- Package 2 Height
- 27.000 cm
- Package 2 Width
- 30.300 cm
- Package 2 Length
- 45.000 cm
- Package 2 Weight
- 11.550 kg
- Unit Type of Package 3
- PAM
- Number of Units in Package 3
- 900
- Package 3 Height
- 93.000 cm
- Package 3 Width
- 100.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 150.000 kg
- Country of origin
- CN
- Warranty (in months)
- 18
- Rated voltage AC 50 Hz
- 200–240 V
- Rated voltage AC 60 Hz
- 200–240 V
- Model
- Hygrostat
- Rated voltage
- 240 V
- Rated current In
- 4 A
- Adjustable setting value for relative air humidity
- 20–80 %
- Temperature setting range
- -40–80 °C
- Mounting method
- Clamp mounting
- Type of switch function
- Normally closed contact and normally open contact
- With digital indication
- Yes
Standards & Compliance
- HS Code
- 9032.10
Cross References
- EAN 3606480152634
- SAP 1000088974
- Code 8913219
Product Documentation
