Wireless set button and receiver (XB4RFA02)

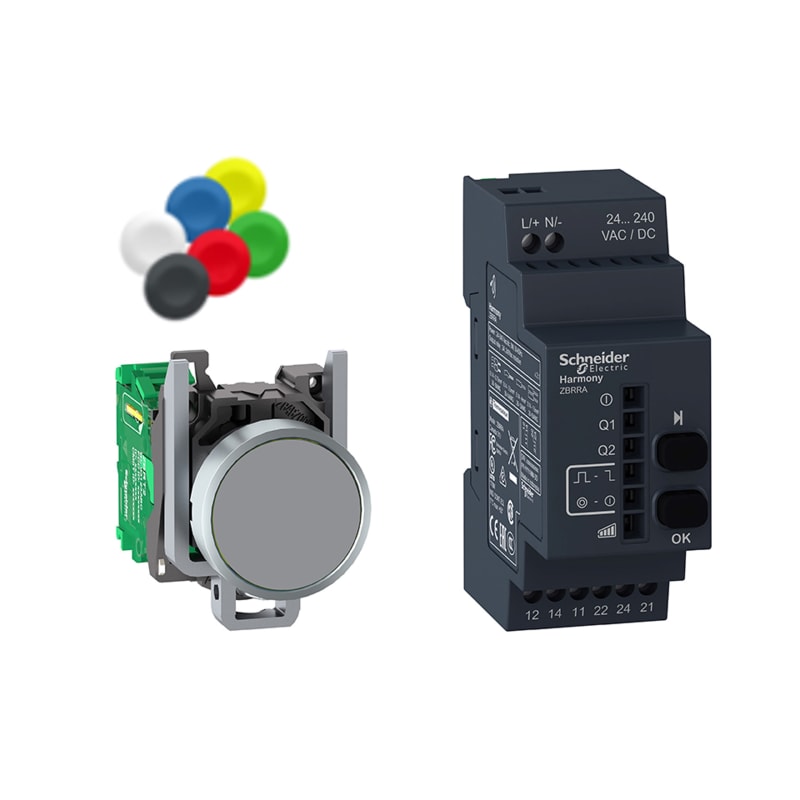

Schneider Electric XB4RFA02 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Wireless set with wireless push-button in metal and receiver with 2 C/O outputs and 24-240V supply.

Manufacturer part number (MPN)

XB4RFA02

EAN / GTIN

3606480436031

Sales unit

pcs

Package quantity

16 pcs

Range of product

Harmony XB4R

Product or component type

Wireless and batteryless package

Device short name

XB4R

Head material

Metal

frequency

2405 MHz for transmitter; 2405 MHz for receiver

emission class

5M00G7W

Antenna type

Omnidirectional

Control type

Wireless and batteryless push-button Ø 22 mm assembled on fixing collar

Type of receiver

Programmable receiver (2 relays)

[Us] rated supply voltage

24...240 V AC/DC 50/60 Hz

Kit composition

1 diameter: 22 mm; 1 push-button head diameter: 22 mm; 1 receiver; 1 set of caps; 1 fixing collars; 1 transmitter

Status LED

1 LED green for power ON; 2 LEDs green for relay ON; 2 LEDs green for function mode; 1 LED green and yellow for reception signal

Communication port protocol

Zigbee conforming to IEEE 802.15.4

Max power consumption in W

1 mW

Number of channels

1

Modulation Technique

O-QPSK

Bandwidth

5 MHz

Supply voltage

24...240 V

Product certifications

GOST; CCC; CSA; UL; C-Tick

Marking

CE

Standards

IEC 60947-1; IEC 60947-5-1; CSA C22.2 No 14; UL 508

Radio agreement

ANATEL; FCC; RSS; ARIB T66; ICASA; SRRC

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

9.200 cm

Package 1 Width

10.500 cm

Package 1 Length

10.800 cm

Package 1 Weight

250.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

16

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

4.459 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Suitable for lighting

No

Number of command positions

1

Spring-return

Yes

Type of button

Flat

Colour front ring

Chrome

Degree of protection (IP)

IP65

Material front ring

Metal

With front ring

Yes

Transparent

No

Construction type lens

Round

Supply voltage lamp

24 V

Switching function latching

No
