Connection Cablef. NS630B-1000 fast hor. 4P P
Pricing
Request a quote
We reply within 24 hours
Product Description

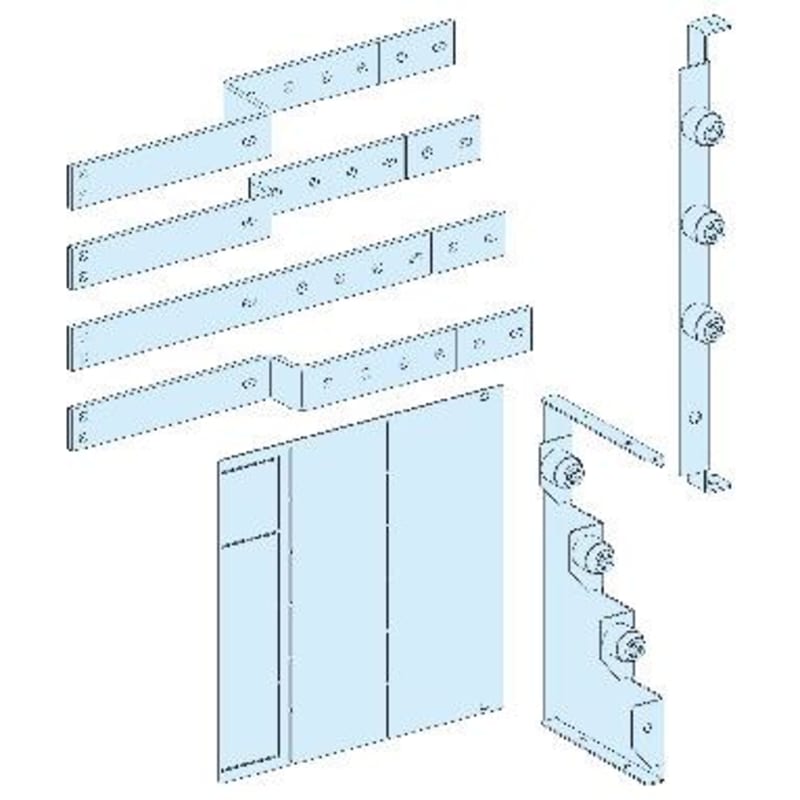

Schneider Electric LVS04484 Connection for cable compartment for fast-horizontal mounted NS630b-1000 4P -PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04484
- EAN / GTIN
- 3606481867803
- Sales unit
- pcs
- Number of poles
- 4P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Connection transfer assembly
- product name
- PrismaSeT PrismaSeT P enclosure
- Accessory / separate part category
- Connection accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- connection transfer assembly
- Poles description
- 4P
- installation description
- Cubicle + duct - width 650 mm
- Installed device
- ComPact: fixed NS630b...1000 - control: toggle horizontal installation; ComPact: fixed NS630b...1000 - control: direct front rotary handle horizontal installation
- [Ie] rated operational current
- 1600 A
- Busbar cross section
- 80 x 10 mm
- Height
- 375 mm
- Width
- 577 mm
- Depth
- 350 mm
- Product weight
- 20.06 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed toggle horizontal 4P 1 connection transfer assembly 8; 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed direct front rotary handle horizontal 4P 1 connection transfer assembly 8
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 11.5 cm
- Package 1 Width
- 38.0 cm
- Package 1 Length
- 64.0 cm
- Package 1 Weight
- 19.589 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 13
- Package 2 Height
- 52.0 cm
- Package 2 Width
- 80.0 cm
- Package 2 Length
- 120.0 cm
- Package 2 Weight
- 266.0 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- With cover
- No
- Max. rated current
- 1600 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481867803
- SAP 1200547135
- Code 82879425
Product Documentation
