Modicon Unmanaged Switch - 8TX
Pricing
Request a quote
We reply within 24 hours
Product Description

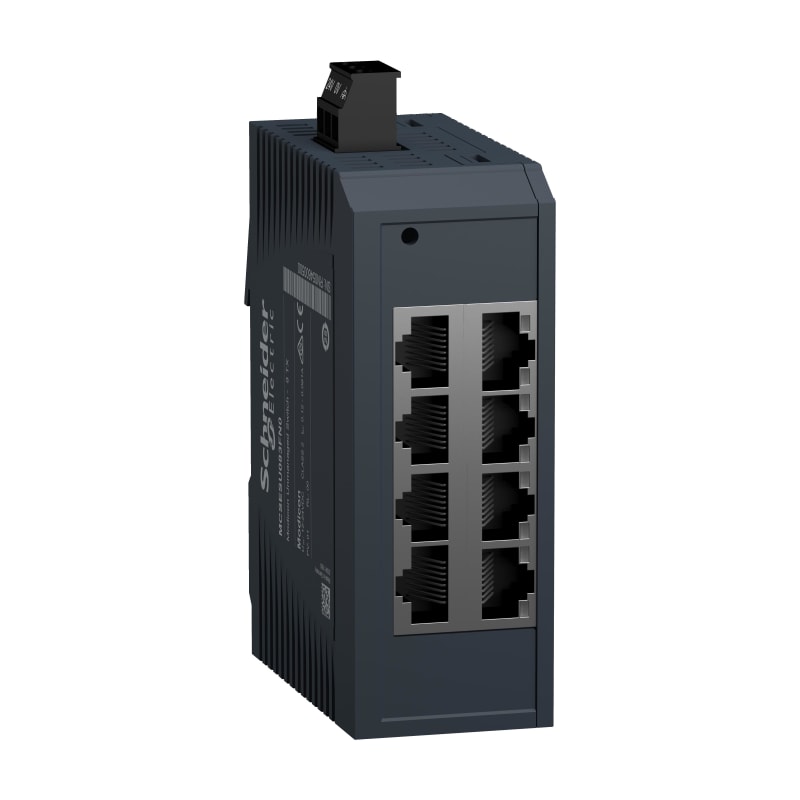

Schneider Electric MCSESU083FN0 Modicon Unmanaged Switch - 8 porter for copper.
Technical Specifications
- Manufacturer part number (MPN)
- MCSESU083FN0
- EAN / GTIN
- 3606481029553
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Range of product
- Modicon Networking
- Product or component type
- Ethernet TCP/IP unmanaged switch
- Communication port protocol
- Ethernet TCP/IP
- Port Ethernet
- 10/100BASE-TX - 8 port(s) copper cable
- Maximum number of switches in cascade
- Unlimited
- Integrated connection type
- Shielded RJ45 copper cable
- Transmission support medium
- Twisted shielded pairs cable CAT 5E for copper cable
- Maximum cable distance between devices
- 100 m copper cable
- Supply voltage
- 12...24 V
- Supply voltage limits
- 9.6…32 V DC SELV
- Power consumption in W
- 1.5 W
- Electrical connection
- Removable connector 3 ways power supply
- Mounting support
- 35 mm symmetrical DIN rail
- Marking
- CE; UL; RCM
- Local signalling
- 1 LED (green) for power supply; 1 LED per channel (yellow) for data rate (ETH LINK); 1 dual colour LED (green/yellow) for link status
- Ethernet cabling system
- TF switches
- Width
- 38 mm
- Height
- 102 mm
- Depth
- 79 mm
- Product weight
- 0.15 kg
- Ambient air temperature for operation
- 0…60 °C
- Relative humidity
- 10…95 % non-condensing
- IP degree of protection
- IP30
- Directives
- 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility
- Standards
- UL 61010-2-201; EN/IEC 61131-2
- Product certifications
- CE; UL; RCM; EAC; UKCA
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Number of Units in Package 3
- 80
- Country of origin
- DE
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481029553
- SAP 1200576065
- Code 82931088
Product Documentation
