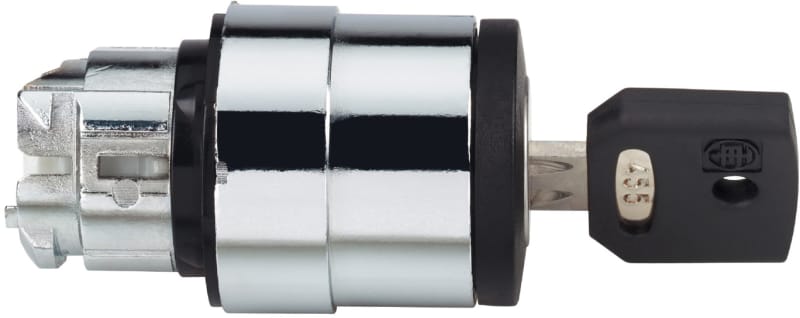

Schneider Electric Harmony XB4 Key Selector Switch Head, 2 Positions, Key 455

The Schneider Electric ZB4BG02 is a Harmony XB4 key selector switch head for 22 mm operator holes, in chromium-plated metal. It provides two stay-put positions selected with a Key 455, with the key withdrawable in the right position. It is used on machine and industrial control panels where operation must be restricted to authorised personnel.

Manufacturer part number (MPN)

ZB4BG02

EAN / GTIN

3389110368611

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB4

Product or component type

Head for key selector switch

Device short name

ZB4

Bezel material

Chromium plated metal

Mounting diameter

22 mm

Head type

Standard

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Operator profile

Black key switch

Type of operator

Stay put

Operator position information

2 positions 90°

Type of keylock

Key 455

Key withdrawal position

Right

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

72 mm

Product weight

0.098 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mechanical durability

1000000 cycles

Electrical composition code

C3 for <6 contacts using single blocks in front mounting; C4 for <6 contacts using single and double blocks in front mounting; C5 for <5 contacts using single blocks in front mounting; C6 for <5 contacts using single and double blocks in front mounting; C7 for <4 contacts using single blocks in front mounting; C8 for <4 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK06 with keyhole cover ZBGP conforming to IEC 50102

Standards

CSA C22.2 No 14; UL 508; EN/IEC 60947-5-4; EN/IEC 60947-1; EN/IEC 60947-5-5; GB 14048.5; EN/IEC 60947-5-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.8 cm

Package 1 Width

3.4 cm

Package 1 Length

5.2 cm

Package 1 Weight

104 g

Unit Type of Package 2

BB1

Number of Units in Package 2

5

Package 2 Height

8.8 cm

Package 2 Width

3.4 cm

Package 2 Length

26 cm

Package 2 Weight

520 g

Unit Type of Package 3

S02

Number of Units in Package 3

50

Package 3 Height

15 cm

Package 3 Width

30 cm

Package 3 Length

40 cm

Package 3 Weight

5.607 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Number of switch positions

2

Suitable for lighting

No

Spring-return

No

Colour front ring

Chrome

Degree of protection (IP), front side

IP66

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Type of control element

Key

Switching function latching

Yes

HS Code

8538.90
