Measuring Tray 6MODULE for PrismaSeT G
Pricing
Request a quote
We reply within 24 hours
Product Description

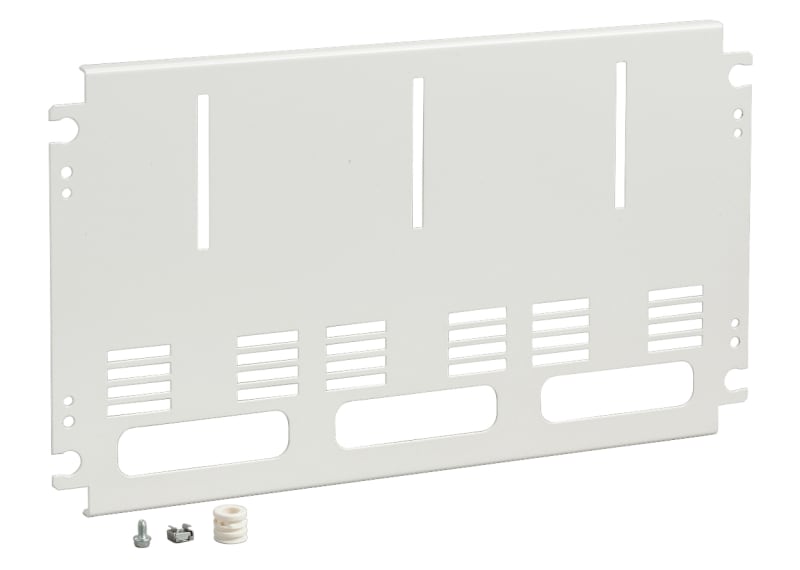

Schneider Electric LVS03157 Measuring Tray 6Module For PrismaSeT G.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03157
- EAN / GTIN
- 3606481932990
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle
- installation description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 650 mm depth 400 mm; Pack enclosure - width 555 mm
- Installed device
- Power meters: kilowatt-hour meters - vertical installation
- Poles description
- 3 x 2P: kilowatt-hour meters vertical installation
- Number of vertical modules [50 mm]
- 6 module(s): kilowatt-hour meters in 600 mm Widefloor-standing enclosure; 6 module(s): kilowatt-hour meters in 600 mm Widewall-mounted enclosure; 6 module(s): kilowatt-hour meters in 650 mm Widecubicle; 6 module(s): kilowatt-hour meters in 555 mm WidePack enclosure
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 600 mm
- Height
- 250 mm
- Product weight
- 1.44 kg
- Functional unit
- 600 mm PrismaSeT G floor-standing enclosure power meters kilowatt-hour meters vertical 2P 3 6 50 mm; 600 mm PrismaSeT G wall-mounted enclosure power meters kilowatt-hour meters vertical 2P 3 6 50 mm; 650 mm 400 mm PrismaSeT P cubicle power meters kilowatt-hour meters vertical 2P 3 6 50 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.000 cm
- Package 1 Width
- 27.400 cm
- Package 1 Length
- 47.000 cm
- Package 1 Weight
- 1.469 kg
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 10
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 15.400 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 80
- Package 3 Height
- 74.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 131.520 kg
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481932990
- SAP 1200547467
- Code 82880501
Product Documentation
