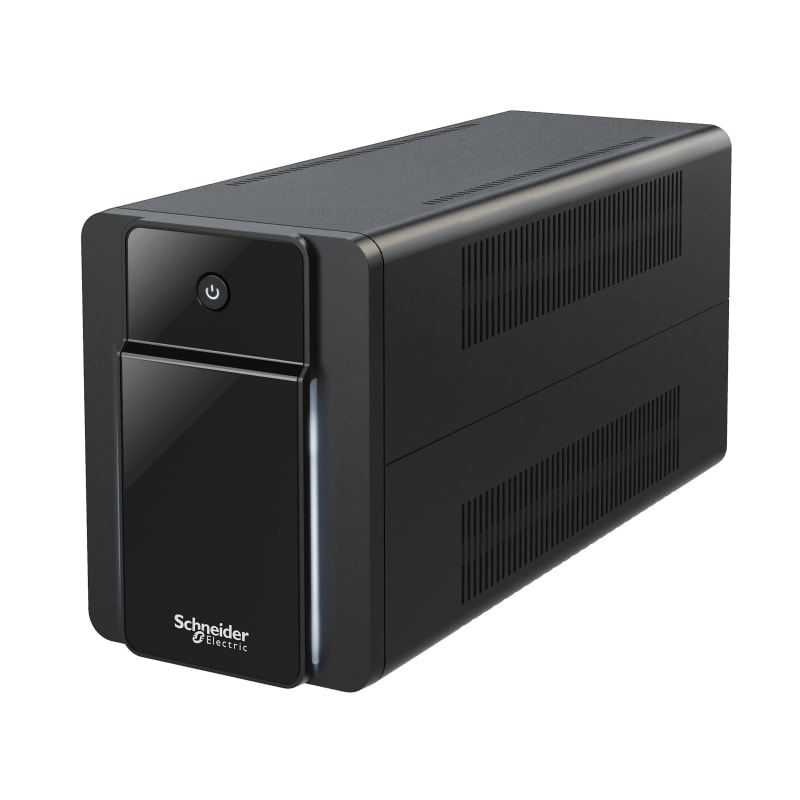

Schneider Electric SE Back-UPS, 950VA, Tower, 230V, 6 x IEC C13 outlets, AVR BXS950MI
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric BXS950MI SE Back-UPS BXS, 950VA, Tower, 230V, 4 x IEC C13.
Technical Specifications
- Manufacturer part number (MPN)
- BXS950MI
- EAN / GTIN
- 0731304629030
- Sales unit
- pcs
- Main input voltage
- 230 V AC 1 phase
- Cos phi
- 0.54
- Efficiency at full load
- 140...300 V
- Input frequency
- 50/60 Hz +/- 5 Hz auto-sensing
- Output voltage
- 230 V AC 1 phase
- Rated power in W
- 520 W
- Rated power in VA
- 950 VA
- Output connection
- 6 IEC 60320 C13
- Type of USB power supply
- None
- Maximum configurable power in VA
- 950 VA
- Maximum configurable power in W
- 520 W
- Transfer time
- 6 ms typical : 10 ms maximum
- UPS topology
- Line interactive
- Waveform type
- Stepped approximation to a sinewave
- Full load runtime
- 00:01:00 480 W
- Half load runtime
- 00:06:30 240 W
- Output frequency
- 50/60 Hz +/- 1 Hz sync to mains
- Run Time
- View Runtime Graph
- Efficiency
- View Efficiency Graph
- Battery capacity
- 9.0 Ah
- Battery type
- Lead-acid internal included
- Control panel
- LED Status display with on line : on battery
- UPS connectivity
- None
- Surge energy rating
- 273 J
- Cable length
- 1.2 m
- Number of cables
- 1
- Color
- Black
- Height
- 160 mm
- Width
- 120 mm
- Depth
- 355 mm
- Product weight
- 6.1 kg
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- Two post mountable
- 0
- USB compatible
- Yes
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Range of product
- Back-UPS
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; CB
- Standard
- EN/IEC 62040-1:2019/A11:2021
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…40 °C
- Storage altitude
- 0…3000 m
- IP protection
- IP20
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 40 dBA
- Operating altitude
- 0...3000 m
- Battery voltage
- 12 V
- Battery graph comment
- Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
- Extendable runtime
- 0
- Included battery module
- 0
- Empty battery slot
- 0
- Typical recharge time
- 8 h
- Battery design life
- 3…5 year(s)
- Battery life
- 3…5 year(s)
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 45.500 cm
- Package 1 Width
- 27.000 cm
- Package 1 Length
- 23.500 cm
- Package 1 Weight
- 7.300 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 49
- Package 2 Height
- 219.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 80.000 cm
- Package 2 Weight
- 360.900 kg
- Country of origin
- CN
- Warranty (in months)
- 24
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304629030
- SAP 1200723210
- Code 83837022
Product Documentation
