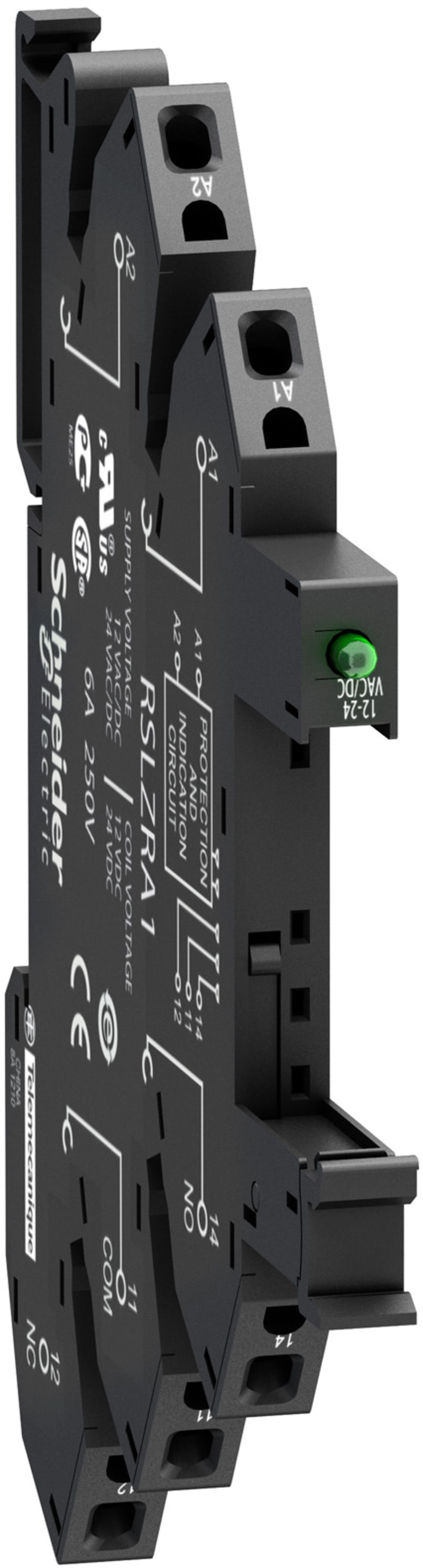

Schneider Electric Spring socket equipped with LED and protection circuit, 12...24 V AC/DC RSLZRA1

Schneider Electric RSLZRA1 Zelio Slimrelay - plinth with spring terminal 12-24VAC/DC.

Manufacturer part number (MPN)

RSLZRA1

EAN / GTIN

3606480078071

Sales unit

pcs

Package quantity

10 pcs

Voltage

12-24 V AC

Range of product

Harmony Electromechanical Relays

Device short name

RSLZ

Product or component type

Socket

Device presentation

Basic element

Product compatibility

Plug-in relay RSL with 1 C/O contact at 12 V DC; Plug-in relay RSL with 1 C/O contact at 24 V DC

Contacts type and composition

1 C/O

[Ith] conventional free air thermal current

6 A

Switching voltage

12 V AC/DC; 24 V AC/DC

Rated operational voltage limits

21.6...28.8 V; 11.4...14.4 V

[Ue] rated operational voltage

< 300 V AC

Group of product

RSL_SPRING_TERS_12-24

Shape of pin

Flat

Contact terminal arrangement

Separate

Connections - terminals

Spring terminals, 1 x 0.2...1 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end; Spring terminals, 1 x 0.2...1 x 1.5 mm² (24 AWG...16 AWG) solid without cable end

Compatibility code

RSLZ

Clamping force

10…40 N

Fixing mode

Plastic compression spring (35 mm symmetrical DIN rail)

[Uimp] rated impulse withstand voltage

3.6 kV

Overvoltage category

III

Pollution degree

3

Sale per indivisible quantity

10

CAD overall width

6.2 mm

CAD overall height

78.6 mm

CAD overall depth

101 mm

Product weight

0.023 kg

IP degree of protection

IP20 conforming to IEC 60529

Standards

UL 508; IEC 61984

Product certifications

GOST; CSA

Marking

CE

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

-40…70 °C

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

300

Country of origin

CN

Warranty (in months)

18

Mounting method

DIN rail (top hat rail) 35 mm

Width

6.2 mm

Height

78.6 mm

Depth

101 mm

With detachable clamps

No

Function extension possible

No

Type of electric connection

Spring clamp connection

Number of pins

5

HS Code

8536.69
