SWM Bracket H800MM (NSYCOCN80)
Pricing
Request a quote
We reply within 24 hours
Product Description

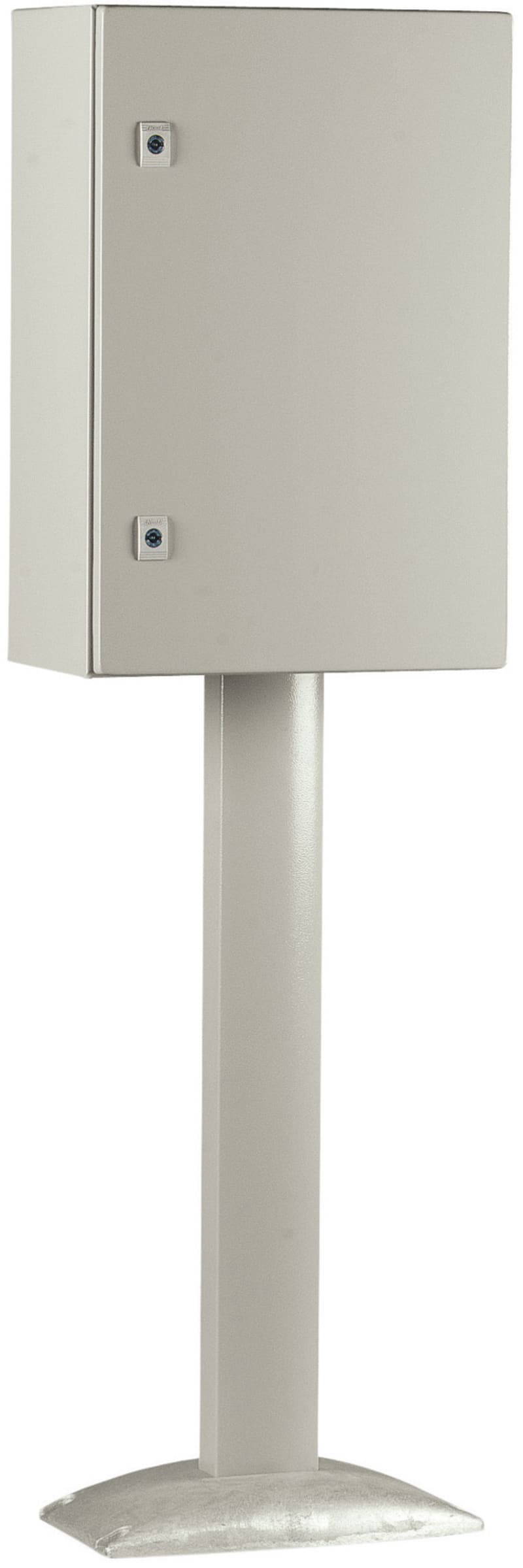

Schneider Electric NSYCOCN80 SWM BRACKET H800mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCOCN80
- EAN / GTIN
- 3606480211669
- Sales unit
- pcs
- Package quantity
- 32 pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Support pillar device
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- Bottom face of the enclosure
- Mounting support
- With adaptation plate
- Range compatibility
- PanelSeT S3D; PanelSeT CRN
- Device composition
- fixing elements; 1 support pillar
- Quantity per set
- Set of 1
- Material
- Extruded aluminium
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By fixing element - on adaptation plate location
- Height
- Nominal: 800 mm; Foot height: 743 mm; Base height: 55 mm
- Width
- Base width: 370 mm; Fixing centers to floor: 330 mm; Foot width: 102 mm
- Depth
- Base depth : 250 mm; Fixing centers to floor : 160 mm; Foot depth : 65 mm
- Product weight
- 3.8 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 14.730 cm
- Package 1 Width
- 27.110 cm
- Package 1 Length
- 76.200 cm
- Package 1 Weight
- 4.010 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 32
- Package 2 Height
- 106.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 138.320 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- RAL-number
- 7035
Standards & Compliance
- HS Code
- 7616.99
Cross References
- EAN 3606480211669
- SAP 1000488797
- Code 8602015
Product Documentation
