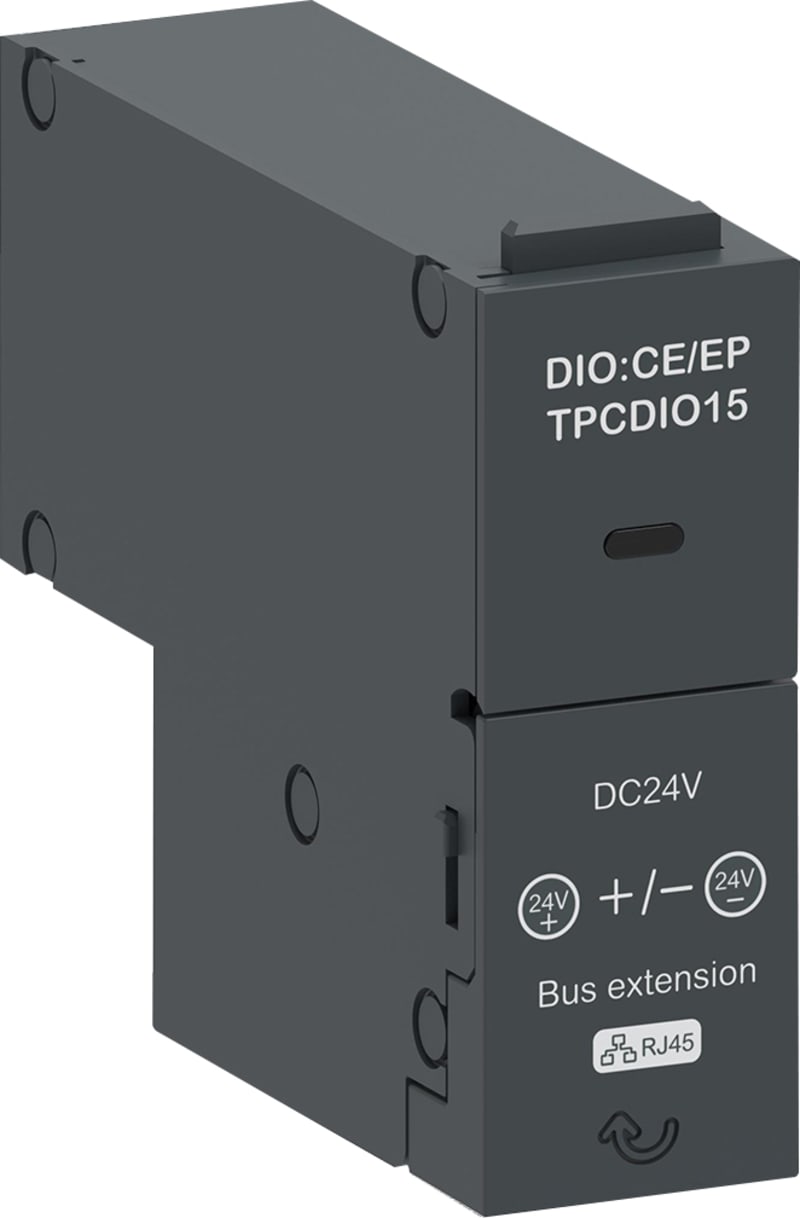

Schneider Electric function module, TransferPacT, BUS extension and 24VDC auxiliary supply TPCDIO15

Schneider Electric TPCDIO15 Function Module-for TransferPacT Active Automatic-BUS extension for eksternt HMI and DC 24V- reserve.

Manufacturer part number (MPN)

TPCDIO15

EAN / GTIN

3606481066053

Sales unit

pcs

Package quantity

20 pcs

Range of product

TransferPacT

Product or component type

I/O module

Device application

Signalling

Auxiliary contact composition

Without

Signalling function

CAN extension (connect to external HMI)

Auxiliary connection terminal

Screw clamp terminal 0.05…2.6 mm²

mounting mode

Plug-in

Mounting position

Left-bottom

Maximum input current

1 A 24 V DC +/- 20 %

[Ui] rated insulation voltage

30 V DC

Tightening torque

0.6 N.m +/- 0.1 N.m

Height

56.5 mm

Width

20 mm

Depth

69 mm

Accessory / separate part category

Signalling accessory

IP degree of protection

IP20

Pollution degree

3

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.000 cm

Package 1 Width

5.700 cm

Package 1 Length

6.900 cm

Package 1 Weight

140.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

20

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

3.300 kg

Country of origin

CN

Warranty (in months)

18

• EAN 3606481066053
• SAP 1200586049
• Code 82956279
