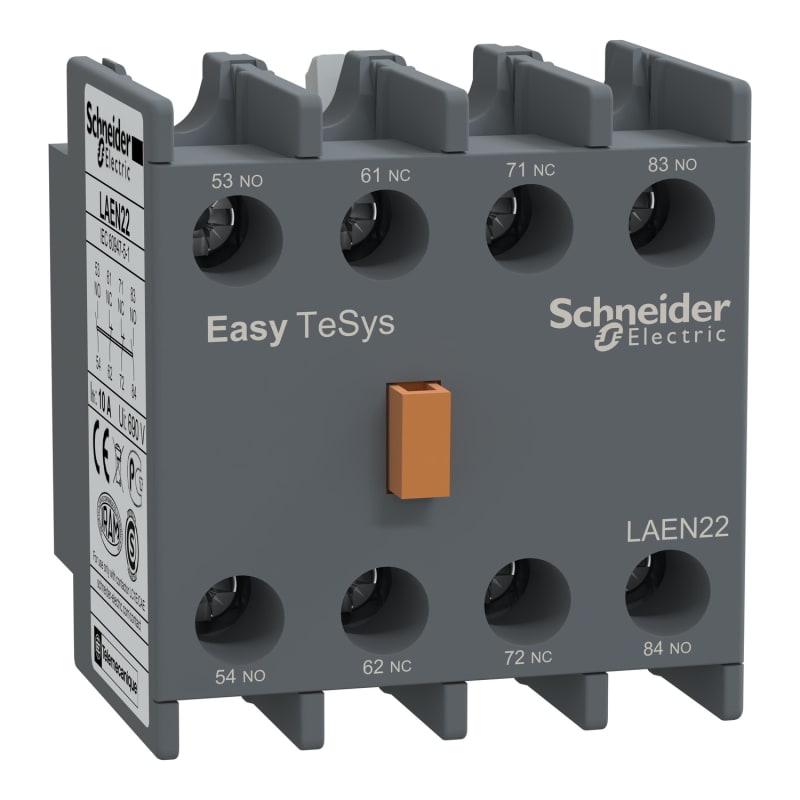

Auxiliary Contact Block, Easy TeSys, 2NO+2NC

Schneider Electric LAEN22 Auxiliary Contact Block, Easy TeSys, 2NO+2NC for LC1E contactors.

Manufacturer part number (MPN)

LAEN22 EAN / GTIN: 3606480325281 Sales unit: pcs Package quantity: 72 pcs Contact configuration: 2 NO + 2 NC Range: Easy TeSys Range of product: Easy TeSys Control Product or component type: Auxiliary contact block Device application: Signalling Device short name: LAEN Mounting location: Front Auxiliary contacts operation: Instantaneous Range compatibility: EasyPact EasyPact TVS LC1E Pole contact composition: 2 NO + 2 NC [Ui] rated insulation voltage: 690 V - for control circuit conforming to IEC 60947-5-1 [Ue] rated operational voltage: <= 690 V [Ith] conventional free air thermal current: 8 A (at 60 °C) Irms rated making capacity: 140 A AC conforming to IEC 60947-5-1 [Icw] rated short-time withstand current: 100 A - 1 s; 120 A - 500 ms; 140 A - 100 ms Protection type: GG fuse 10 A Mechanical durability: 10 Mcycles minimum switching current: 5 mA minimum switching voltage: 17 V Non-overlap time: 1.5 ms on energisation no overlap between NC and NO contact; 1.5 ms on de-energisation no overlap between NC and NO contact Insulation resistance: > 10 MOhm Connections - terminals: Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end; Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end; Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end; Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end Product weight: 0.06 kg Colour: Grey (RAL 7011) Standards: EN/IEC 60947-1; EN/IEC 60947-5-1; GB/T 14048.1; GB/T 14048.5; EN/IEC 60335-1:Clause 30.2; EN/IEC 60335-2-40:Annex JJ Product certifications: CB Scheme; CCC; CE; EAC IP degree of protection: IP20 conforming to IEC 60529 Protective treatment: TH conforming to IEC 60068 Ambient air temperature for operation: -5…55 °C Ambient air temperature for storage: -60…80 °C Operating altitude: 3000 m without derating Environmental characteristic: Standard environment Number of Units in Package 1: 1 Number of Units in Package 2: 72 Warranty (in months): 18 Country of origin: China

HS Code

8536.50

• EAN 3606480325281
• SAP 1200899850
• Code 84173039
