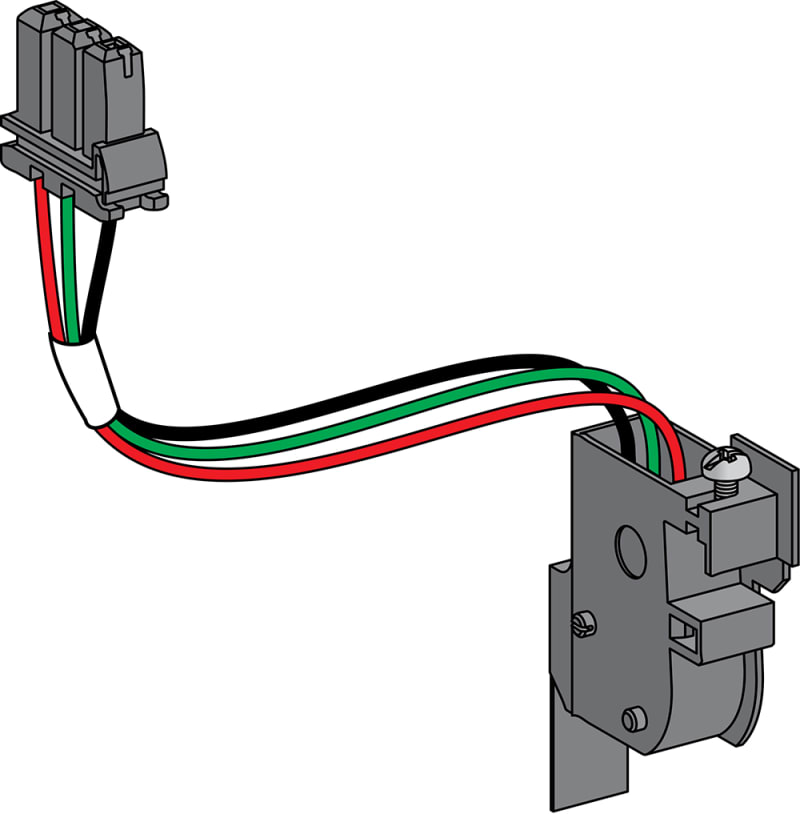

Schneider Electric MN undervoltage release, standard, Masterpact MTZ1/2/3, 100/130 VAC 50/60 Hz, 100/130 VDC, spare part LV833670SP

Schneider Electric LV833670SP Undervoltage coil MN 100/130 VAC/DC for Masterpact MTZ, reserve.

Manufacturer part number (MPN)

LV833670SP

EAN / GTIN

3606480932595

Sales unit

pcs

Package quantity

10 pcs

Maximum response time

45 ms on opening for MasterPact MTZ1; 95 ms on opening for MasterPact MTZ2; 95 ms on opening for MasterPact MTZ3

Range

MasterPact

Device short name

MN

Product or component type

Undervoltage release

Device application

Safety

Range compatibility

Masterpact MasterPact MTZ1 circuit breaker; Masterpact MasterPact MTZ2 circuit breaker; Masterpact MasterPact MTZ3 circuit breaker

Voltage release type

Instantaneous

Control type

Standard

[Un] voltage power supply

100...130 V AC 50/60 Hz; 100...130 V DC

Threshold tripping voltage

0.35...0.7 Un opening; 0.85 Un closing

Holding power consumption

4.5 W

Circuit breaker mounting mode

Fixed/drawout

Provided equipment

1 instruction sheet

Offer type

Spare part

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.5 cm

Package 1 Width

6.0 cm

Package 1 Length

8.5 cm

Package 1 Weight

211.0 g

Unit Type of Package 2

S03

Number of Units in Package 2

10

Package 2 Height

30.0 cm

Package 2 Width

30.0 cm

Package 2 Length

40.0 cm

Package 2 Weight

2.533 kg

Country of origin

FR

Warranty (in months)

18

Delayed

No

Suitable for off-load switch

Yes

Suitable for overload relay

No

Type of electric connection

Flat plug-in connection

Rated control supply voltage AC 50 Hz

100–130 V

Rated control supply voltage AC 60 Hz

100–130 V

Rated control supply voltage DC

100–130 V

Suitable for motor safety switch

Yes

Suitable for power circuit breaker

Yes

Voltage type for actuating

AC/DC

HS Code

8536.30

• EAN 3606480932595
• SAP 1200050872
• Code 81878725
