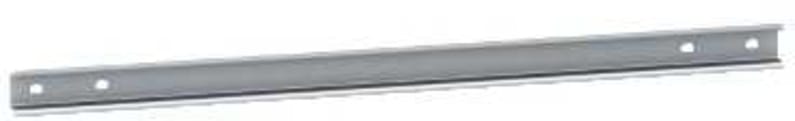

Schneider Electric One symmetric mounting rail 35X15 L500MM type A - Wall mounting - Supply: 20 NSYSDR50A
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSDR50A S.DIN rail15x35 WM 500mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSDR50A
- EAN / GTIN
- 3606480184376
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Anwendung
- Multi-purpose
- Range
- PanelSeT
- Product or component type
- Rail
- Accessory / separate part category
- Mounting accessory
- Type of rail
- Symmetrical DIN
- Enclosure nominal dimensions
- -
- Range compatibility
- PanelSeT CRN; PanelSeT S3D; PanelSeT PLM
- Device composition
- fixing elements; 1 rail
- Quantity per set
- Set of 20
- Material
- Zinc coated steel
- Surface finish
- Zinc coated
- Fixing mode
- By fixing element - structure of enclosure location
- Adjustment
- Continuous adjustment; Pitch 25 mm
- Length
- Nominal: 500 mm; Real: 450 mm
- Height
- Nominal: 15 mm
- Width
- Nominal: 35 mm
- thickness
- 1.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.000 cm
- Package 1 Width
- 9.000 cm
- Package 1 Length
- 4.500 cm
- Package 1 Weight
- 318.000 g
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 10
- Package 2 Height
- 4.000 cm
- Package 2 Width
- 9.000 cm
- Package 2 Length
- 45.000 cm
- Package 2 Weight
- 3.188 kg
- Unit Type of Package 3
- PAL
- Number of Units in Package 3
- 120
- Package 3 Height
- 29.000 cm
- Package 3 Width
- 37.500 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 38.160 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- DIN rail (top hat rail) 35/15 mm
- Material thickness
- 1.5 mm
- Punch shape
- Round hole
- Drill hole distance centrically
- 425 mm
- Surface finishing
- Galvanised
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480184376
- SAP 1000470703
- Code 8114513
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Circuit breaker Masterpact MTZ1 16H1 - 1600 A - 3P fixed - w/o Micrologic LV847150
Schneider Electric

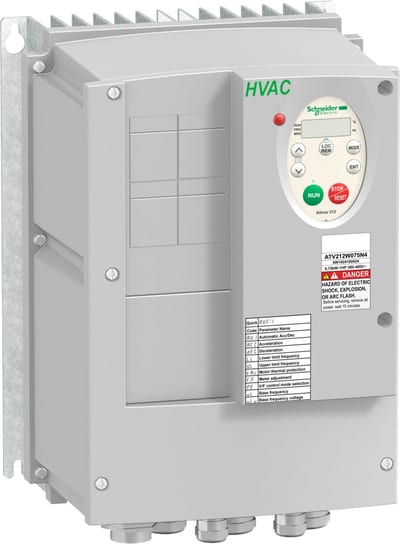

Schneider Electric variable speed drive ATV212 - 1.5kW - 2hp - 480V - 3PH - EMC class C1 - IP55 ATV212WU15N4C
Schneider Electric

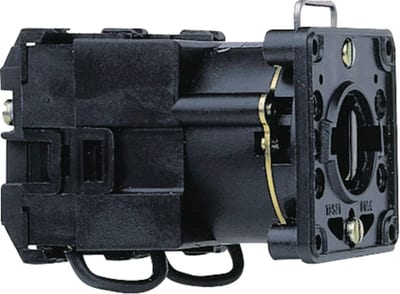

CAM Switch,Step Selector (K1H008N)
Schneider Electric

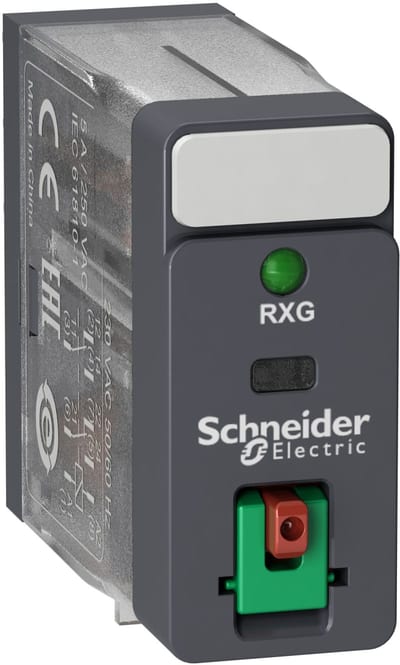

Schneider Electric Interface plug-in relay, 5 A, 2 CO, lockable test button, LED, 48 V AC RXG22E7
Schneider Electric

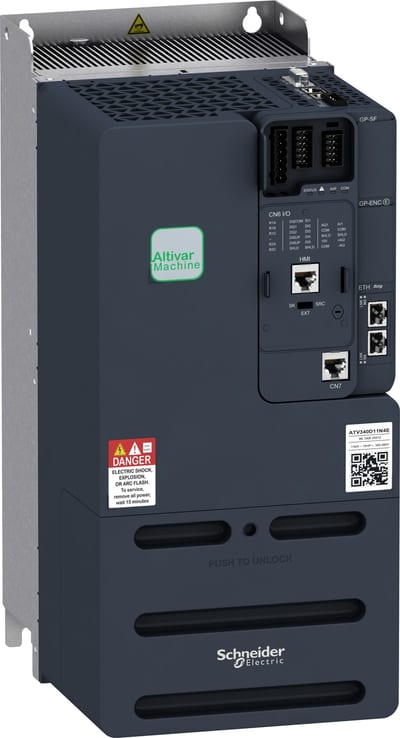

Schneider Electric variable speed drive - 18KW- 400V - 3 phases - ATV340 Ethernet ATV340D18N4E
Schneider Electric

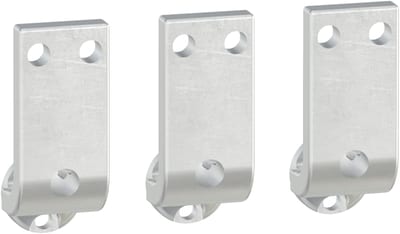

Frontilkobl. top MTZ1 fast 3P
LV847328
Schneider Electric

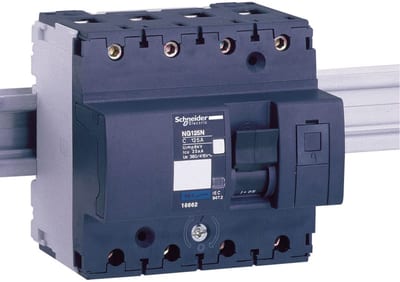

NG125L/C 20-4 Modular Power Switch
