Schneider Electric LSS900100 eConfigure KNX Small Licence with USB Dongle
Pricing
Request a quote
We reply within 24 hours
Product Description

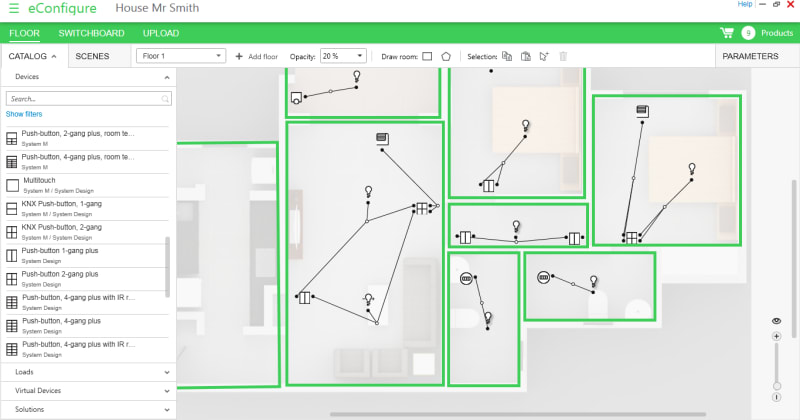

Schneider Electric LSS900100 eConfigure KNX Small is a single-station licence for a graphical KNX configuration tool, supplied as a USB dongle for use with Microsoft Windows 7 SP1 or later. The software supports configuration of up to 800 KNX bus devices, automatic installation of ETS5, and produces installation, customer, and maintenance reports. Typical applications include commissioning and maintaining KNX building automation in small commercial and residential projects.
Technical Specifications
- Manufacturer part number (MPN)
- LSS900100
- EAN / GTIN
- 3606481192516
- Sales unit
- pcs
- Package quantity
- 28 pcs
- Range
- KNX
- Product or component type
- License
- Device application
- Building automation systems; Contributes to the overall performance of the functional installation
- Software type
- Configuration software; Updatable software
- Software designation
- Graphical programming tool
- Device composition
- USB drive; KNX donge
- Product destination
- KNX bus system; Switchboard
- Operating system
- Microsoft Windows 7 SP1
- Type of license
- single (1 station)
- Software version
- V1.0
- Market segment
- Small commercial; Residential; Small buildings
- Maximum of configurable devices
- 800 bus KNX
- Communication port protocol
- KNX
- Software function
- Editing the equipment configuration; Operating/Status report; User-defined tables and reports; Reports and diagrams; Installation report; Customer report; Periodical diagram/reports; Editing tools an editing functions
- Function available
- 8 floors creation; Automatic installation of ETS5; Online help; Configurable for supervised input monitoring
- Stages of the project configuration
- Installation / commissioning; Design; Operation / maintenance; Optimize
- Provided tabs
- Scenes label; Catalogue of devices and solutions; Toolbar; Floor plan; Parameters
- Control and visualisation types
- Smartphone or tablet; By mobile application; Local control; Touch screen
- Format
- Dongle
- Connector type
- USB
- Cabling termination destination
- PC USB port
- Range compatibility
- KNX push-button; KNX push-button interface; KNX push-button pro; KNX thermostat; KNX multi-touch screen; KNX presence detector; KNX sensor; KNX movement detector; KNX valve drive; KNX actuator; KNX controller
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.800 cm
- Package 1 Width
- 10.700 cm
- Package 1 Length
- 16.800 cm
- Package 1 Weight
- 123.000 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 28
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 3.884 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Planning-/put into operation software
- Language
- English
- Other bus systems
- None
Standards & Compliance
- HS Code
- 4911.99
Cross References
- EAN 3606481192516
- SAP 1200026110
- Code 81443956
