Schneider Electric

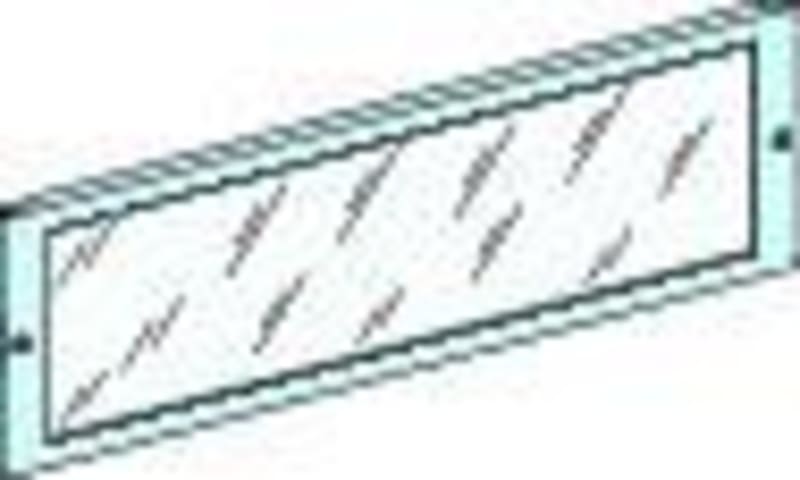

Transparent Front plate 4MOD. PrismaSeT G/P
Part numberLVS03342EAN / GTIN3606481873729HS code7326.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03342 Transparent Front plate 4 Modules PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03342
- EAN / GTIN
- 3606481873729
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Transparent
- Installed device
- TeSys: fixed TeSys U - horizontal installation; TeSys: fixed GV2 + D or K contactors <= 40 A - horizontal installation; PowerLogic: iEM3000; PowerLogic: PM3000
- Poles description
- 9 x 3P: modular rail support: TeSys U horizontal installation; 9 x 3P: modular rail support: GV2 + D or K contactors <= 40 A horizontal installation
- Operating position
- Horizontal
- Enclosure/cubicle description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 650 mm depth 400 mm; Pack enclosure - width 555 mm
- Connection position
- Direct connection
- Number of vertical modules [50 mm]
- 4
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Material
- Glass
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 200 mm
- Product weight
- 0.98 kg
- Quantity per set
- Set of 1
- functional unit
- 600 mm PrismaSeT G floor-standing enclosure TeSys GV2 + D or K contactors <= 40 A fixed horizontal 3P 9 direct 5; 600 mm PrismaSeT G wall-mounted enclosure TeSys GV2 + D or K contactors <= 40 A fixed horizontal 3P 9 direct 5; 650 mm 400 mm PrismaSeT P cubicle TeSys GV2 + D or K contactors <= 40 A fixed horizontal 3P 9 direct 5; 650 mm 400 mm PrismaSeT P cubicle PowerLogic 3 4; 650 mm 400 mm PrismaSeT P cubicle PowerLogic 4 4; 600 mm PrismaSeT G floor-standing enclosure TeSys TeSys U fixed horizontal 3P 9 direct 5; 600 mm PrismaSeT G wall-mounted enclosure TeSys TeSys U fixed horizontal 3P 9 direct 5; 600 mm PrismaSeT G floor-standing enclosure TeSys TeSys U fixed horizontal 3P 9 direct 4; 600 mm PrismaSeT G wall-mounted enclosure TeSys TeSys U fixed horizontal 3P 9 direct 4; 650 mm 400 mm PrismaSeT P cubicle TeSys TeSys U fixed horizontal 3P 9 direct 4
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 21.500 cm
- Package 1 Length
- 51.500 cm
- Package 1 Weight
- 1.042 kg
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 8
- Package 2 Height
- 16.000 cm
- Package 2 Width
- 23.000 cm
- Package 2 Length
- 53.000 cm
- Package 2 Weight
- 8.550 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 64
- Package 3 Height
- 36.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 80.688 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 600 mm
- Number of height units
- 4
- Surface finishing
- Untreated
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481873729
- SAP 1200546656
- Code 82880437
