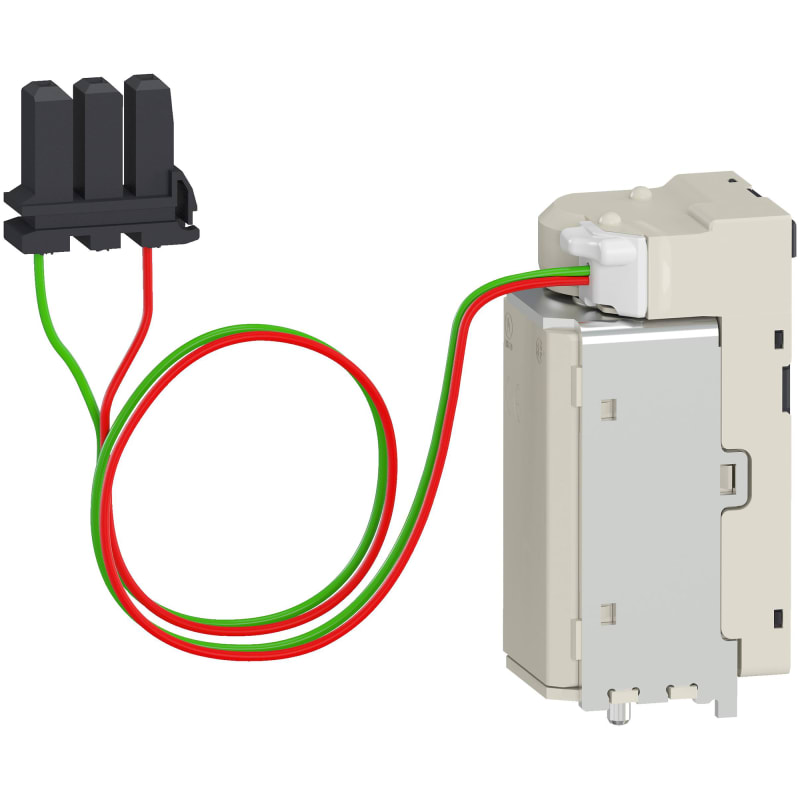

COIL MX 200/250VDC AC - Drawout MTZ1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV833813 Utspole MX 200/250VAC/DC for Masterpact circuit breaker MTZ1 withdrawable.
Technical Specifications
- Manufacturer part number (MPN)
- LV833813
- EAN / GTIN
- 3606480814907
- HS code
- 8536.90
- Sales unit
- pcs
- Range
- MasterPact
- Device short name
- MX
- Product or component type
- Voltage release
- Device application
- Control
- Range compatibility
- Masterpact MasterPact MTZ1 circuit-breaker
- Voltage release type
- Opening coil
- Control type
- Standard
- [Un] voltage power supply
- 200...250 V AC 50/60 Hz; 200...250 V DC
- Threshold tripping voltage
- 0.7...1.1 Un on opening
- Holding power consumption
- 4.5 W
- Circuit breaker mounting mode
- Drawout
- Maximum response time
- 60 ms on opening for MasterPact MTZ1
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.5 cm
- Package 1 Width
- 6.5 cm
- Package 1 Length
- 8.5 cm
- Package 1 Weight
- 1.167 kg
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480814907
- SAP 1200497677
- Code 82639232
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Spring socket equipped with LED and protection circuit, 12...24 V AC/DC RSLZRA1
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 9A, 110V AC 50/60Hz coil, screw clamp terminals LC1D09F7
Schneider Electric
Transparent Front plate 4MOD. PrismaSeT G/P
LVS03342
Schneider Electric

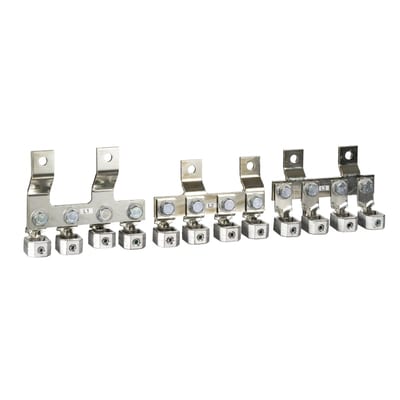

Terminals for ISFL1250 4X240MM2
LV480890
Schneider Electric

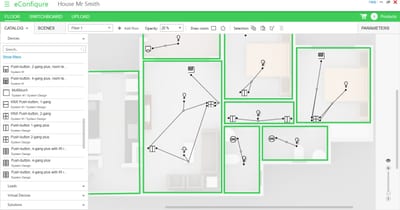

Schneider Electric LSS900100 eConfigure KNX Small Licence with USB Dongle
Schneider Electric

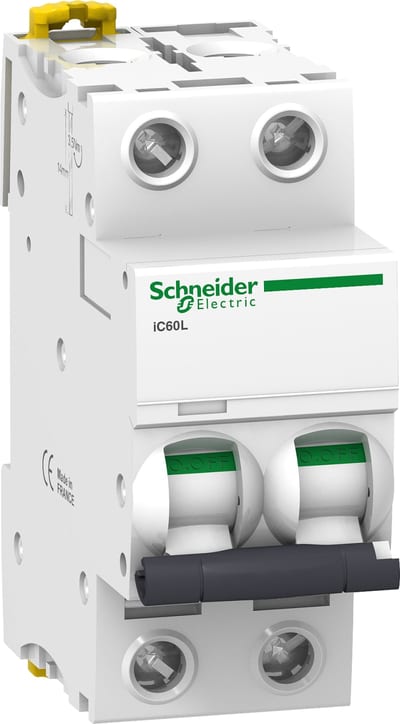

Schneider Electric A9F92206 ACTI9 IC60L Miniature Circuit Breaker 2P 6 A, Curve Z
