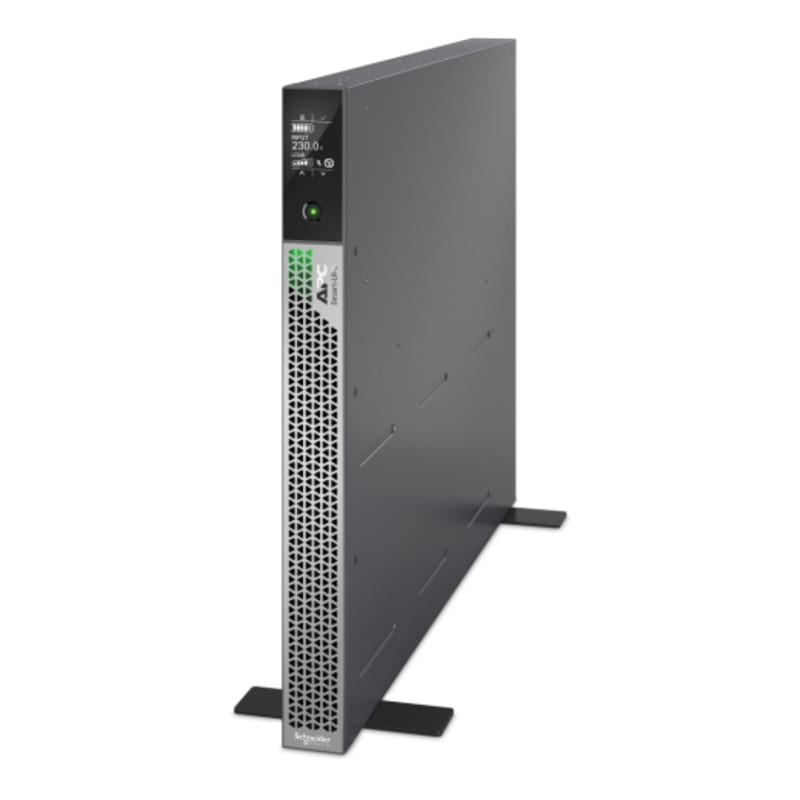

APC UPS SRTL Ultra 3KVA 1U
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SRTL3KRM1UIC APC UPS SRTL Ultra Li-Ion 3kVA 1U Rack/Tower, 230V, in:.
Technical Specifications
- Manufacturer part number (MPN)
- SRTL3KRM1UIC
- EAN / GTIN
- 0731304573555
- Sales unit
- pcs
- Presentation
- Ultra high density on-line power protection with scalable runtime supported by Lithium-Ion batteries.
- Main input voltage
- 230 V AC 1 phase
- Other input voltage
- 230 V
- Input connection
- BS 1363 British; IEC 60320 C20; CEE 7/7
- Efficiency at full load
- 160...275 V adjustable (half load)
- Input frequency
- 50/60 Hz auto-sensing
- Output voltage
- 230 V AC 1 phase
- Other output voltage
- 230 V
- Rated power in W
- 3000 W
- Rated power in VA
- 3000 VA
- Output connection
- 3 IEC 60320 C13; 2 IEC 60320 C19
- Bypass type
- Internal bypass (automatic and manual)
- Crest factor
- 3 : 1
- Maximum configurable power in VA
- 3000 VA
- Maximum configurable power in W
- 3000 W
- Output harmonic distortion
- < 2% at 100% linear load and < 5% at 100% non-linear load
- UPS topology
- On-Line
- Waveform type
- Its wave
- Efficiency
- 98 %
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Replacement battery
- APCRBC173-LI
- Run Time
- View Runtime Graph
- Battery type
- Li-Ion (Lithium-Ion) internal included
- Control panel
- Touch screen LCD user interface
- Emergency power off
- Yes
- Alarm
- Audible and visible alarms : prioritized by severity
- UPS connectivity
- Serial port; USB port; SmartConnect port
- Surge energy rating
- 1600 J
- Number of rack unit
- 1U
- Cable length
- 2.4 m
- Number of cables
- 1
- Color
- Silver grey
- Height
- 43 mm
- Width
- 432 mm
- Depth
- 560 mm
- Product weight
- 15.9 kg
- Mounting preference
- No preference
- Mounting mode
- Rack-mounted with kit; Tower-mounted with kit
- Two post mountable
- 1
- USB compatible
- Yes
- Mounting position
- Horizontal; Vertical
- Provided equipment
- RJ45 cable; USB cable; Safety guide; Rack mounting brackets; Rack mounting support rails; Wall mounting brackets; Stabilization feet; Screws
- Additional specification
- High density
- Redundant
- No
- Range of product
- Smart-UPS Ultra
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; UKCA; UK PSTI
- Marking
- CE Mark; UKCA
- Standard
- EN/IEC 62040-1; EN/IEC 61000-4-8; EN/IEC 61000-4-6 level 3; EN/IEC 61000-4-2 level 3; EN/IEC 61000-4-3 level 3
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…15240 m
- IP protection
- IP20
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 55 dB
- Heat dissipation
- 325 Btu/h
- Operating altitude
- 0...10000 ft
- Battery voltage
- 50 V
- Extendable runtime
- 1
- Typical recharge time
- 1.5 h
- RBC quantity
- 1
- Battery design life
- 8…10 year(s)
- Battery life
- 8…10 year(s)
- Battery charging power
- 448 W
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 27.8 cm
- Package 1 Width
- 56.4 cm
- Package 1 Length
- 76.4 cm
- Package 1 Weight
- 24.2 kg
- Country of origin
- PH
- Warranty (in months)
- 60
