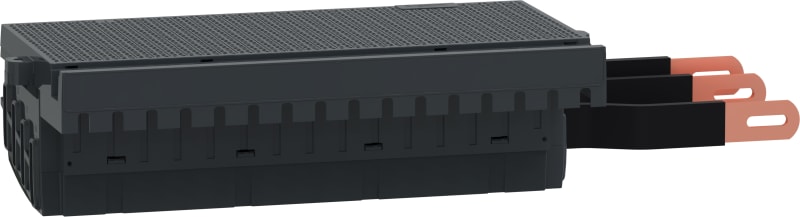

Busbar-LGY FC-with connection LGY/NSXM-3P-SET P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04410 Busbarblokk-Linergy FC(Polypact)-with connection for Linergy LGY-for NSXm-3P-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04410
- EAN / GTIN
- 3606481866585
- Sales unit
- pcs
- Number of poles
- 3
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Device feeder
- Product name
- Linergy FC
- Range compatibility
- PrismaSeT PrismaSeT P cubicle; ComPact ComPact NSXm circuit breaker
- Accessory / separate part category
- Connection accessory
- Provided equipment
- Prefabricated flexible connection to Linergy busbars
- Poles description
- 3P
- Installed device
- ComPact: fixed NSXm without earth leakage protection - vertical installation
- Number of devices
- 5 (3P)
- Installation direction
- Horizontal
- installation description
- Cubicle - width 650 mm
- Mounting support
- Mounting plate
- [Ui] rated insulation voltage
- 800 V AC
- [Uimp] rated impulse withstand voltage
- 8 kV
- [Ie] rated operational current
- 600 A at 35 °C
- [Ue] rated operational voltage
- 690 V
- [Ipk] rated peak withstand current
- 18 kA
- I²t on activation
- 4500000 A².s
- Permissible current
- 575 A at 40 °C: IP31; 525 A at 50 °C: IP31; 500 A at 40 °C: IP55; 450 A at 50 °C: IP55
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- KEMA; ASTA
- Quantity per set
- Set of 1
- Length
- 480 mm
- Height
- 132 mm
- Depth
- 235 mm
- Colour
- Black
- Connections - terminals
- Supply: flexible bars (phase) ; Outgoer: plug in (phase) , 5 outgoers
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 35
- Warranty (in months)
- 18
- Insulated
- Yes
- Number of phases
- 3
- Cross section
- 95 mm²
- Rated permanent current Iu
- 600 A
- Conditioned rated short-circuit current Iq
- 50 kA
- Rated surge voltage
- 8 kV
- Rated short-time withstand current lcw
- 18 kA
- Suitable for devices with auxiliary switch
- No
- Suitable for devices with N-conductor
- No
- Suitable for number of devices
- 5
- Max. rated operation voltage Ue
- 690 V
- Module width
- 27 mm
- Country of origin
- France
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606481866585
- SAP 1200547276
- Code 82880665
