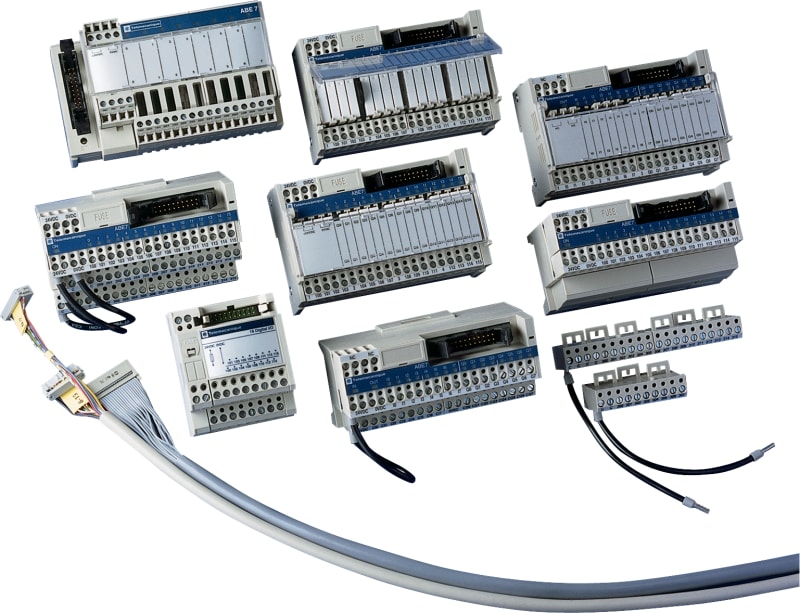

Schneider Electric sub-base - soldered electromechanical relays ABE7 - 8 channels - relay 10 mm ABE7R08S210

Schneider Electric sub-base - soldered electromechanical relays ABE7 - 8 channels - relay 10 mm ABE7R08S210 is listed under Control & Automation / Relays & Timers. HS code: 8536.90.

Manufacturer part number (MPN)

ABE7R08S210 EAN / GTIN: 3389110545265 HS code: 8536.90 Sales unit: pcs Package quantity: 9 pcs Range of product: Modicon ABE7 Product or component type: Electromechanical output relay sub-base [Us] rated supply voltage: 24 V DC for PLC end Number of channels: 8 Number of terminal per channel: 2 Terminal block type: Removable Polarity distribution: Volt-free Fixing mode: By clips (35 mm symmetrical DIN rail); By screws (solid plate with fixing kit) Maximum current per output common: 10 A Current per channel: 5 A for preactuator end minimum switching current: 10 mA at >= 5 V Drop-out voltage: 2.4 V at 20 °C (PLC end) Switching frequency: <= 0.5 Hz; <= 10 Hz Threshold tripping voltage: 19.7 V at 40 °C Drop-out current: 1 mA at 20 °C Maximum power dissipation per channel in W: 0.36 W (PLC end) Contacts type and composition: 1 NO for preactuator end Maximum switching voltage: 250 V AC 50/60 Hz conforming to IEC 60947-5-1; 30 V DC conforming to IEC 60947-5-1 Electrical durability: 500000 cycles, maximum switching current: 600 mA at 24 V DC-13 10 ms (preactuator end); 500000 cycles, maximum switching current: 1500 mA at 230 V AC-12 (preactuator end); 500000 cycles, maximum switching current: 1500 mA at 24 V DC-12 (preactuator end); 500000 cycles, maximum switching current: 900 mA at 230 V AC-15 (preactuator end) electrical reliability: 1e-008 Operating time: <= 10 ms coil energisation and NO closing; <= 5 ms coil de-energisation and NO opening Contact bounce time: <= 5 ms 1 NO Operating rate in Hz: 10 Hz no load; 0.5 Hz at Ie Mechanical durability: 20000000 cycles [Uimp] rated impulse withstand voltage: 2.5 kV conforming to IEC 60947-1 [Ui] rated insulation voltage: 2000 V Installation category: II conforming to IEC 60664-1 Tightening torque: 0.6 N.m with flat Ø 3.5 mm screwdriver Width: 125 mm Product weight: 0.448 kg Max immunity to microbreaks: 5 ms Dielectric strength: 2000 V conforming to IEC 60947-1 Product certifications: UL; DNV; CSA; GL; EAC IP degree of protection: IP2X conforming to IEC 60529 Protective treatment: TC Resistance to incandescent wire: 750 °C, extinction time <30 s conforming to IEC 60695-2-11 Shock resistance: 15 gn for 11 ms conforming to IEC 60068-2-27 Resistance to radiated fields: 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3 Resistance to fast transients: 2 kV level 3 conforming to IEC 61000-4-4 Ambient air temperature for operation: -5…60 °C conforming to IEC 61131-2 Ambient air temperature for storage: -40…80 °C conforming to IEC 61131-2 Pollution degree: 2 conforming to IEC 60664-1 Number of Units in Package 1: 1 Number of Units in Package 2: 9 Country of origin: LV Warranty (in months): 18

HS Code

8536.90

• EAN 3389110545265
• SAP 1000069039
• Code 8764196
