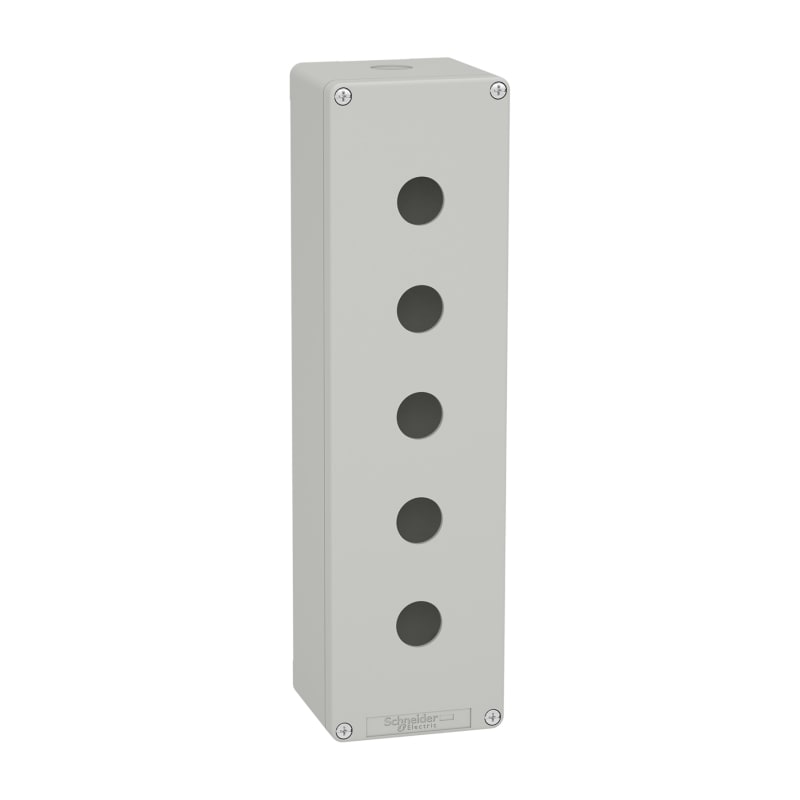

Schneider Electric Die cast empty control station, Harmony XAP, XB2 SL, aluminium, grey, M32, 5 cut outs 22mm, 85X310X77MM XAPD5505
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XAPD5505 Push-Button Station empty in light grey metal with 5 x Ø22 mm holes and 1 x M32 cable gland 310 x 80 x 77 mm.
Technical Specifications
- Manufacturer part number (MPN)
- XAPD5505
- EAN / GTIN
- 3389119013048
- Sales unit
- pcs
- Diameter
- 22 mm
- Range of product
- Harmony XAP
- Product or component type
- Die-cast empty control station
- Device short name
- XAPD
- Product destination
- For Ø 22 mm control and signalling units
- Product front plate size
- 85 x 310 mm
- Usable depth
- 74.5 mm
- Number of cut-out
- 5 cut-outs
- Colour of base of enclosure
- Grey (RAL 7035)
- Colour of cover
- Grey (RAL 7035)
- Material
- Die cast aluminium
- Sale per indivisible quantity
- 1
- IP degree of protection
- IP65 conforming to EN/IEC 60529 and EN/IEC 60947-5-1; IP66 conforming to EN/IEC 60529 and EN/IEC 60947-5-1; IP69 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
- Number of vertical rows
- 1
- Number of horizontal rows
- 5
- Cut-out dimensions
- Ø 22 mm
- Control station type
- Metal
- Cable entry
- 1 x cable gland conforming to ISO
- Thread type
- M32 x 1.5
- CAD overall width
- 85 mm
- CAD overall height
- 310 mm
- CAD overall depth
- 77 mm
- Product weight
- 0.81 kg
- Protective treatment
- TC
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…70 °C
- Electrical shock protection class
- Class I conforming to IEC 61140
- IK degree of protection
- IK06 conforming to IEC 62262
- Resistance to chemical agents
- Special treatment can be obtained on request
- Product certifications
- EAC
- Number of Units in Package 1
- 1
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 85 mm
- Height
- 310 mm
- Depth
- 77 mm
- Diameter openings
- 22.5 mm
- Number of command positions
- 5
- Colour housing cover
- Grey
- Housing material
- Aluminium
- Construction type housing
- Surface mounted housing
Standards & Compliance
- HS Code
- 7616.99
Cross References
- EAN 3389119013048
- SAP 1200589398
- Code 82960784
Product Documentation
More from Schneider Electric
Schneider Electric
END Ferrule 1,5 mm² DIN
DZ5CE015D
Schneider Electric

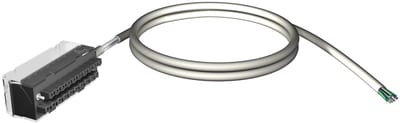

M340 Cable FTB 20 LED, 10M
BMXFTW1001
Schneider Electric

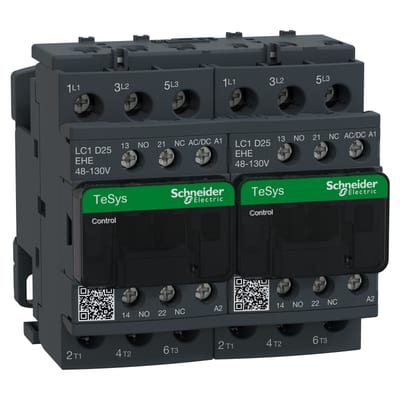

Schneider Electric LC2D25EHE TeSys Deca Reversing Contactor, 3-Pole 25 A AC-3, 48–130 V AC/DC Coil
Schneider Electric

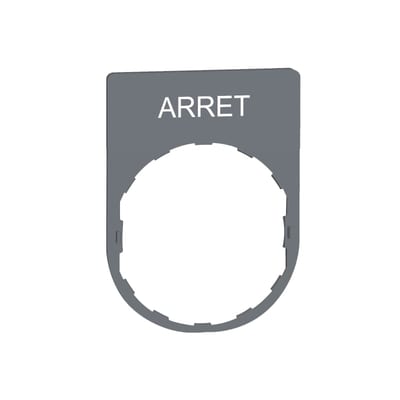

Sign in grey plastic with text "ARRET"
ZBYP2104C0
Schneider Electric

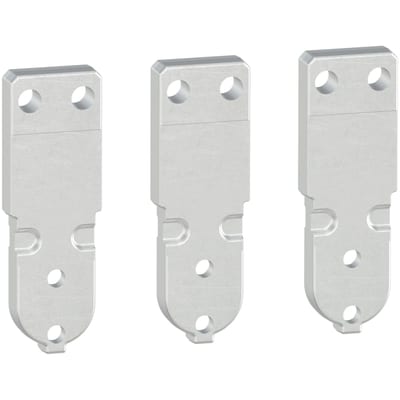

6 Front Connection KIT - D/O MTZ1 NSX
LV833588SP
Schneider Electric

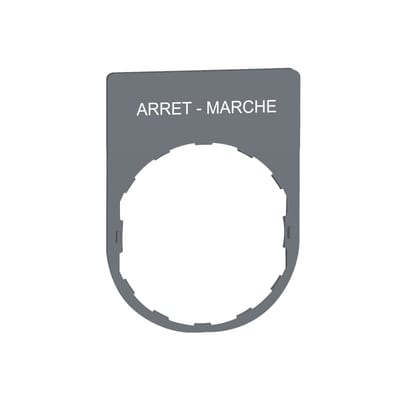

Sign in grey plastic text "ARRET-MARCHE"
ZBYP2166C0
Schneider Electric

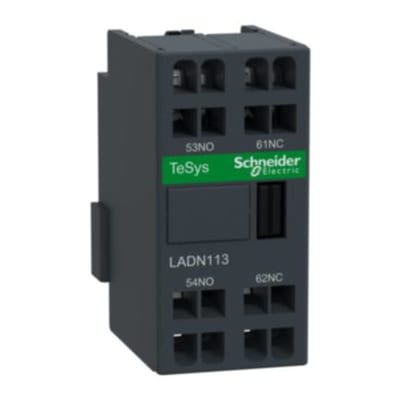

Schneider Electric Auxiliary contact block, TeSys D, 1NO + 1NC, front mounting, spring terminals LADN113
Schneider Electric

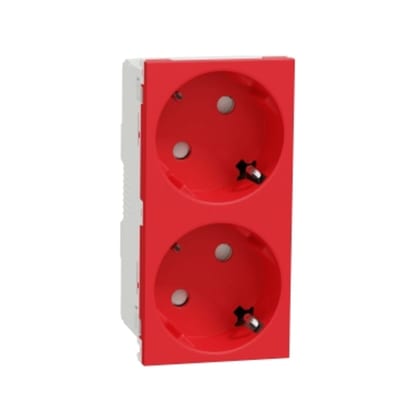

Schneider Electric NU306603 2-Way Socket Outlet 2P+E Push-In Clamp Red
