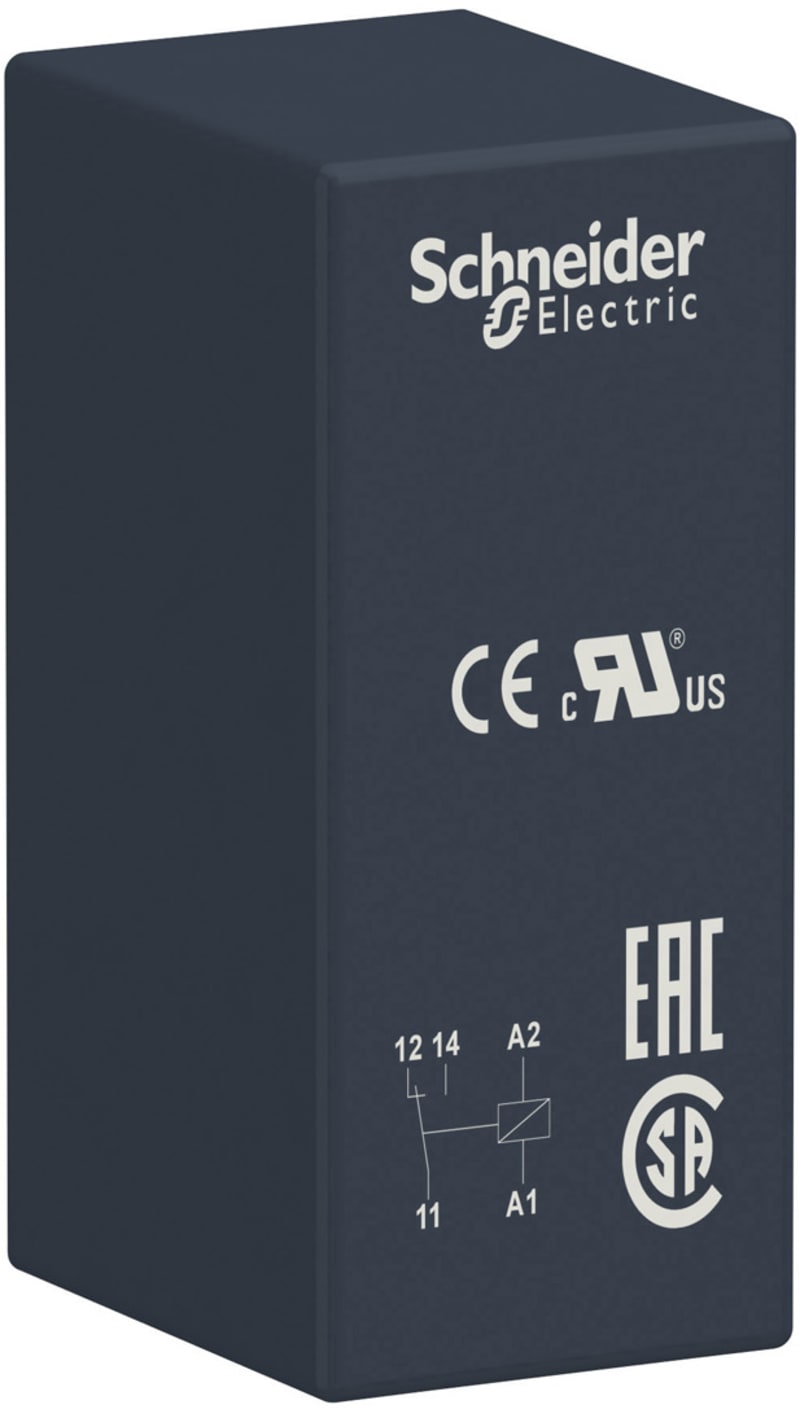

Schneider Electric Interface plug-in relay, 12 A, 1 CO, 24 V AC RSB1A120B7

Schneider Electric RSB1A120B7 InterfACerelé 1C/O 12A 24VAC.

Manufacturer part number (MPN)

RSB1A120B7 EAN / GTIN: 3389110256710 HS code: 8536.90 Sales unit: pcs Package quantity: 10 pcs Voltage: 24 V AC Range of product: Harmony Electromechanical Relays Series name: RSB series Product or component type: Plug-in relay Relay type: Interface relay Contacts type and composition: 1 C/O status LED: Without [Uc] control circuit voltage: 24 V AC 50/60 Hz Control type: Without lockable test button [Ithe] conventional enclosed thermal current: 12 A at -40…40 °C Average resistance: 368 Ohm network: AC at 20 °C +/- 10 % [Ue] rated operational voltage: 19.2...36 V AC 50/60 Hz [Uimp] rated impulse withstand voltage: 3.6 kV conforming to IEC 61000-4-5 [Ie] rated operational current: 12 A (AC-1/DC-1) NO conforming to IEC; 6 A (AC-1/DC-1) NC conforming to IEC [Ui] rated insulation voltage: 400 V conforming to IEC 60947 Maximum switching voltage: 300 V DC conforming to IEC Drop-out voltage threshold: >= 0.15 Uc AC Load current: 12 A at 250 V AC; 12 A at 28 V DC minimum switching current: 10 mA Maximum switching capacity: 3000 VA/336 W minimum switching voltage: 12 V minimum switching capacity: 120 mW at 10 mA, 12 V Operating time: 20 ms operating; 20 ms reset Mechanical durability: 10000000 cycles Electrical durability: 100000 cycles, 12 A at 250 V, AC-1 NO; 100000 cycles, 6 A at 250 V, AC-1 NC Safety reliability data: B10d = 100000 Operating rate: <= 600 cycles/hour under load; <= 18000 cycles/hour no-load Average coil consumption: 0.75 VA AC Removable legend: Without Protection category: RT I Operating position: Any position Test levels: Level A group mounting Device presentation: Complete product Sale per indivisible quantity: 10 Contacts material: Silver alloy (AgNi) Shape of pin: Flat (PCB type) Product weight: 0.014 kg Compatibility code: RSB Dielectric strength: 1000 V AC between contacts; 2500 V AC between poles; 5000 V AC between coil and contact Vibration resistance: +/- 1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6 IP degree of protection: IP40 conforming to IEC 60529 Ambient air temperature for operation: -40…70 °C (AC) Standards: CSA C22.2 No 14; IEC 61810-1; UL 508 Product certifications: EAC; UL; CSA Marking: CE Ambient air temperature for storage: -40…85 °C Shock resistance: 10 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27; 5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27 Country of origin: AT Warranty (in months): 18

HS Code

8536.90

• EAN 3389110256710
• SAP 1000021531
• Code 8166800
