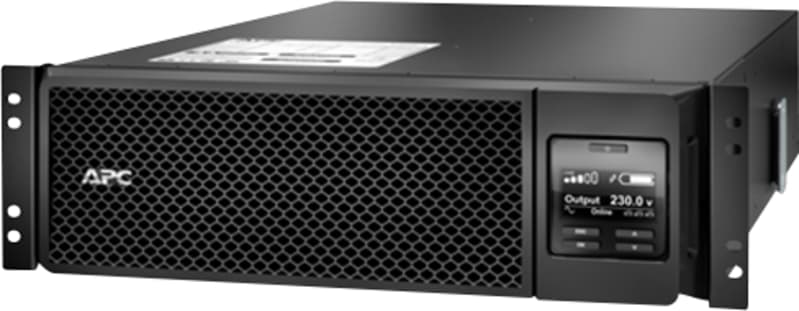

Schneider Electric APC Smart-UPS On-Line, 5KVA, Rackmount 3U, 230V, 6X C13+4X C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit SRT5KRMXLI
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SRT5KRMXLI APC -UPS SRT 5kVA, Rack 3U, 230V, in:1P+N+J out:6x C13 4x C19, nettverkskort, expandable,rail kit.
Technical Specifications
- Manufacturer part number (MPN)
- SRT5KRMXLI
- EAN / GTIN
- 0731304301196
- Sales unit
- pcs
- Voltage
- 230 V
- Presentation
- High density, double-conversion on-line power protection with scalable runtime.
- Main input voltage
- 230 V AC 1 phase
- Other input voltage
- 220 V; 240 V
- Input connection
- IEC 60320 Hard Wire 3-wire
- Efficiency at full load
- 100...275 V adjustable (half load)
- Input frequency
- 40...70 Hz auto-sensing
- Output voltage
- 230 V AC 1 phase
- Other output voltage
- 220 V; 240 V
- Rated power in W
- 4500 W
- Rated power in VA
- 5000 VA
- Output connection
- 6 IEC 60320; 2 IEC Jumpers; 4 IEC 60320
- Bypass type
- Internal bypass (automatic and manual)
- Crest factor
- 3 : 1
- Harmonic distortion
- Less than 2 %
- Maximum configurable power in VA
- 5000 VA
- Maximum configurable power in W
- 4500 W
- UPS topology
- On-Line
- Waveform type
- Its wave
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Replacement battery
- APCRBC140
- Run Time
- View Runtime Graph
- Efficiency
- View Efficiency Graph
- Battery type
- Lead-acid internal included
- Emergency power off
- Yes
- Free slot
- 1
- Preinstalled device
- Network management card 3 with environmental monitoring
- Alarm
- Audible and visible alarms : prioritized by severity
- UPS connectivity
- Serial port; USB port; Pre-installed network management card 3
- Surge energy rating
- 480 J
- Number of rack unit
- 3U
- Number of cables
- 2
- Color
- Black
- Height
- 130 mm
- Width
- 432 mm
- Depth
- 719.4 mm
- Product weight
- 54.43 kg
- Mounting location
- Front
- Mounting preference
- Lower
- Mounting mode
- Rack-mounted
- Two post mountable
- 0
- USB compatible
- Yes
- Mounting position
- Horizontal
- Provided equipment
- Documentation CD; Installation guide; Rack mounting hardware; Rack mounting brackets; Rack mounting support rails; Temperature probe; Warranty card; Web/SNMP management card
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Additional specification
- High density
- Redundant
- No
- Range of product
- Smart-UPS On-Line
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; EAC; IRAM; RCM; VDE
- Marking
- CE Mark
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…15240 m
- IP protection
- IP20
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 55 dBA
- Heat dissipation
- 931 Btu/h
- Operating altitude
- 0...10000 ft
- Battery voltage
- 192 V
- Extendable runtime
- 1
- Included battery module
- 0
- Typical recharge time
- 1.5 h
- RBC quantity
- 1
- Battery life
- 3…5 year(s)
- Battery charging power
- 560 W rated
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 2
- Country of origin
- PH
- Warranty (in months)
- 36 UPS|24 Battery
