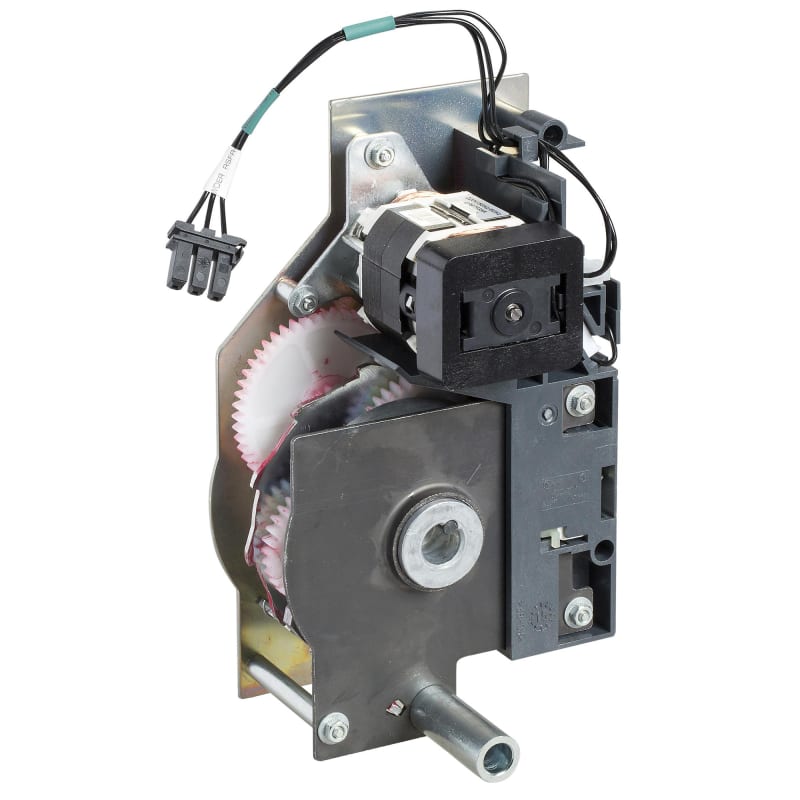

Schneider Electric electric motor MCH, MasterPact MTZ1, spare part, 200/240 V AC 50/60 Hz LV833177SP
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV833177SP MCH motor 200/240VAC for Masterpact circuit breaker MTZ1, spare part.
Technical Specifications
- Manufacturer part number (MPN)
- LV833177SP
- EAN / GTIN
- 3606481186300
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Range
- MasterPact
- Device short name
- MCH
- Product or component type
- Motor mechanism
- Device application
- Control
- Range compatibility
- Masterpact MasterPact MTZ1
- Control type
- Standard
- [Uc] control circuit voltage
- 200...240 V AC 50/60 Hz
- Threshold tripping voltage
- 0.85...1.1 Un
- Maximum power consumption in VA
- 180 VA
- Overcurrent protection
- 2...3 x In 0.1 s
- Maximum charging time
- 3 s
- Maximum operating frequency
- <= 3 cycles per minute
- provided contact
- Limit switch contact at 240 V 10 A
- Provided equipment
- 1 instruction sheet
- Offer type
- Spare part
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481186300
- SAP 1200497897
- Code 82639601
Product Documentation
More from Schneider Electric
Schneider Electric

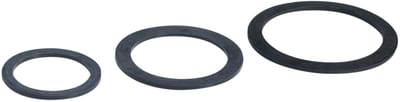

Schneider Electric Mureva BOX - gasket - black - M16 IMT36152
Schneider Electric

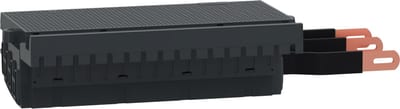

Busbar-LGY FC-with connection LGY/NSXM-3P-SET P
LVS04410
Schneider Electric

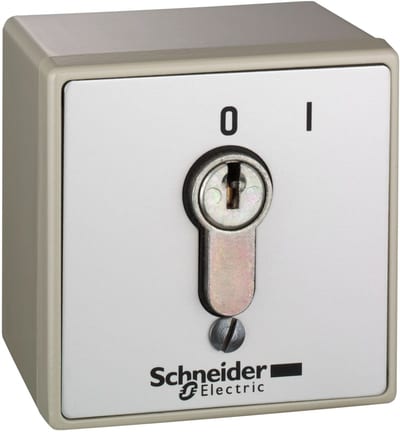

Schneider Electric vandal resistant surface mounted control station - XAP-S - lock XAPS11111N
Schneider Electric

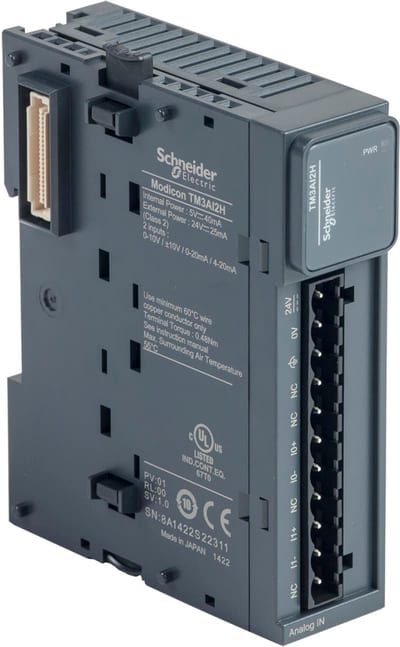

Schneider Electric Modicon TM3 - 2 analog inputs high resolution (screw) 24VDC TM3AI2H
Schneider Electric

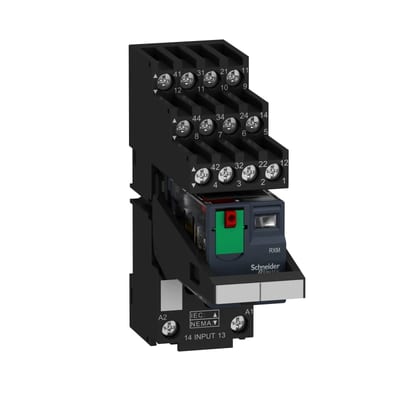

RXM relay with plinth 6A 24VAC
RXM4AB2B7PVS
Schneider Electric

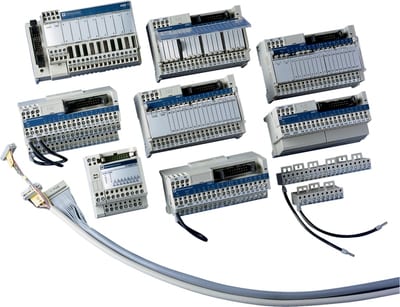

Schneider Electric sub-base - soldered electromechanical relays ABE7 - 8 channels - relay 10 mm ABE7R08S210
Schneider Electric

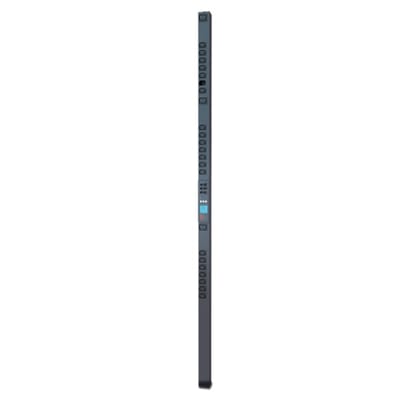

Schneider Electric Rack PDU 2G, Metered-by-Outlet, ZeroU, 16A, 230V, (21) C13 & (3) C19 AP8459EU3
