Flexible 63A 1M +bus

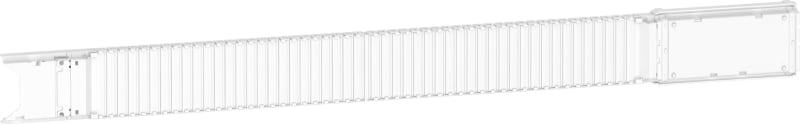

Schneider Electric KNT63DF410 Flexible 63A 1M +Bus.

Manufacturer part number (MPN)

KNT63DF410

EAN / GTIN

3606480003417

Sales unit

pcs

Rated current

63 A

Range of product

Canalis

Product name

KN

Product or component type

Flexible element

Busbar description

Flexible length

Device application

Low power distribution

Direction change type

2 dimensions

[Ie] rated operational current

63 A at 35 °C; 63 A at 25 °C

[Ue] rated operational voltage

230...500 V

Network frequency

50/60 Hz

Number of circuits

1

Control type

Communicating

Colour

White (RAL 9001)

mounting mode

By screws

Thermal stress limit

1980 kA².s

Maximum radiated magnetic field

0.063 µT

[Uimp] rated impulse withstand voltage

6 kV

[Ui] rated insulation voltage

500 V

[Icw] rated short-time withstand current

1.4 kA

[Ipk] rated peak withstand current

11 kA

THDI

0…15 % 63 A; 15…33 % 50 A; 33…100 % 40 A

Length

1 m

Product weight

2.1 kg

Standards

IEC 61439-1; IEC 61439-6

IP degree of protection

IP55 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Ambient air temperature for operation

0…35 °C without derating

Number of Units in Package 1

1

Warranty (in months)

18

Width

27.5 mm

Model

Single

Height

92 mm

Flexible

Yes

RAL-number

9001

Number of conductors (without earthing)

4

Number of poles

4

Degree of protection (IP)

IP55

Rated voltage AC 50 Hz

230–500 V

Rated current AC 50 Hz

63 A

Country of origin

France

HS Code

8536.90
