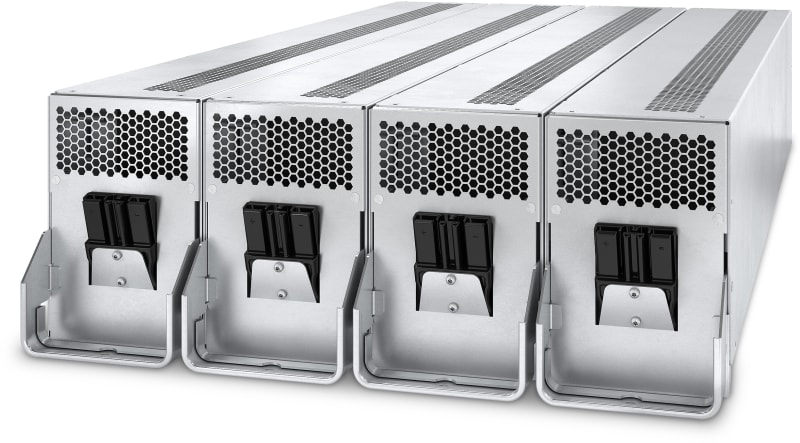

Schneider Electric Easy UPS 3S High Capacity Battery String E3SBTH4
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric E3SBTH4 is a high-capacity battery string for the Easy UPS 3S range, comprising four 9 Ah VRLA battery modules (E3SBTHU) at 120 V. It is used with the Easy UPS 3S internal battery slots and the E3SXR6 Empty Modular Battery Cabinet, and measures 15.7 x 42.8 x 76 cm at 108 kg. Typical applications include runtime extension for three-phase UPS systems supporting IT and light industrial loads.
Technical Specifications
- Manufacturer part number (MPN)
- E3SBTH4
- EAN / GTIN
- 0731304347583
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Presentation
- High capacity battery string for use with Easy UPS 3S with internal battery slots and Easy UPS 3S Empty Modular Battery Cabinet (E3SXR6). Each battery string consists of four 9 Ah battery modules (E3SBTHU).
- Product or component type
- Battery module
- Range compatibility
- Easy UPS 3M
- battery type
- VRLA
- Range of product
- Easy UPS 3M
- Number of battery free slots
- 0
- Number of battery filled slots
- 0
- Device mounting
- Enclosed battery cartridge
- Battery voltage
- 120 V
- Battery power in VAh
- 9 VAh
- Height
- 15.7 cm
- Width
- 42.8 cm
- Depth
- 76 cm
- Product weight
- 108 kg
- mounting mode
- Not rack-mountable
- Ambient air temperature for operation
- 0…40 °C
- Operating altitude
- 0...3281 ft
- Relative humidity
- 0…95 % non-condensing
- Ambient air temperature for storage
- -15…40 °C
- Storage altitude
- 0…15240 m
- Storage Relative Humidity
- 0…95 % non-condensing
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 18.000 cm
- Package 1 Width
- 56.000 cm
- Package 1 Length
- 82.000 cm
- Package 1 Weight
- 112.000 kg
- Country of origin
- CN
- Warranty (in months)
- 12
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304347583
- SAP 1200341032
- Code 82358569
Product Documentation
