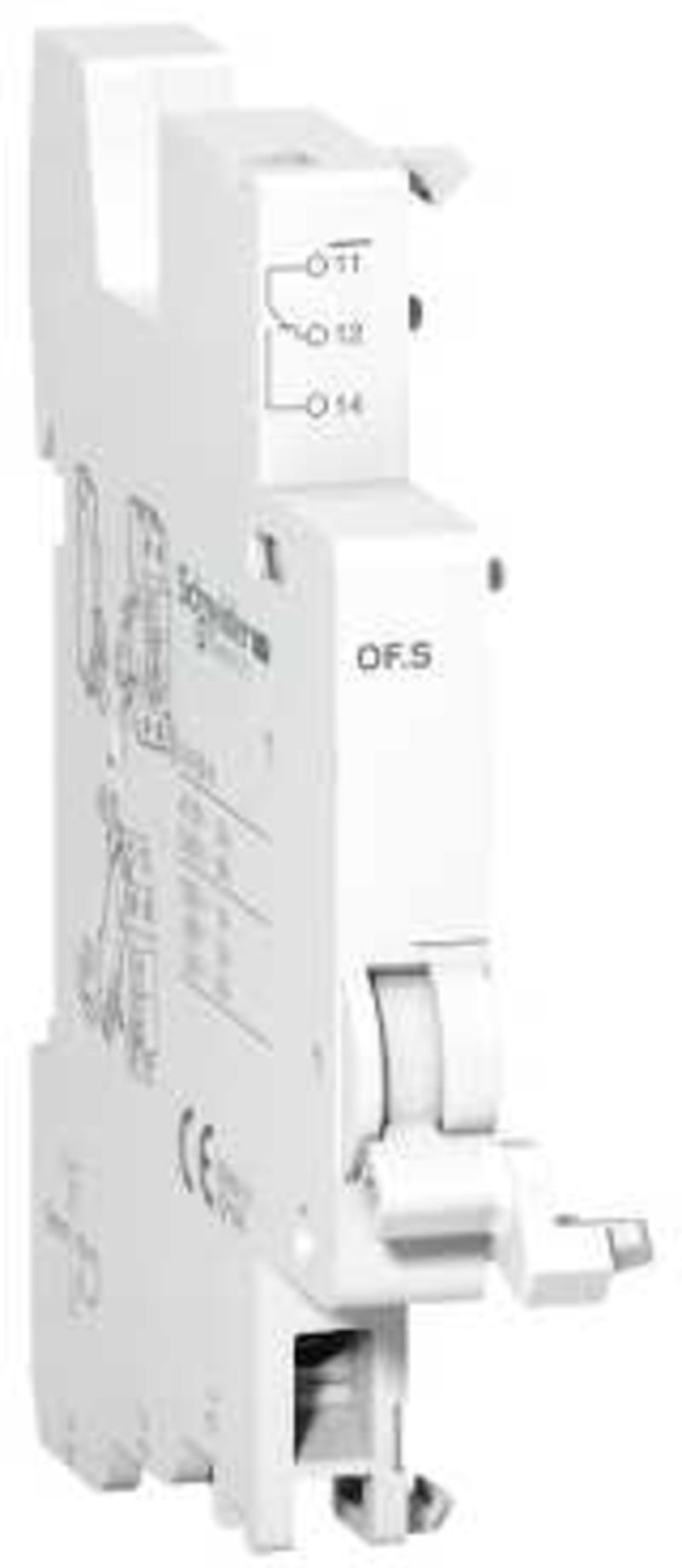

Auxiliary contact OFS 1CO for iID

Schneider Electric A9N26923 Auxiliary Contact OFS 1CO for iID.

Manufacturer part number (MPN)

A9N26923

EAN / GTIN

3606485232058

Sales unit

pcs

Package quantity

12 pcs

range of product

Acti9

Product or component type

OC contact

Device short name

OFS

Signal contacts composition

1 C/O

[In] rated current

AC-12 3 A at 380...415 V, AC 50/60 Hz; AC-12 6 A at 220...240 V, AC 50/60 Hz; DC-12 1 A at 130 V, DC; DC-12 1.5 A at 60 V, DC; DC-12 2 A at 48 V, DC; DC-12 6 A at 24 V, DC

9 mm pitches

1

Standards

EN/IEC 60947-5-1

Range compatibility

Acti9 RCCB-ID 125A; Acti9 ID C40; Acti9 IDc; Acti9 ITG40

mounting mode

Fixed

Mounting support

DIN rail

Comb busbar and distribution block compatibility

Top: YES

Height

85.3 mm

Width

9 mm

Depth

78.5 mm

Product weight

33 g

Colour

White

Connections - terminals

Clamp terminal (bottom): 2 cable(s) 1.5 mm² - flexible; Clamp terminal (bottom): 1 cable(s) 0.5…2.5 mm² - rigid; Clamp terminal (bottom): 2 cable(s) 1.5 mm² - flexible with ferrule

Wire stripping length

9 mm

Tightening torque

1 N.m

IP degree of protection

IP20 conforming to EN/IEC 60947-5-1

Pollution degree

3 conforming to EN/IEC 60947-5-1

Tropicalisation

2 conforming to EN/IEC 60947-5-1

Relative humidity

0.95 % at 55 °C

Ambient air temperature for operation

-35…70 °C

Ambient air temperature for storage

-40…85 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.000 cm

Package 1 Width

7.800 cm

Package 1 Length

9.300 cm

Package 1 Weight

44.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

12

Package 2 Height

9.200 cm

Package 2 Width

10.000 cm

Package 2 Length

25.500 cm

Package 2 Weight

590.000 g

Unit Type of Package 3

S03

Number of Units in Package 3

108

Package 3 Height

30.000 cm

Package 3 Width

30.000 cm

Package 3 Length

40.000 cm

Package 3 Weight

5.688 kg

Country of origin

ES

Warranty (in months)

18

Function

Signalling switch

Voltage type

AC

Rated voltage

240 V

Installed at the factory

No

Width in number of modular spacings

0.5

Rated switch current

6 A

Device fitting

Earth leakage switch

Additional equipment

Signalling switch

Voltage type for actuating

AC

Number of contacts as change-over contact

1

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

4

Suitable for max. current main contact unit

100 A

HS Code

8538.90
