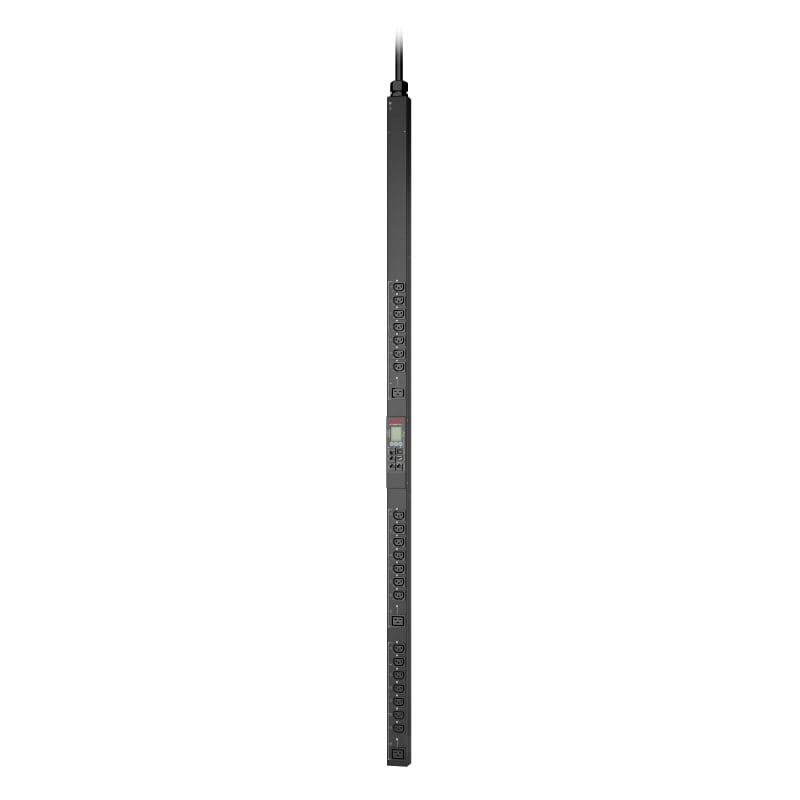

Schneider Electric APC Rack PDU 9000 Switched, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19 APDU9981EU3
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric APDU9981EU3 APC Rack PDU 9000 Switched, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19.
Technical Specifications
- Manufacturer part number (MPN)
- APDU9981EU3
- EAN / GTIN
- 0731304404262
- Sales unit
- pcs
- Power
- 11.0 kW
- Colour
- Black
- Product or component type
- PDU
- PDU type
- Switched
- Cord length
- 1.82 m
- Number of cables
- 1
- Provided equipment
- Installation guide; Rack mounting brackets; Safety guide
- Input Voltage
- 400 V 3 phases
- Height
- 1792 mm
- Width
- 55 mm
- Output Voltage
- 230 V
- Depth
- 46 mm
- Product weight
- 7 kg
- Mounting location
- Side
- Mounting preference
- No preference
- Input Plug Type
- IEC 60309 16 A 3P + N + PE
- mounting mode
- Not rack-mountable
- Rack units
- 0U
- USB compatible
- No
- Mounting position
- Vertical
- Communication port protocol
- SNMP; Redfish
- [In] rated current
- 16 A
- Max line current
- 16 A
- Input current limits
- 16 A
- Load capacity
- 11000 VA
- Network frequency
- 50/60 Hz
- Outlet type and quantity
- 21 IEC 60320 C13 ; 3 IEC 60320 C19
- Communication network type
- 10/100/1000BASE-T
- Product certifications
- cUL listed; FCC part 15 class A; UL listed; VDE
- Standards
- EN 55022 class A; EN 55024; EN 61000-3-2; EN 61000-3-3; ICES-003
- Ambient air temperature for operation
- -5…60 °C
- Relative humidity
- 5…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -25…65 °C
- Storage Relative Humidity
- 5…95 %
- Storage altitude
- 0…15240 m
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 200.2 cm
- Package 1 Width
- 11.4 cm
- Package 1 Length
- 16.5 cm
- Package 1 Weight
- 8.95 kg
- Country of origin
- IN
- Warranty (in months)
- 36
- Nominal current
- 16 A
- Mounting direction
- Vertical
- Electrical connection
- Connection cable with plug
- Cable length
- 1.8 m
- Number of C13 socket outlets
- 21
- Number of C19 socket outlets
- 3
- Length
- 46 mm
- Supply voltage
- 230 V
- Overvoltage category
- 1
- Interface ethernet
- Yes
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 0731304404262
- SAP 1200507010
- Code 82656643
