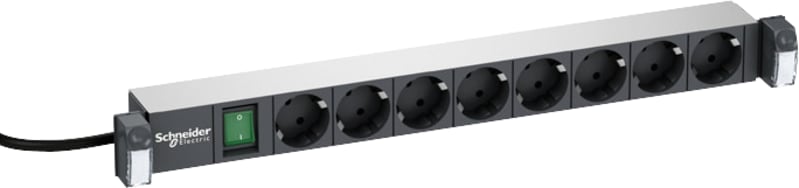

Schneider Electric Actassi 19" 1U Power Strip 8x Schuko 16 A
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VDIG162731 is a 19" 1U rack-mount power distribution strip from the Actassi range, fitted with eight German Schuko (DIN 49440) socket-outlets rated 250 V AC / 16 A / 3680 W and a protected main switch. The dark-grey (RAL 7016) housing combines anodised aluminium with a PA6-GF30 plastic front and ships with two quick-fix 19" mounting brackets and personalised cable-identification labels. Deployed in server, network and control cabinets to distribute mains power to rack-mounted equipment across Europe.
Technical Specifications
- Manufacturer part number (MPN)
- VDIG162731
- EAN / GTIN
- 3606485133997
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 11 pcs
- Voltage
- 230 V
- Range
- Actassi
- product
- 19" power panel
- equipment level
- With protected power switch
- Provided equipment
- 2 quick fix 19" mountings
- colour
- Dark grey (RAL 7016)
- additional features
- With personalized cable identification labels
- operational voltage
- 250 V AC, 16 A, 3680 W
- number of socket outlets
- 8 German socket-outlets, 2P + E according to conforming to DIN 49440
- rack unit
- 1U
- Marking
- CE
- Material
- PA6 GF30: plastic part; Anodised aluminium
- Depth
- 47 mm
- Height
- 45 mm
- Width
- 490 mm
- weight
- 1 kg
- Targeted region
- Europe
- IP degree of protection
- IP20
- Ambient air temperature for operation
- -10…55 °C
- Standards
- IEC 60884-1; IEC 60297; DIN 49440
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606485133997
- SAP 1000000387
- Code 814618
