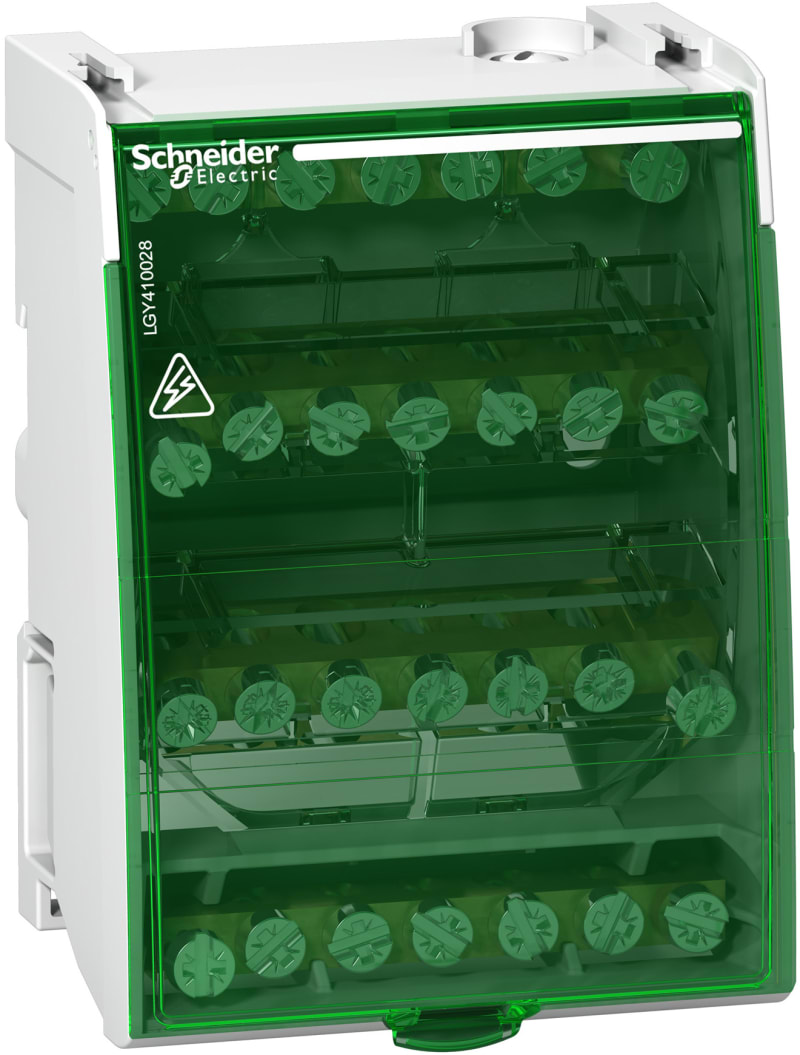

Schneider Electric Linergy DS - screw distribution block 4P - 100A - 28 holes LGY410028

Schneider Electric LGY410028 Distribution block 4P 100A 28 hole.

Manufacturer part number (MPN)

LGY410028

EAN / GTIN

3606480542084

Sales unit

pcs

Package quantity

34 pcs

Rated current

100 A

Number of poles

4P

Range

Linergy

Product name

Linergy DS

Product or component type

Distribution block

Mounting support

DIN rail

Range compatibility

Prisma G; Prisma P; Prisma POLAR WHITE; Prisma Pack; Spacial; Kaedra; Pragma; TeSys; ComPact

Product compatibility

Spacial enclosures

Poles description

4P

Distribution block outgoers

4 x 7 holes

[Ue] rated operational voltage

230 V AC Ph/N; 440 V AC Ph/Ph

[Ui] rated insulation voltage

500 V AC

[Uimp] rated impulse withstand voltage

8 kV

[Ie] rated operational current

100 A at 40 °C

[Icw] rated short-time withstand current

3 kA for 1 s

[Ipk] rated peak withstand current

24 kA

Connections - terminals

Supply: screw terminal 2 cable(s) 2.5…25 mm² rigid; Supply: screw terminal 2 cable(s) 1.5…16 mm² flexible with cable end; Distribution: screw terminal 5 cable(s) 1.5…16 mm² rigid; Distribution: screw terminal 5 cable(s) 1.5…10 mm² flexible with cable end

Tightening torque

Supply: 2 N.m flat screwdriver 7.5 mm; Supply: 2 N.m PZ2 screwdriver 7.5 mm; Distribution: 2 N.m flat screwdriver 5.5 mm; Distribution: 2 N.m PZ2 screwdriver 5.5 mm

9 mm pitches

8

Height

100 mm

Width

71 mm

Depth

50.5 mm

Product weight

0.21 kg

Colour

White (RAL 9003)

Pollution degree

3

Overvoltage category

III

Dielectric strength

2500 V

Standards

EN/IEC 61439-1; EN/IEC 60947-7-1

Ambient air temperature for operation

-25…55 °C

Country of origin

TN

Warranty (in months)

18

Core cross section

25 mm²

With seal head

No

HS Code

8536.90

• EAN 3606480542084
• SAP 1000640290
• Code 8593671
