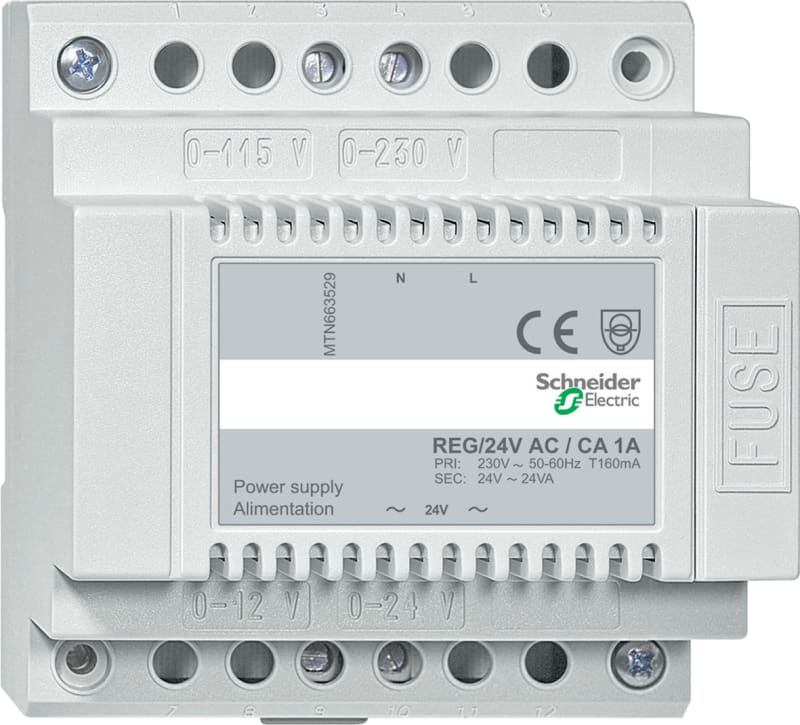

Schneider Electric Power supply, SpaceLogic KNX, REG/24V AC/1A, light grey MTN663529
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric MTN663529 KNX power supply 24V AC, max. load 1000 mA.
Technical Specifications
- Manufacturer part number (MPN)
- MTN663529
- EAN / GTIN
- 3606485012100
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 24 V
- Range of product
- SpaceLogic KNX
- Product or component type
- Power supply
- Network type
- AC
- Colour tint
- Light grey
- Range
- SpaceLogic KNX
- Condition of use
- Other device; KNX device
- Mounting support
- DIN rail
- Rated operational power in W
- 24 W
- [Us] rated supply voltage
- 207...253 V AC 50/60 Hz
- Output current
- 1 A
- output voltage
- 24 V
- Connections - terminals
- Screw terminals
- Height
- 66.5 mm; 93 mm
- Width
- 87.5 mm
- Depth
- 66.5 mm
- Main colour tint
- Light grey
- IP degree of protection
- IP20
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Warranty (in months)
- 18
- Suitable for wall mounting
- No
- Voltage type (supply voltage)
- AC
- 1st secondary output voltage
- 24 V
- Max. output current 1
- 1 A
- Secondary voltage adjustable
- No
- Short-circuit-proof
- No
- Rated supply voltage AC 50 Hz
- 207–253 V
- Rated supply voltage AC 60 Hz
- 207–253 V
- Output voltage stabilized
- No
- Power output
- 24 W
- Stabilized
- No
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- No
- Wall mounting possible
- No
- Suitable for distribution board
- Yes
- Built-in height
- 66.5 mm
- Direct mounting possible
- No
- Suitable for safety functions
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606485012100
- SAP 1000325200
- Code 8353677
Product Documentation
More from Schneider Electric
Schneider Electric

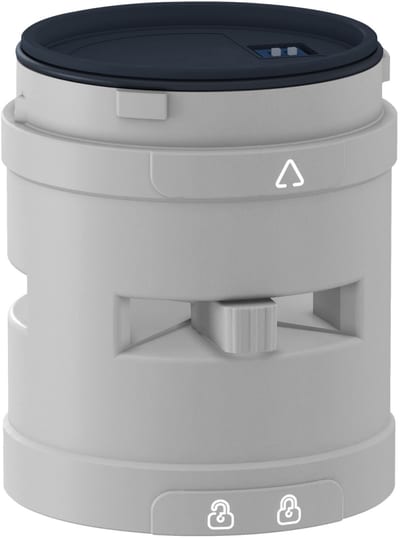

Silver Buzzer 85 DB (XVUC9SQ)
Schneider Electric

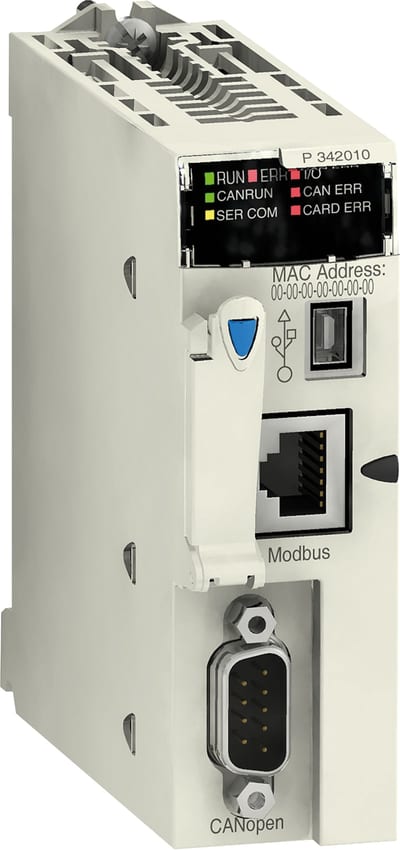

Schneider Electric processor module M340 - max 1024 discrete + 256 analog I/O BMXP3420102
Schneider Electric
SSbl.-LGY FC-with connection LGYE/LGY BS-NSXM-4P
LVS04413
Schneider Electric

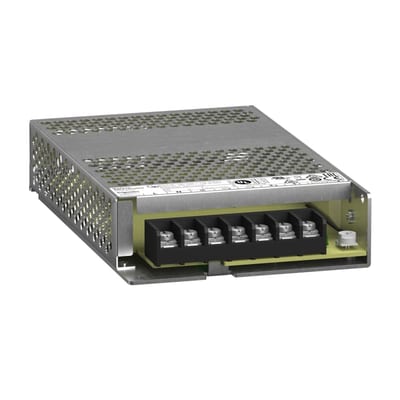

Schneider Electric Regulated Power Supply, 100...240V AC, 24V 6.2A, single phase, Panel Mount ABLP1A24062
