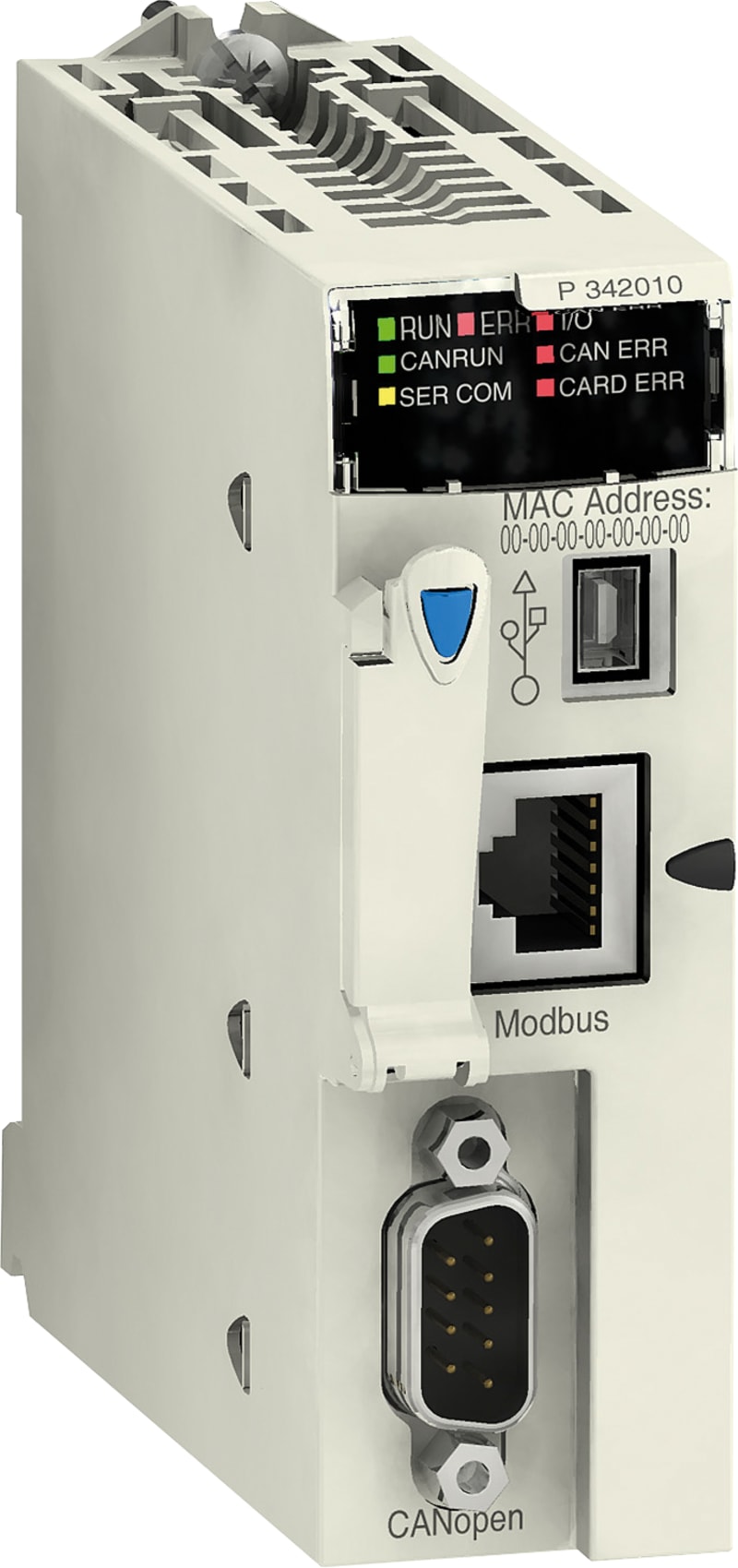

Schneider Electric processor module M340 - max 1024 discrete + 256 analog I/O BMXP3420102

Schneider Electric BMXP3420102 M340 CPU 4R,1024D,256A,MB,CANopen.

Manufacturer part number (MPN)

BMXP3420102

EAN / GTIN

3595864024448

Sales unit

pcs

Range of product

Modicon M340 automation platform

Product or component type

Processor module

Concept

Modbus; CANopen

Number of racks

4

Local I/O processor capacity (discrete)

1024 I/O

Analogue I/O processor capacity

256 I/O

Number of application specific channel

36

Monitoring

Diagnostic counters Modbus; Event counters Modbus

Control channels

Programmable loops

Motion control

Independent axis CANopen

Integrated connection type

Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS232C, transmission mode: 2 twisted shielded pairs at 0.3...19.2 kbit/s full duplex; Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex; Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS232C, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex; Non isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplex; USB port at 12 Mbit/s; CANopen master bus SUB-D 9, transmission mode: 2 twisted shielded pairs at 20 kbit/s...1 Mbit/s

Communication module processor capacity

2 Ethernet communication module; 4 AS-Interface module

embedded communication service

Network management (NMT) CANopen; Process Data Object (PDO) CANopen; Service Data Object (SDO) CANopen; Special functions (SYNC, EMCY, TIME) CANopen

Transmission rate

1 Mbit/s 0…20 m 0…0.6 m; 125 kbit/s 0…500 m 0…10 m; 20 kbit/s 0…2500 m 0…300 m; 250 kbit/s 0…250 m 0…10 m; 50 kbit/s 0…1000 m 0…120 m; 500 kbit/s 0…100 m 0…10 m; 800 kbit/s 0…40 m 0…6 m

Bus type

CANopen M20 DS 301 V4.02 devices linked by daisy-chaining or tap junctions CSMA/CA; CANopen M20 DS 303-2 devices linked by daisy-chaining or tap junctions CSMA/CA; CANopen M20 DS 405 devices linked by daisy-chaining or tap junctions CSMA/CA

Number of server device(s)

63 CANopen

Number of devices per segment

0…32 (character mode); 0…32 (Modbus); 0…16 for <205 m (CANopen); 0…32 for <185 m (CANopen); 0…64 for <160 m (CANopen)

Number of devices

2 point-to-point character mode; 2 point-to-point Modbus

Bus length

0…10 m serial link non isolated character mode segment; 0…10 m serial link non isolated Modbus segment; 0…1000 m serial link isolated character mode segment; 0…1000 m serial link isolated Modbus segment; 0…15 m character mode point-to-point; 0…15 m Modbus point-to-point

Maximum tap links length

<15 m serial link non isolated character mode segment; <15 m serial link non isolated Modbus segment; <40 m serial link isolated character mode segment; <40 m serial link isolated Modbus segment

Number of addresses

0…248 for character mode; 0…248 for Modbus

Requests

1 K data bytes per request character mode; 252 data bytes per RTU request Modbus; 504 data bytes per ASCII request Modbus

Control parameter

One CRC on each frame (RTU) Modbus; One LRC on each frame (ASCII) character mode; One LRC on each frame (ASCII) Modbus

Memory description

Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data; Internal RAM 4096 kB; Internal RAM 256 kB data; Internal RAM 3584 kB program constants and symbols

Maximum size of object areas

32634 %Mi located internal bits; 32464 %MWi internal words; 32760 %KWi constant words

Default size of object areas

1024 %MWi internal words located internal data; 256 %KWi constant words located internal data; 512 %Mi located internal bits

Application structure

No auxiliary task; 1 cyclic/periodic master task; 1 periodic fast task; 64 event tasks

Execution time per instruction

0.12 µs Boolean; 0.17 µs double-length words; 0.25 µs single-length words; 1.16 µs floating points

Number of instructions per ms

6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic; 8.1 Kinst/ms 100 % Boolean

System overhead

0.13 ms for fast task; 0.7 ms for master task

Current consumption

90 mA at 24 V DC

Supply

Internal power supply via rack

Marking

CE; UL; CSA; RCM; EAC; UKCA; China RoHS; WEEE; IEC

Status LED

1 LED (green) integrated machine/installation bus operational (CAN RUN); 1 LED (green) processor running (RUN); 1 LED (red) I/O module fault (I/O); 1 LED (red) integrated machine/installation bus fault (CAN ERR); 1 LED (red) memory card fault (CARD ERR); 1 LED (red) processor or system fault (ERR); 1 LED (yellow) activity on Modbus (SER COM)

Product weight

0.21 kg

Ambient air temperature for operation

0…60 °C

Relative humidity

5…95 % without condensation

IP degree of protection

IP20

Protective treatment

TC

Directives

2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility; 2012/19/EU - WEEE directive

Product certifications

CE; UL; CSA; RCM; EAC; UKCA; Merchant Navy; CCSAus HazLoc Class I Division 2 Group A; CCSAus HazLoc Class I Division 2 Group B; CCSAus HazLoc Class I Division 2 Group C; CCSAus HazLoc Class I Division 2 Group D

Standards

IEC 61131-2; IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; EN/IEC 61000-6-5, interface type 1 and type 2; EN/IEC 61850-3, location G

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.400 cm

Package 1 Width

11.500 cm

Package 1 Length

12.400 cm

Package 1 Weight

249.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

15

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

4.058 kg

Country of origin

FR

Warranty (in months)

18

Width

35 mm

Model

Modular

Height

100 mm

Depth

160 mm

Number of digital inputs

1024

Number of digital outputs

1024

Number of analogue inputs

256

Number of analogue outputs

256

Voltage type (supply voltage)

DC

Type of memory

RAM

Memory size

4096 kByte

Processing time (1K, binary operation)

12 ms

Number of HW-interfaces industrial Ethernet

2

Number of HW-interfaces RS-232

1

Number of HW-interfaces RS-485

1

Number of HW-interfaces USB

1

Number of HW-interfaces other

2

Explosion safety category for gas

None

Performance level according to EN ISO 13849-1

None

Long-Term Evolution (LTE)

No

SIL according to IEC 61508

None

HS Code

8537.10
