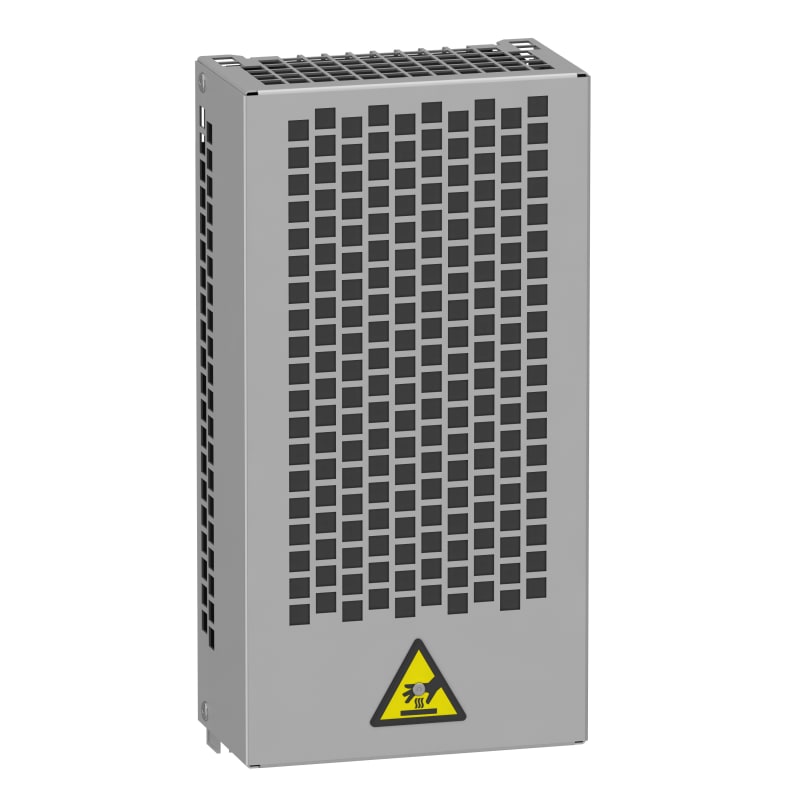

Schneider Electric braking resistor - 28 ohms - 0.3 kW - IP20 VW3A7732
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A7732 Braking resistor 28 ohms 0,3kW IP20.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A7732
- EAN / GTIN
- 3606480802263
- Sales unit
- pcs
- Power
- 0.3 kW
- Resistance
- 28 Ω
- Range of product
- Altivar
- Range compatibility
- Altivar Machine ATV340; Easy Altivar 310; Altivar Process ATV900; Altivar Machine ATV320; Easy Altivar 310L
- Product or component type
- Braking resistor
- Ohmic value
- 28 Ohm
- Product compatibility
- Variable speed drive ATV320 15 kW 525...600 V; Variable speed drive ATV930 wall mount 4 kW 200...240 V medium cycle; Variable speed drive ATV950 wall mount 11 kW 380...480 V light cycle; Variable speed drive ATV930 wall mount 3 kW 200...240 V medium cycle; Variable speed drive ATV930 wall mount 11 kW 380...480 V light cycle; Variable speed drive ATV320 7.5 kW 525...600 V; Variable speed drive ATV930 15 kW 500...690 V light cycle; Variable speed drive ATV930 wall mount 3 kW 200...240 V light cycle; Variable speed drive ATV930 25 hp 600 V light cycle; Variable speed drive ATV320 7.5 kW 380...480 V; Variable speed drive ATV320 3 kW 200...240 V; Variable speed drive ATV320 11 kW 380...480 V; Variable speed drive ATV320 11 kW 525...600 V; Variable speed drive ATV930 20 hp 600 V light cycle; Variable speed drive ATV930 18.5 kW 500...690 V light cycle; Variable speed drive ATV930 wall mount 15 kW 380...480 V light cycle; Variable speed drive ATV340 11 kW 380...480 V light cycle; Variable speed drive ATV950 wall mount 15 kW 380...480 V light cycle; Variable speed drive ATV310 11 kW; Variable speed drive ATV930 wall mount 4 kW 200...240 V light cycle; Variable speed drive ATV340 7.5 kW 380...480 V light cycle; Variable speed drive ATV320 2.2 kW 200...240 V
- Duty cycle
- Light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle ; Light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle ; Medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle ; Medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
- Average power available
- 0.3 kW at 50 °C
- Electrical connection
- terminal, connection capacity: <= 10 mm² / 8 AWG for drive
- Protection type
- Thermal protection via drive
- Width
- 175 mm
- Height
- 345 mm
- Depth
- 100 mm
- Product weight
- 2.7 kg
- IP degree of protection
- IP20
- Ambient air temperature for storage
- -25…70 °C
- Ambient air temperature for operation
- 0…50 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 18
- Country of origin
- DE
- Warranty (in months)
- 18
- Type of accessory/spare part
- Breaking resistance
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8533.29
Cross References
- EAN 3606480802263
- SAP 1200020032
- Code 81392424
