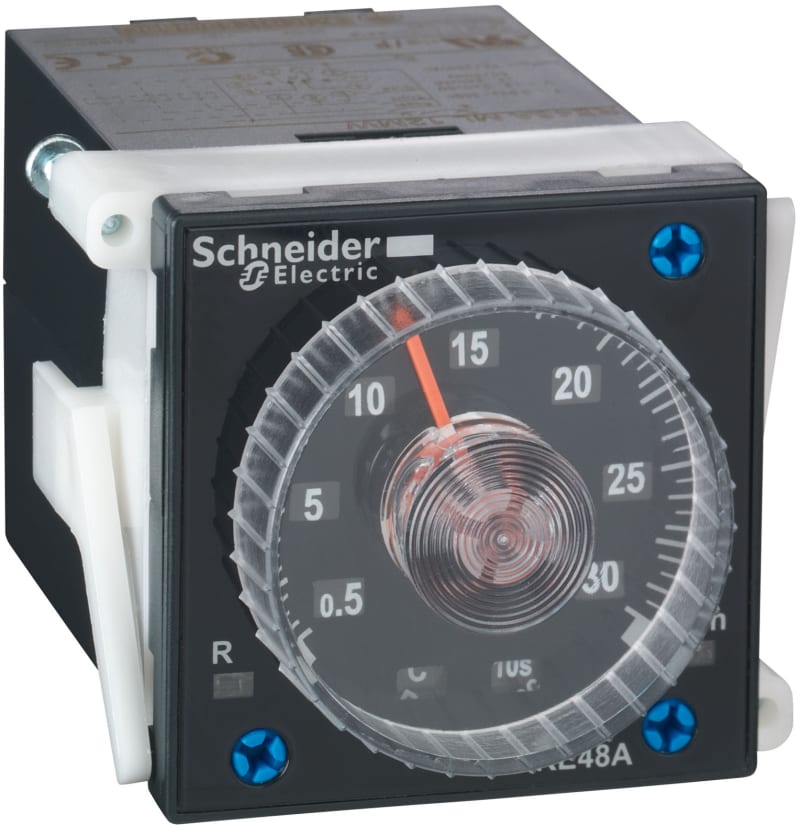

Schneider Electric Modular timing relay, 5 A, 2 CO, 0.2 S...300 h, time delay, 24...240 V AC/DC RE48AML12MW

Schneider Electric RE48AML12MW MULTIFUNCTION HOURS.

Manufacturer part number (MPN)

RE48AML12MW EAN / GTIN: 3389110649598 Sales unit: pcs Package quantity: 30 pcs Range of product: Harmony Timer Relays Electrical connection: Plug-in sub-base 11 pin(s) Width: 48 mm Product or component type: Panel-mounted/plug-in timer relay Discrete output type: Relay Contacts type and composition: 2 C/O timed contacts, AgNi (cadmium free) Component name: RE48A Time delay range: 0.5...30 s; 5...300 s; 0.2...12 min; 0.5...30 h; 2...120 s; 0.05...3 s; 0.2...12 s; 0.02...1.2 s; 2...120 min; 5...300 min; 0.5...30 min; 5...300 h; 2...120 h; 0.2...12 h [Us] rated supply voltage: 24...240 V AC/DC 50/60 Hz Voltage range: 0.85...1.1 Us AC; 0.9...1.1 Us DC [In] rated current: 5 A Product front plate size: 48 x 48 mm Control type: Selector switch front panel Housing material: Polycarbonate Repeat accuracy: +/- 0.2 % of the maximum setting value conforming to IEC 61812-1 Temperature drift: +/- 0.02 %/°C of the maximum setting value conforming to IEC 61812-1 Voltage drift: +/- 0.2 %/V of the maximum setting value at 48...240 V; +/- 1 %/V of the maximum setting value at 24...48 V Setting accuracy of time delay: +/- 5 % of full scale at 25 °C conforming to IEC 61812-1; +/- 10 % of full scale at 25 °C conforming to IEC 61812-1 Time delay type: Power on-delay - A- Power on-delay relay; Interval - B- Single interval relay w/ control signal; Off-delay - C- Off-delay relay w/ control signal; Symmetrical flashing - Di- Symmetrical flashing relay (starting pulse-on) minimum pulse duration: 20 ms Reset time: 25 ms on de-energisation Pick up duration: 55 ms On-load factor: 100 % Power consumption in VA: 6 VA at 240 V Power consumption in W: 2 W at 240 V Breaking capacity: 1250 VA minimum switching current: 100 mA Maximum switching current: 5 A Maximum switching voltage: 250 V AC/DC Electrical durability: 100000 cycles Mechanical durability: 30000000 cycles Output voltage: 240 V at 5 A AC-12; 30 V at 2 A DC-13; 240 V at 1.5 A AC-15 Marking: CE Surge withstand: 1 kV differential mode conforming to IEC 61000-4-5 level 3; 2 kV common mode conforming to IEC 61000-4-5 level 3 Mounting support: Base mounted: socket; Panel mounted: system supplied with the product Local signalling: 1 LED (yellow) for output relay state; LED indicator (green) for flashing: relay energised timing in progress; LED indicator (green) for on steady: relay energised, no timing in progress Function available: A- Power on-delay relay-2 C/O; B- Single interval relay w/ control signal-2 C/O; C- Off-delay relay w/ control signal-2 C/O; Di- Symmetrical flashing relay (starting pulse-on)-2 C/O Product weight: 0.14 kg Shape of pin: Cylindrical Number of functions: 4 Humidity drift: +/- 0.05 %/%RH of the maximum setting value conforming to IEC 61812-1 Immunity to microbreaks: 5 ms Dielectric strength: 2 kV 1 mA/1 minute conforming to IEC 61812-1 Protection against electric shocks: 4 kV class III conforming to IEC 60664-1; 4 kV class III conforming to IEC 61812-1 Standards: IEC 61812-1; EN 50081-1/2; 93/68/EEC; 89/336/EEC; EN 50082-1/2; IEC 60669-2-3; 73/23/EEC Product certifications: UL; cULus; CSA; C-Tick Ambient air temperature for storage: -40…70 °C Ambient air temperature for operation: -20…50 °C IP degree of protection: IP40 (housing) conforming to IEC 60529; IP50 (front face) conforming to IEC 60529 Vibration resistance: 0.35 mm (f= 10…55 Hz) conforming to IEC 60068-2-6 Relative humidity: 93 % without condensation conforming to IEC 60068-2-3 Resistance to electrostatic discharge: 6 kV in contact conforming to IEC 61000-4-2 level 3; 8 kV in air conforming to IEC 61000-4-2 level 3 Resistance to electromagnetic fields: 10 V/m 26 MHz to 1 GHz conforming to IEC 61000-4-3 level 3 Resistance to fast transients: 2 kV (direct) conforming to IEC 61000-4-4 level 3 Immunity to radioelectric fields: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6 level 3 Immunity to voltage dips: 30 % / 10 ms conforming to IEC 61000-4-11 Disturbance radiated/conducted: Class B 0.15...30 MHz conforming to EN 55022 (EN 55011 group 1) Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 5.700 cm Package 1 Width: 6.200 cm Package 1 Length: 10.500 cm Package 1 Weight: 130.000 g Unit Type of Package 2: S02 Number of Units in Package 2: 30 Package 2 Height: 15.000 cm Package 2 Width: 30.000 cm Package 2 Length: 40.000 cm Package 2 Weight: 4.350 kg Country of origin: ID Warranty (in months): 18 Complete with socket: No Type of electric connection: Screw connection Function delay-on energization: Yes Function delay on de-energization: Yes Function floating contact on energization: No Function floating contact on de-energization: No Function star-delta: No Function pulse shaping: Yes Function flashing, starting with pause, fixed time: Yes Function flashing, starting with pulse, fixed time: Yes Clock function, starting with pause, variable: No Clock function, starting with pulse, variable: No With plug-in socket: Yes Remote operation possible: No Suitable as remote control: No Pluggable on auxiliary contact block: No Rated control supply voltage AC 50 Hz: 24–240 V Rated control supply voltage AC 60 Hz: 24–240 V Rated control supply voltage DC: 24–240 V Voltage type for actuating: AC/DC Nominal current: 5 A Time range: 0.02–1088888 s Number of outputs, delayed, change-over contact: 2 Outputs, reversible delayed/undelayed: No With semiconductor output: No Suitable for DIN rail (top hat rail) mounting: No Suitable for front mounting: Yes Height: 48 mm Depth: 80 mm

HS Code

8536.49

• EAN 3389110649598
• SAP 1000260189
• Code 8174341
