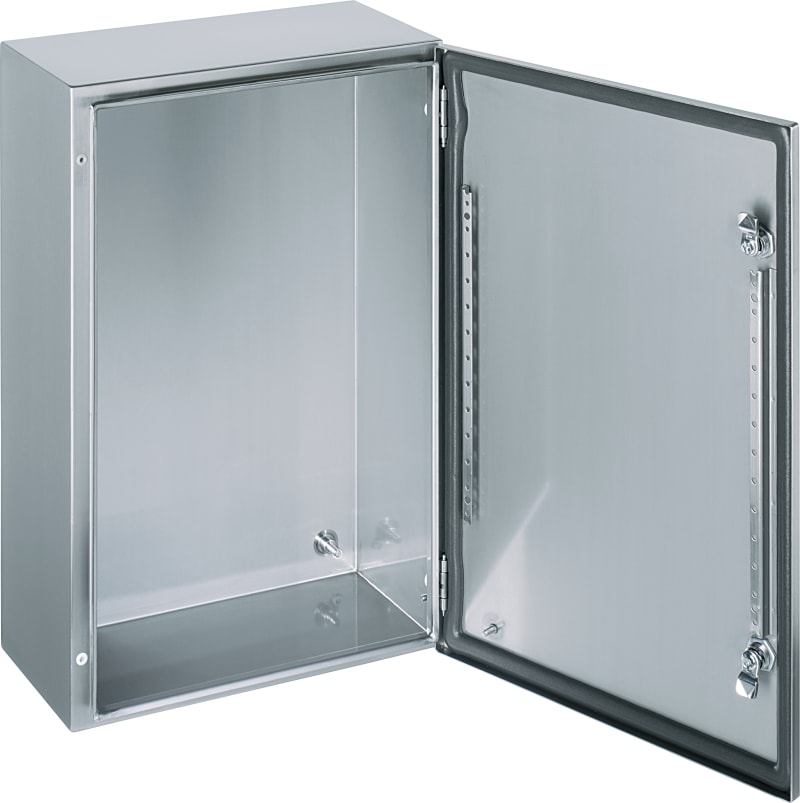

Schneider Electric PanelSet S3X stainless 304L, Scotch Brite® finish, H500XW400XD200 mm. NSYS3X5420T
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3X5420T Cabinet Stainless 304 Gl.Door 5X4X2.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3X5420T
- EAN / GTIN
- 3606480155208
- Sales unit
- pcs
- Range
- Spacial
- Product name
- Spacial S3X
- enclosure type
- Multi-purpose
- category
- Compact enclosure
- nominal height
- 500 mm
- nominal width
- 400 mm
- nominal depth
- 200 mm
- product installation
- Wall-mounting
- Device composition
- 1 body; 1 lock: door; 1 door
- Body type
- Single piece body, cross-shaped structure; Gutter shaped front rail
- Door type
- Glazed
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 2 points lock, 3 mm double-bar
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Without gland plate
- Accessibility for operation
- Front
- Removable parts
- Door by hinges
- Material
- Body and door: stainless steel 304L; Lock: zamak; Hinge: stainless steel; Door: Securit glass
- Surface finish
- Body and door: Scotch-Brite® brushed; Lock: chromium plated
- Product weight
- 7.842 kg
- Standards
- IEC 62208; UL; CUL
- Product certifications
- CAN/CSA 22; UL 508 type A
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Environmental characteristic
- Corrosive; Specific hygiene
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 22.000 cm
- Package 1 Width
- 41.500 cm
- Package 1 Length
- 51.500 cm
- Package 1 Weight
- 7.842 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 10
- Package 2 Height
- 68.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 94.000 kg
- Country of origin
- BG
- Warranty (in months)
- 18
- Colour
- Stainless steel
- Width
- 400 mm
- Height
- 500 mm
- Depth
- 200 mm
- RAL-number
- 7035
- With mounting plate
- No
- Number of locks
- 1
- Suitable for wall mounting
- Yes
- Pre-stamping
- No
- EMC-version
- No
- With glazed door
- Yes
- Couplable
- No
- Material quality
- Stainless steel 304 (V2A)
- Impact strength
- IK08
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 50 N
- Floor standing wall model
- No
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480155208
- SAP 1000089699
- Code 8883327
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric MN undervoltage release, standard, Masterpact MTZ1/2/3, 380/480 VAC 50/60 Hz, spare part LV833673SP
Schneider Electric
Schneider Electric Miniature circuit breaker (MCB), ACTI9 IC60L, 3P, 40A, MA curve, 15KA (IEC/EN 60947-2) A9F90340
Schneider Electric
Schneider Electric Earthing strips 2X16 + 8X6MM² . Composition : 10 units NSYRBL21686M
Schneider Electric
Schneider Electric Floor standing encl. polyester vers.PLAT open top w/ canopy 500X500X420 IP44 NSYPLAT554G
Schneider Electric
KAEDRA 8MOD, 2 openings 103X225
13186
Schneider Electric
Schneider Electric A9F93204 ACTI9 IC60L Miniature Circuit Breaker 2P 4 A, Curve B
Schneider Electric
Schneider Electric A9F93332 ACTI9 IC60L Miniature Circuit Breaker 3P 32 A, Curve B
Schneider Electric
Schneider Electric Soft starter, Altistart 480, 22A, 208 to 690V AC, control supply 110 to 230V AC ATS480D22Y
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYS3X5420T?
- NSYS3X5420T can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYS3X5420T.
- What is the HS code for NSYS3X5420T?
- The customs tariff (HS) code for NSYS3X5420T is 8538.10.
- Who manufactures NSYS3X5420T?
- NSYS3X5420T is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYS3X5420T?
- Yes — the NSYS3X5420T datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYS3X5420T?
- The minimum order quantity is 1.
- Is NSYS3X5420T available?
- Yes — NSYS3X5420T is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
