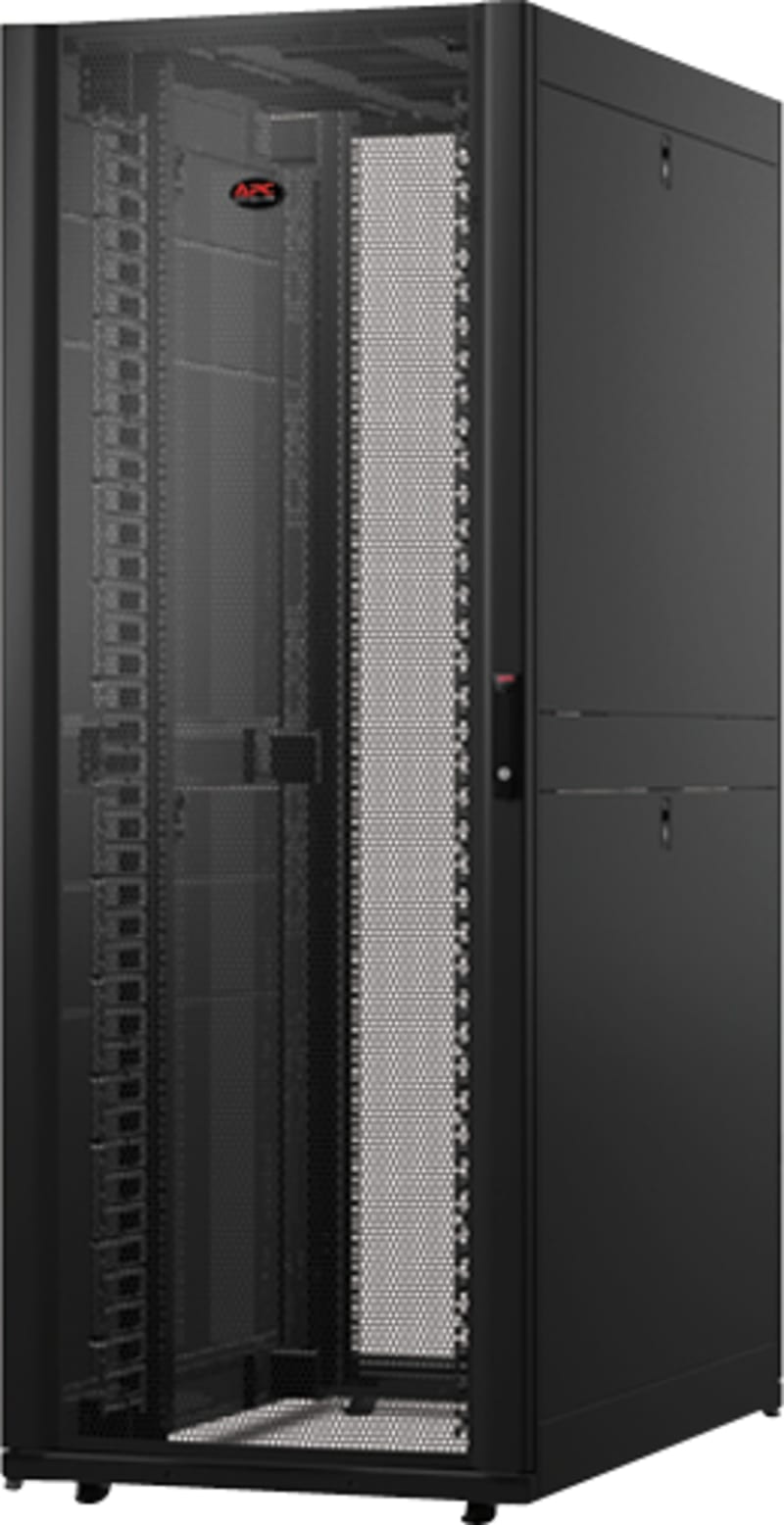

Schneider Electric APC NetShelter SX, Networking Rack Enclosure, 42U, Black, 1991H x 750W x 1200D mm AR3340

Schneider Electric AR3340 NetShelter SX 42U 750mm Wide x.

Manufacturer part number (MPN)

AR3340 EAN / GTIN: 0731304284963 Sales unit: pcs Presentation: NetShelter SX Networking Enclosure expands Schneider Electric's superior IT enclosure line with improved support for high density networking applications. Integrated high density cable managers and improved cable access roof provide support for large cable bundles. When combined with the Side Airflow Duct Kit, the Networking Enclosure ensures complete isolation of cold intake and hot exhaust air for large switches and SAN directors. Product or component type: Rack enclosure Number of rack unit: 42U Provided equipment: Baying hardware; Key(s); Keyed-alike doors and side panels; Leveling feet; Mounting hardware; Pre-installed casters; Side panels; Vertical cable managers Height: 1991 mm Width: 750 mm Depth: 1200 mm Product weight: 161.36 kg Colour: Black Mounting preference: No preference mounting mode: Not rack-mountable Maximum mounting depth: 958.9 mm minimum mounting depth: 279.4 mm Rack width: 19" Marking: 14 gauge EIA mounting rail; 16 gauge front door; 16 gauge post; 16 gauge rear door; 18 gauge roof; 18 gauge side panels Permanent permissible load: 1020.6 kg dynamic; 1701.0 kg static Standards: UL 2416; UL 60950-1; EIA-310E Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 211.8 cm Package 1 Width: 132.08 cm Package 1 Length: 85.09 cm Package 1 Weight: 183.18 kg Country of origin: CN Warranty (in months): 60 Mounting level: None Model: With permanent frame Type of profile rail: None Number of doors: 2 Type of ventilation: None Number of height units: 42 Max. load capacity: 1701 kg With roof plate: Yes With earthing: No With front door: Yes With sidewall: Yes Demountable: Yes material: Steel Surface finishing: Powder coating Degree of protection (IP): IP20

HS Code

9403.20

• EAN 0731304284963
• SAP 1000462855
• Code 8735505
