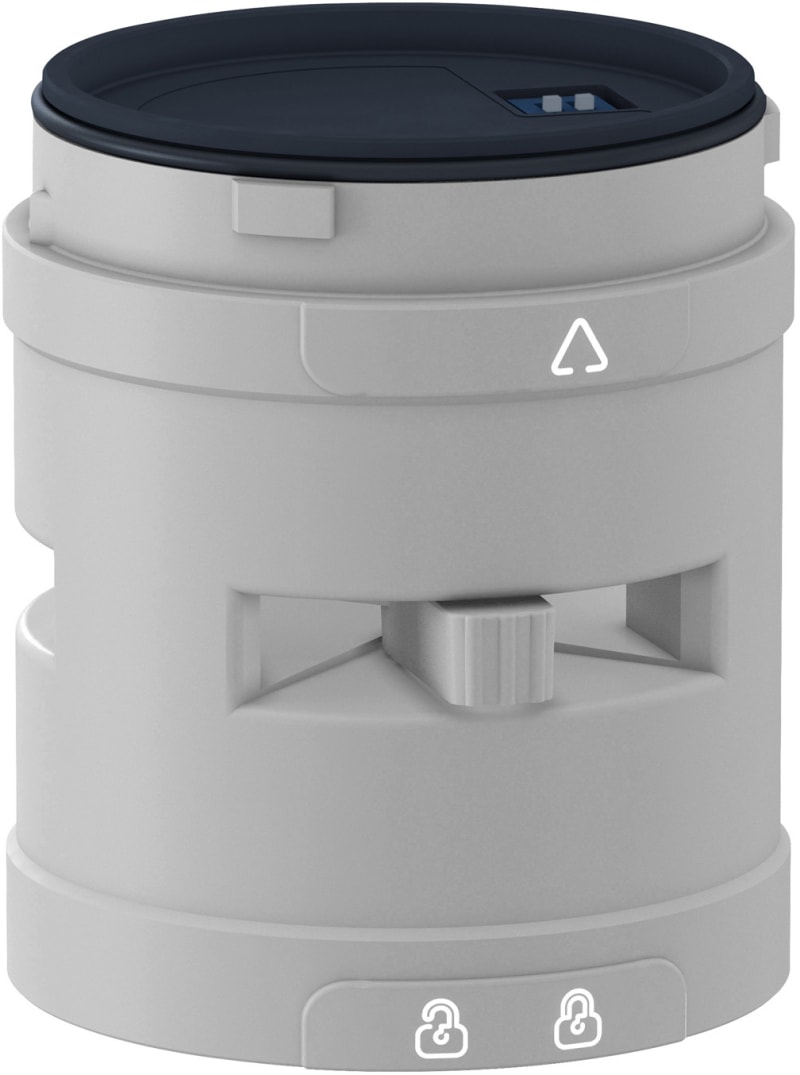

Silver Buzzer 85 DB (XVUC9SQ)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XVUC9SQ Ø60 mm buzzer for XVU lyskolonne in silver colour with adjustable lydstyrke 85 db.
Technical Specifications
- Manufacturer part number (MPN)
- XVUC9SQ
- EAN / GTIN
- 3606480555886
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Range of product
- Harmony XVU
- Product or component type
- Modular tower light
- Beacon or indicator bank unit type
- Buzzer unit
- Mounting diameter
- 60 mm
- Component name
- XVU
- Housing colour
- Silver
- Signalling type
- Continuous or intermittent buzzer
- Material
- PBT (polybutylene terephthalate) V-0 conforming to UL 94; ABS (acrylonitrile butadiene-styrene) V-0 conforming to UL 94
- Localisation on device
- Top
- Assembly style
- Customer assembly
- [Us] rated supply voltage
- 24 V AC/DC
- Maximum power dissipation in W
- 1.7 W
- Acoustic level
- 85 dB at 1 m
- Sound frequency
- 2635 Hz
- Current consumption
- <= 70 mA
- Length
- 58 mm
- Product weight
- 0.077 kg
- Product certifications
- CSA; CE; UL
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…50 °C
- IP degree of protection
- IP54
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 9.0 cm
- Package 1 Width
- 9.1 cm
- Package 1 Length
- 13.3 cm
- Package 1 Weight
- 165.0 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 24
- Package 2 Height
- 30.0 cm
- Package 2 Width
- 30.0 cm
- Package 2 Length
- 40.0 cm
- Package 2 Weight
- 4.96 kg
- Country of origin
- ID
- Warranty (in months)
- 18
- Outer diameter
- 60 mm
- Function
- Continuous tone/pulse tone
- Loudness
- 85 dB
- Voltage type
- AC/DC
- Degree of protection (IP)
- IP54
- Tone adjustable
- No
- Operating voltage AC 50 Hz
- 24 V
- Operating voltage AC 60 Hz
- 24 V
- Operating voltage DC
- 24 V
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3606480555886
- SAP 1000632460
- Code 8567120
