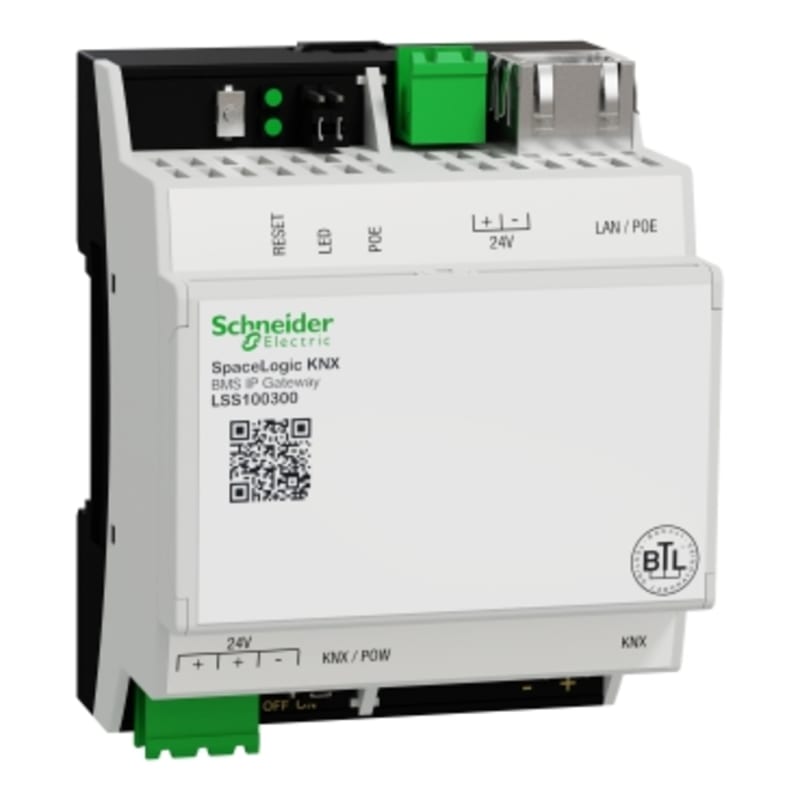

Schneider Electric BACnet/IP gateway, SpaceLogic KNX, BMS LSS100300
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LSS100300 SpaceLogic KNX, BMS IP Gateway, BACnet certified.
Technical Specifications
- Manufacturer part number (MPN)
- LSS100300
- EAN / GTIN
- 3606482215856
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Range
- KNX
- Product or component type
- BACnet/IP gateway
- Communication port protocol
- BACnet; KNX
- [Us] rated supply voltage
- 24 V DC
- Power consumption in W
- 2 W; 12 W
- LED indicator
- LED (green) for CPU load; LED (green/red) for KNX powered/reset
- Physical interface
- 1 x RJ45; 1 x TP-UART2
- Control type
- RESET push-button
- Port Ethernet
- 10BASE-T/100BASE-TX
- Mounting support
- DIN rail
- Connections - terminals
- KNX bus: bus terminal 1 cable(s) ; Power supply: 2 screw terminals 1 cable(s) ; Power supply: screw terminals 1 cable(s)
- Height
- 90 mm
- Width
- 71 mm
- Depth
- 61 mm
- IP degree of protection
- IP20
- Ambient air temperature for operation
- 0…45 °C
- Operating altitude
- <= 2000 m
- Relative humidity
- 0…93 %
- Standards
- IEC 60950-1
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 15
- Warranty (in months)
- 18
- Mounting method
- DRA (DIN-rail adaptor)
- Model
- Multiple interface
- Operating voltage
- 24 V
- Voltage type
- DC
- Power consumption
- 2 W
- Bus system KNX
- Yes
- Bus system radio frequency
- No
- Bus system Powernet
- No
- Width in number of modular spacings
- 4
- Other bus systems
- None
- Bus system LON
- No
- Demounting protection
- No
- Radio interface
- No
- IR interface
- No
- Protocol
- TCP/IP
- Provider dependent
- No
- Updateable
- Yes
- Visualization
- No
- Web-Server
- Yes
- Degree of protection (IP)
- IP20
- With LED indication
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Radio frequency bidirectional
- No
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Country of origin
- Latvia
Standards & Compliance
- HS Code
- 8536.41
Cross References
- EAN 3606482215856
- SAP 1200670118
- Code 83110326
Product Documentation
