Connectionsrail 3P Kit G630-800 (LA9G3752)
Pricing
Request a quote
We reply within 24 hours
Product Description

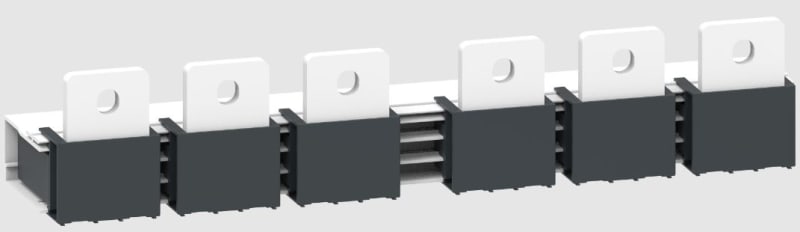

Schneider Electric LA9G3752 Omkoblingsskinne kit for TeSys Giga-contactor LC1G630-800, 3-pole.
Technical Specifications
- Manufacturer part number (MPN)
- LA9G3752
- EAN / GTIN
- 3606481916679
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Number of poles
- 3P
- Range
- TeSys
- Device short name
- LA9G
- Product or component type
- Set of connections
- Accessory / separate part category
- Connection accessory
- Electrical circuit type
- Changeover
- Quantity per set
- Set of 1
- Poles description
- 3P
- Product compatibility
- LC1G630...800; LC1G620
- Range compatibility
- TeSys Giga
- Height
- 400.5 mm
- Width
- 86 mm
- Depth
- 88 mm
- Product weight
- 5.205 kg
- Standards
- EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; GB/T 14048.4
- Product certifications
- ABS; BV; CB; CCC; CCS; CUL; CE; DNV-GL; EAC; KC; LROS (Lloyds register of shipping); RCM; RINA; RMRoS
- Operating altitude
- 3000 m without derating; 5000 m with derating factor
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481916679
- SAP 1200587835
- Code 82997015
Product Documentation
