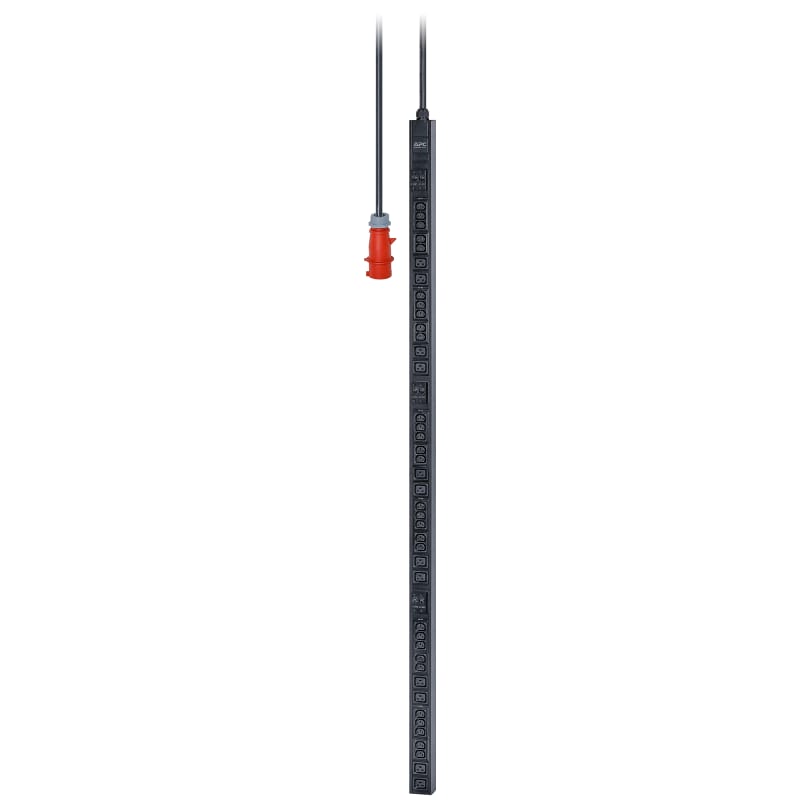

Schneider Electric APC Easy Rack PDU, Basic, 0U, 3 Phase, 22kW, 230V, 32A, 30 x C13 and 12 x C19 outlets, IEC60309 3P+N+PE inlet EPDU1232B
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric EPDU1232B Easy PDU BASIC 22 kW 230V OUTLET:30 pcs C13 & 12 pcs C19 / POWER SUPPLY: 1 pcs IEC60309 Red.
Technical Specifications
- Manufacturer part number (MPN)
- EPDU1232B
- EAN / GTIN
- 0731304405061
- Sales unit
- pcs
- Voltage
- 230 V
- Power
- 22 kW
- Colour
- Black
- Product or component type
- PDU
- PDU type
- Basic
- Cord length
- 1.9 m
- Number of cables
- 1
- Provided equipment
- Installation guide; Toolless mounting kit; Vertical mounting brackets
- Input Voltage
- 400 V 3 phases
- Height
- 1794 mm
- Width
- 62 mm
- Output Voltage
- 230 V
- Depth
- 44.4 mm
- Product weight
- 5.14 kg
- Mounting location
- Side
- Mounting preference
- No preference
- Input Plug Type
- IEC 60309 32 A 3P + N + PE
- mounting mode
- Rack-mounted
- Rack units
- 0U
- Mounting position
- Vertical
- Input current limits
- 32 A
- Load capacity
- 22000 VA
- Network frequency
- 50/60 Hz
- Outlet type and quantity
- 30 IEC 60320 C13 ; 12 IEC 60320 C19
- Product certifications
- CE; TÜV; EAC; RCM
- Ambient air temperature for operation
- -5…45 °C
- Relative humidity
- 5…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -25…65 °C
- Storage Relative Humidity
- 5…95 %
- Storage altitude
- 0…15240 m
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Country of origin
- CN
- Warranty (in months)
- 12
- With surge protection module
- No
- Mounting direction
- Vertical
- Electrical connection
- Connection cable with plug
- Cable length
- 2 m
- Number of C13 socket outlets
- 30
- Number of C19 socket outlets
- 12
- Length
- 1794 mm
- Supply voltage
- 230 V
- Mains filter
- No
- Switchable
- Yes
- With meter
- No
- Control function
- Yes
- SNMP
- No
- Interface ethernet
- Yes
- With display
- No
- With LED indication
- Yes
- With fuse
- No
- Ampere meter
- No
- Temperature measurement
- No
- With mounting material
- Yes
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 0731304405061
- SAP 1200422147
- Code 82461919
Product Documentation
More from Schneider Electric
Schneider Electric

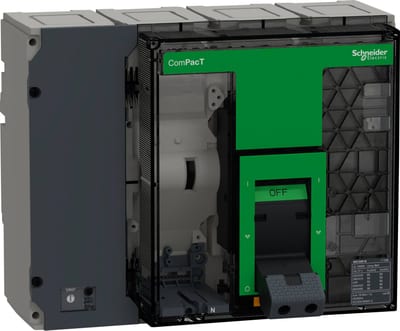

Schneider Electric Circuit breaker frame, ComPacT NS1000N, 50KA at 415VAC, 1000A, 4P, fixed, manually operated, without control unit C100N4FM
Schneider Electric

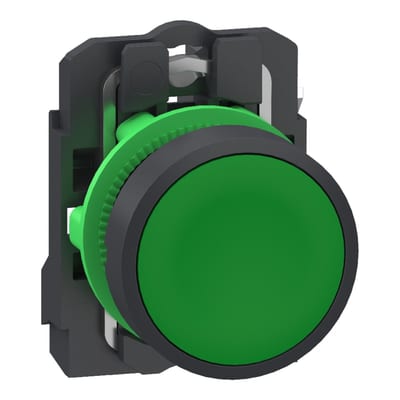

Schneider Electric Push button, Harmony XB5, grey plastic, flush, green, 22mm, spring return, unmarked, 1 NO, compact push in terminals XB5AA315
Schneider Electric

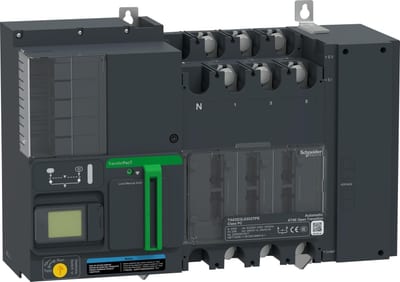

Schneider Electric TransferPacT Active Automatic, 630A, 230V, 3P, LCD, frame 630A TA63D3L6302TPE
Schneider Electric

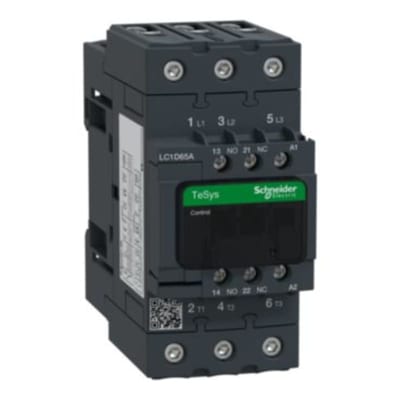

Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3E, <=400V, 65A, 440V AC 50/60Hz coil, screw clamp terminals LC1D65AR7
Schneider Electric

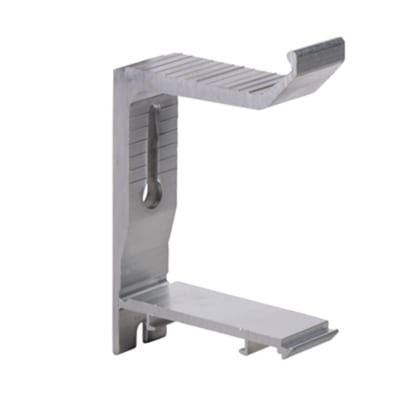

Schneider Electric KV79M Wall Bracket with Loose Ribbon Holder
5583038
Schneider Electric

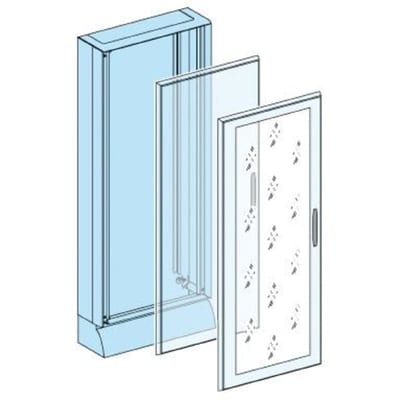

Schneider Electric Floor standing enclosure, PrismaSeT G, W 600mm, H 1580mm (27M), IP30 LVS08202
Schneider Electric

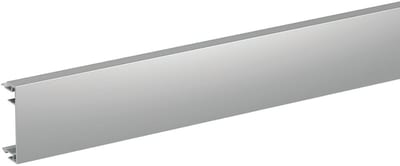

Schneider Electric OptiLine 45 - front cover - natural ISM10950
Schneider Electric

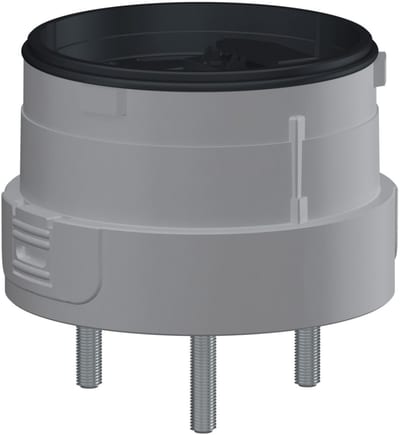

Silver Direct Mounting PLATE, 3 PINS
