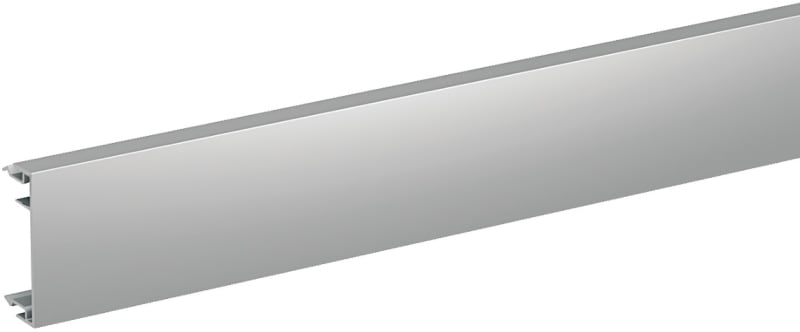

Schneider Electric OptiLine 45 - front cover - natural ISM10950
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ISM10950 OptiLine 45 front cover 45 mm for all OptiLine 45 wall trunking, L=2 m, anodised aluminium, halogen-free.
Technical Specifications
- Manufacturer part number (MPN)
- ISM10950
- EAN / GTIN
- 3606480028489
- Sales unit
- m
- Package quantity
- 12 m
- Cabling installation system
- Trunking; Pole; Post
- Product or component type
- Front cover
- Type of pole
- One-sided; Two-sided
- Type of post
- One-sided; Two-sided
- Colour tint
- Natural
- Quantity per set
- 24 m
- Trunking material
- Aluminium
- Trunking dimension
- 95 x 55 mm; 165 x 55 mm; 185 x 55 mm; 75 x 55 mm; 140 x 55 mm
- Pole/post surface finish
- Anodized
- Pole fixing mode
- Tension-mounted; Free-standing
- fixing mode
- Snap-fitted
- Material
- Aluminium anodized
- Length
- 2000 mm
- Height
- 45 mm
- Width
- 16 mm
- Market segment
- Residential; Small commercial
- Standards
- 73/23/EEC; 93/68/EEC; EN 50085-1:2005; EN 50085-2-1:2002; NF C 68-102
- Ambient air temperature for operation
- -25…60 °C
- IP degree of protection
- IP30
- Number of Units in Package 1
- 1
- Warranty (in months)
- 18
- Model
- Smooth
- Halogen free
- Yes
- Surface protection
- Anodised
- Operating temperature
- -25–60 °C
- Mounting method cover
- Spanned
- With protective foil
- Yes
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 7616.99
Cross References
- EAN 3606480028489
- SAP 1200547999
- Code 82907542
Product Documentation
More from Schneider Electric
Schneider Electric
Silver Direct Mounting PLATE, 3 PINS
XVUZ01Q
Schneider Electric

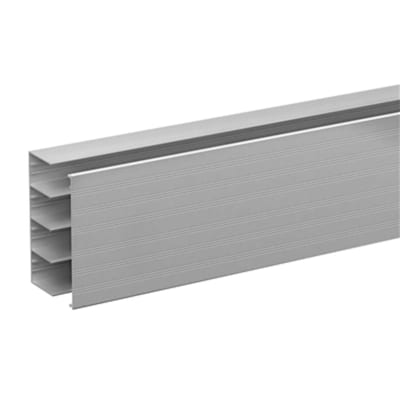

Channel FED 16155AN 2.5M
5435140
Schneider Electric

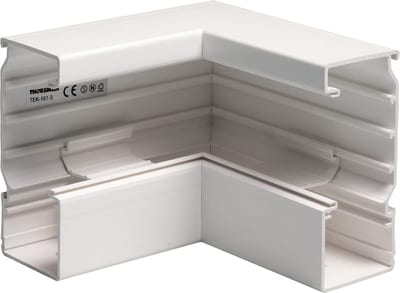

Internal corner TEK 161-3PV IH
5532600
Schneider Electric

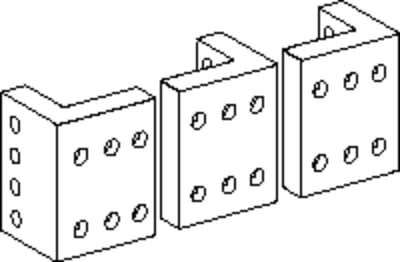

Vert.connection 4P NS1600/3200
33976
Schneider Electric

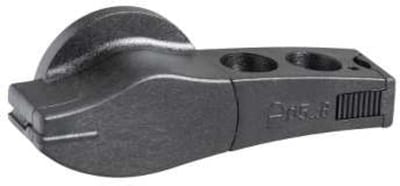

Schneider Electric rotary handle, Compact INS40 to 160, black
28962
Schneider Electric

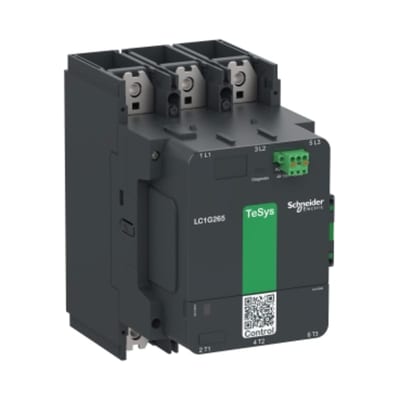

Schneider Electric High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 500A, standard version, 100…250V wide band AC/DC coil LC1G500KUEN
Schneider Electric

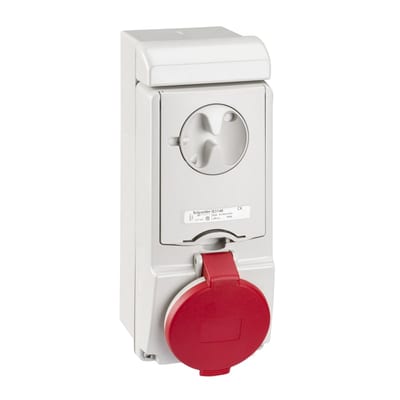

Socket with switch 32A 3PJ 400V IP
83146
Schneider Electric

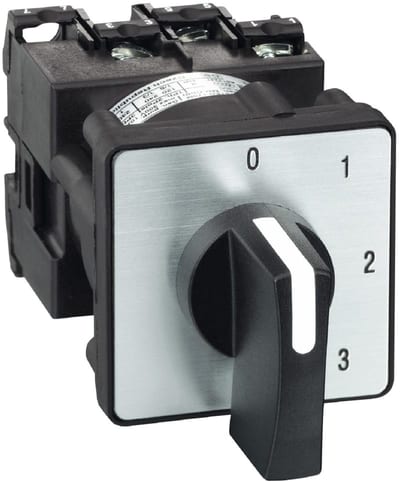

Schneider Electric Harmony K1, K2, Cam stepping switch, 1 pole,, 45°, 12 A, screw mounting K1C003QLH
