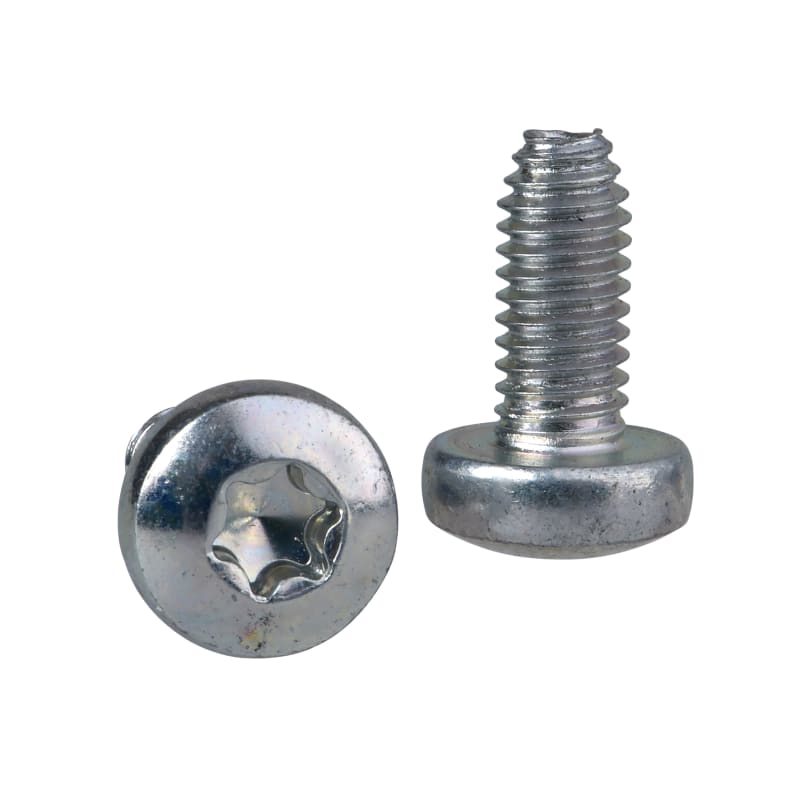

Schneider Electric Self-tapping Torx screw M6X12MM + captive washer. Supply: 100 units NSYST30M6S
Pricing
Request a quote
We reply within 24 hours
Product Description
Self-tapping Torx T30 screw (M6 × 12) with captive washer, pack of 100.
Technical Specifications
- Manufacturer part number (MPN)
- NSYST30M6S
- EAN / GTIN
- 3606480146817
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Range
- PanelSeT
- Accessory / separate part category
- Fixing accessory
- Product or component type
- Screw
- Anwendung
- Multi-purpose
- Range compatibility
- PanelSeT SM; PanelSeT SF SF
- Quantity per set
- Set of 100
- Length
- 14 mm
- Thread type
- M6
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.200 cm
- Package 1 Width
- 1.200 cm
- Package 1 Length
- 1.900 cm
- Package 1 Weight
- 5.000 g
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 100
- Package 2 Height
- 6.000 cm
- Package 2 Width
- 11.000 cm
- Package 2 Length
- 11.000 cm
- Package 2 Weight
- 538.000 g
- Country of origin
- ES
- Warranty (in months)
- 18
- Type of material certificate according to EN 10204
- None
- Material
- Steel
- Material quality
- 8.8 (steel)
- Surface protection
- Galvanic/electrolytic zinc plated
- Head form
- Button head
- Thread size (metric)
- 6
- Thread length
- 13 mm
- Screwing system
- Torx (TX)
- Pitch thread
- 1 mm
- Head diameter
- 12 mm
- Head height
- 4.7 mm
- Colour
- Zinc
Standards & Compliance
- HS Code
- 7318.14
Cross References
- EAN 3606480146817
- SAP 1200235908
- Code 82218655
Product Documentation
More from Schneider Electric
Schneider Electric
Module outlet unit USB A+C white
INS44205
Schneider Electric

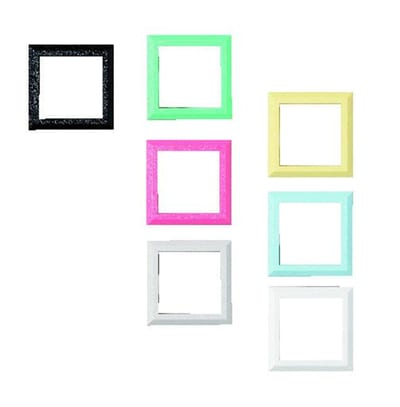

Mounting Frame for S-One connector white
306580006
Schneider Electric

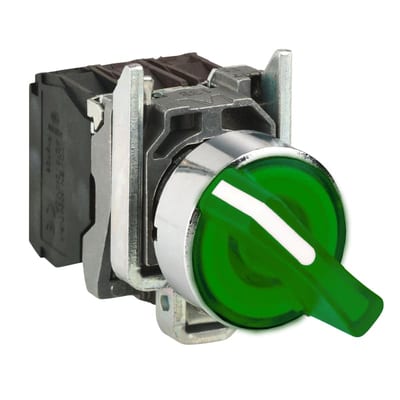

Schneider Electric Illuminated selector switch, Harmony XB4, metal, green handle, 22mm, universal LED, 3 positions, 1NO + 1NC, 230...240V AC XB4BK133M5
