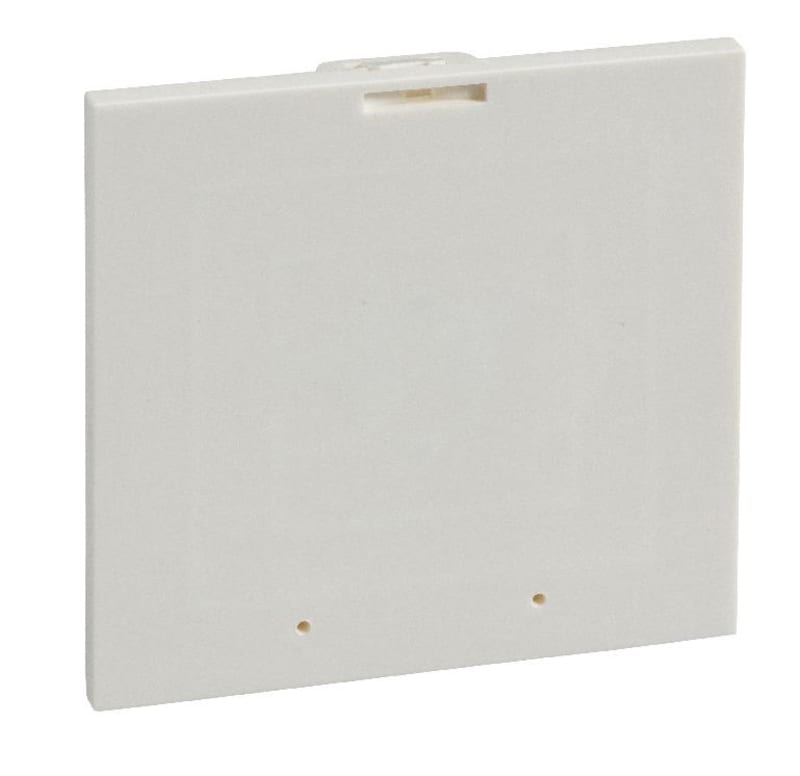

Cover Plate 96X96 PrismaSeT G/P

Schneider Electric LVS03908 Cover Plate for 96X96mm instrument-PrismaSeT G/P.

Manufacturer part number (MPN)

LVS03908

EAN / GTIN

3606481875372

Sales unit

pcs

Package quantity

200 pcs

Range

PrismaSeT

Range of product

PrismaSeT P; PrismaSeT G

Product or component type

Mounting plate

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle

installation description

Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Floor-standing enclosure - width 850 mm; Floor-standing duct - width 300 mm; Wall-mounted duct - width 300 mm; Cubicle - width 400 mm depth 400 mm; Cubicle - width 650 mm depth 400 mm; Cubicle duct - width 300 mm depth 400 mm

Mounting plate description

Plain

Installed device

Human-switchboard interface: HSI

Number of vertical modules [50 mm]

3 module(s): HSI in 600 mm Widefloor-standing enclosure; 3 module(s): HSI in 600 mm Widewall-mounted enclosure; 3 module(s): HSI in 650 mm Widecubicle; 3 module(s): HSI in 300 mm Widecubicle duct; 3 module(s): HSI in 400 mm Widecubicle; 4 module(s): HSI in 850 mm Widefloor-standing enclosure; 3 module(s): HSI in 300 mm Widefloor-standing duct; 3 module(s): HSI in 300 mm Widewall-mounted duct; 3 module(s): HSI in 850 mm Widefloor-standing enclosure

Standards

IEC 61439-2

Product certifications

ASTA

Material

Plastic

Colour

White (RAL 9001)

Width

96 mm

Height

96 mm

Depth

21 mm

Product weight

0.04 kg

Functional unit

600 mm PrismaSeT G floor-standing enclosure human-switchboard interface HSI 4 3; 600 mm PrismaSeT G wall-mounted enclosure human-switchboard interface HSI 4 3; 650 mm 400 mm PrismaSeT P cubicle human-switchboard interface HSI 4 3; 300 mm 400 mm PrismaSeT P cubicle duct human-switchboard interface HSI 4 3; 400 mm 400 mm PrismaSeT P cubicle human-switchboard interface HSI 4 3; 850 mm PrismaSeT G floor-standing enclosure human-switchboard interface HSI 1 4; 600 mm PrismaSeT G floor-standing enclosure human-switchboard interface HSI 1 3; 600 mm PrismaSeT G wall-mounted enclosure human-switchboard interface HSI 1 3; 300 mm PrismaSeT G floor-standing duct human-switchboard interface HSI 1 3; 300 mm PrismaSeT G wall-mounted duct human-switchboard interface HSI 1 3; 850 mm PrismaSeT G floor-standing enclosure human-switchboard interface HSI 4 3; 650 mm 400 mm PrismaSeT P cubicle human-switchboard interface HSI 1 3; 400 mm 400 mm PrismaSeT P cubicle human-switchboard interface HSI 1 3; 300 mm 400 mm PrismaSeT P cubicle duct human-switchboard interface HSI 1 3

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

1.200 cm

Package 1 Width

9.500 cm

Package 1 Length

9.800 cm

Package 1 Weight

28.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

200

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

6.100 kg

Country of origin

FR

Warranty (in months)

18

Model

Blind plate

RAL-number

9001

HS Code

7326.90

• EAN 3606481875372
• SAP 1200546769
• Code 82880681
