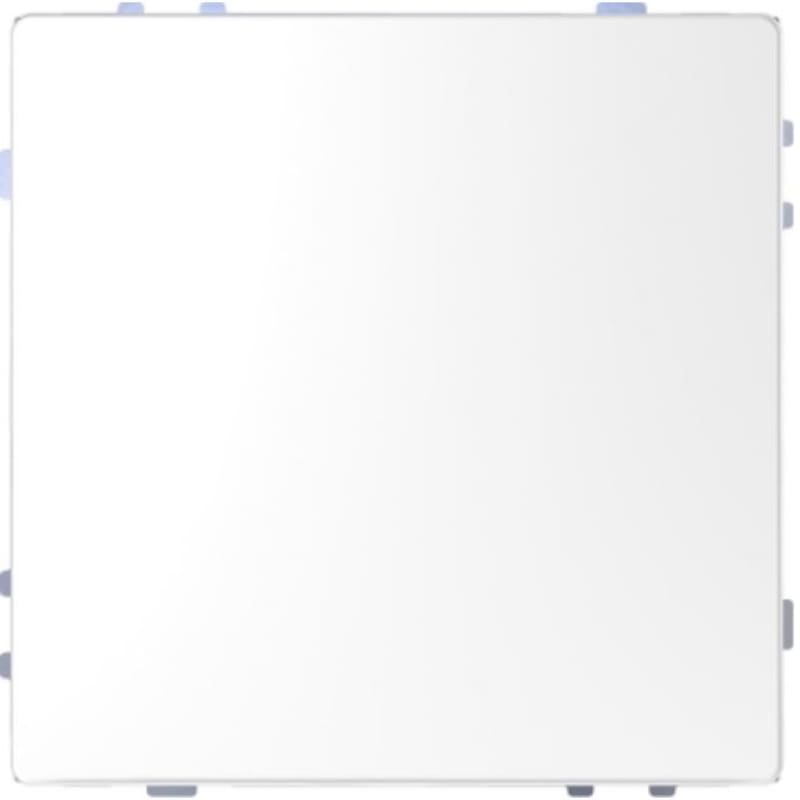

Schneider Electric Push-button Pro T, Merten System Design, temperature sensor, touchless, lotus white, Supply KNX 20 mA MTN6185-6035

Schneider Electric MTN6185-6035 — Push-button Pro T, Merten System Design, temperature sensor, touchless, lotus white, Supply KNX 20 mA.

Manufacturer part number (MPN)

MTN6185-6035

EAN / GTIN

3606481047687

Sales unit

pcs

Package quantity

50 pcs

Range

SpaceLogic KNX

Product or component type

Push-button

Bus type

KNX

Main colour tint

Lotus white

Power supply input current

20 mA

Control type

Touch type; Touchless

Sensor type

Temperature

Device mounting

Flush

Number of FUNCTION keys

4

Function available

Pulse edges trigger 1-, 2-, 4- or 8-bit telegrams; Express setting: Calls up a pre-set configuration; Push-button with 1 to 4 operating buttons; Night mode: LEDs light up with reduced brightness; Programmable with ETS4 and higher; Pulse edges with 2-byte telegrams; With status displays; Blind (single/dual-surface); Backlit symbols; Disable functions; Scene retrieval; Behaviour and brightness of the status displays; 8-bit linear regulator; Switching, toggling, dimming (single/dual-surface); Dismantling protection with accesories; Advanced setting: Individual configuration; Scene saving; Proximity function

Local signalling

1 LED per channel (white/green)

Marking

With symbols

Material

Plastic glossy

Colour tint

Lotus white (RAL 9003)

surface treatment

Varnished

Width

71 mm

Height

71 mm

Technology type

Electromechanical

Device presentation

Mechanism with fixing frame and cover plate

IP degree of protection

IP20

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.800 cm

Package 1 Width

7.700 cm

Package 1 Length

7.700 cm

Package 1 Weight

124.000 g

Unit Type of Package 2

CAR

Number of Units in Package 2

50

Package 2 Height

19.700 cm

Package 2 Width

30.400 cm

Package 2 Length

40.900 cm

Package 2 Weight

6.250 kg

Warranty (in months)

18

Other bus systems

None

Number of actuation points

4

Number of buttons

1

Material quality

Thermoplastic

Surface protection

Lacquered

Surface finishing

Glossy

Colour

White

RAL-number (similar)

9003

Degree of protection (IP)

IP20

Min. depth of built-in installation box

40 mm

Mounting method

Flush-mounted

Country of origin

Germany

HS Code

8536.50

• EAN 3606481047687
• SAP 1200535180
• Code 82822626
