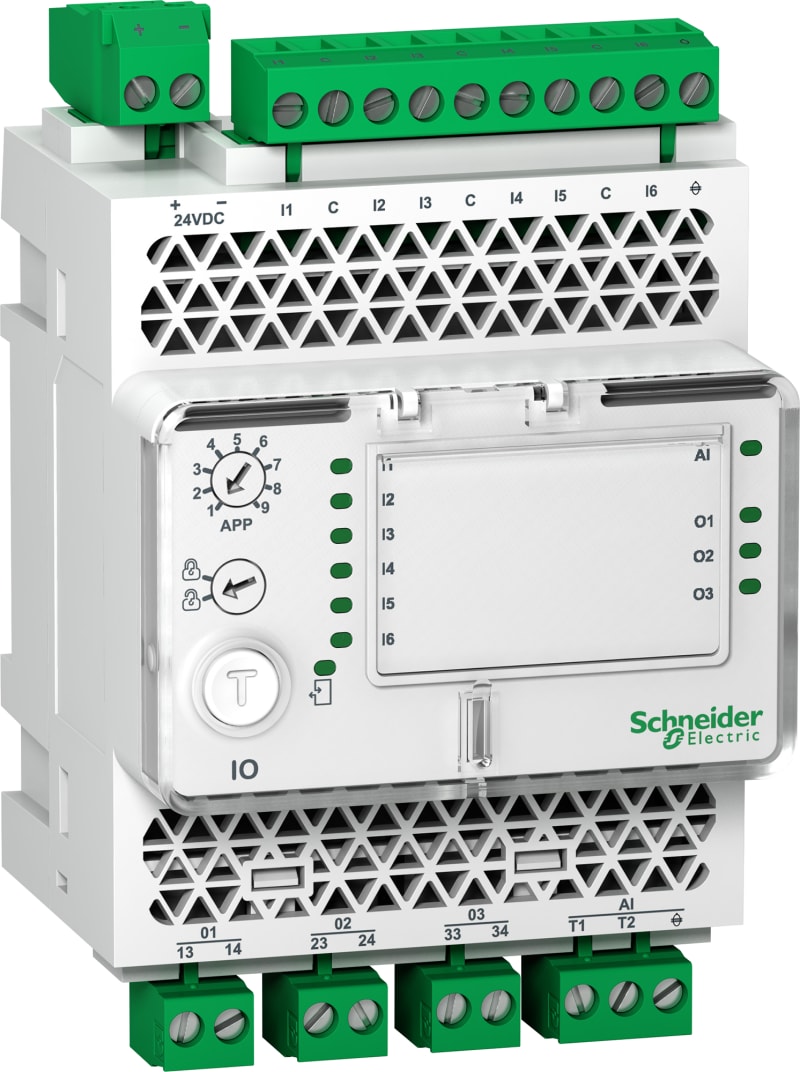

Schneider Electric LV434063 Enerlin'X I/O application module

Schneider Electric LV434063 Enerlin'X I/O application module is listed under Electrical Components. Sales unit: pcs; Package quantity: 24 pcs; Device short name: I/O; Product or component type: I/O module; Product name: Enerlin'X IO; Communication network type: Universal Logic Plug on 2 RJ45 connectors.

Manufacturer part number (MPN)

LV434063

EAN / GTIN

3606480631146

Sales unit

pcs

Package quantity

24 pcs

Device short name

I/O

Product or component type

I/O module

Range compatibility

Masterpact MasterPact MTZ; Masterpact MasterPact NT; Masterpact MasterPact NW; ComPact ComPact NSX; ComPact ComPact NS630b...1600; ComPact ComPact NS1600b...3200; PowerPact PowerPact J; PowerPact PowerPact L; PowerPact PowerPact H; PowerPact PowerPact P; PowerPact PowerPact R

Product name

Enerlin'X IO

Communication network type

Universal Logic Plug on 2 RJ45 connectors

[Us] rated supply voltage

24 V DC - 20...10 %

Current consumption

165 mA

Electromagnetic compatibility

Electrostatic discharge immunity test conforming to EN/IEC 61000-4-2; Immunity to radiated fields 10 V/m conforming to EN/IEC 61000-4-3; Surge immunity test conforming to EN/IEC 61000-4-5

Number of inputs

6 digital; 1 analog

Input type

Digital at state 1: 19.8…25.2 V - DC - 6.1…8.8 mA; Digital at state 0: 0…19.8 V - DC - 0 mA

Number of outputs

3 digital

Output type

Digital: 250 V - AC - 5 A

Cable length

10 m

mounting mode

By clips

Mounting support

35 mm DIN rail

Control type

By software

Time delay

0...20 s

Vibration frequency

5…8.4 Hz

Connections - terminals

Screw terminal block

Product certifications

FCC; GOST; CE; cULus

Standards

IEC 60947-6-2; UL 60950; IEC 60950; UL 508

Depth

70.6 mm

Height

116 mm

Width

71.7 mm

Product weight

229.5 g

Relative humidity

5…85 %

IP degree of protection

IP2X connectors: ; IP4X front panel: ; IP3x other parts:

Ambient air temperature for operation

-20…70 °C

Ambient air temperature for storage

-40…85 °C

Pollution degree

3

Flame retardance

V0 conforming to UL

Shock resistance

1000 m/s²

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

9.000 cm

Package 1 Width

8.800 cm

Package 1 Length

12.500 cm

Package 1 Weight

271.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

24

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

6.995 kg

Unit Type of Package 3

P06

Number of Units in Package 3

192

Package 3 Height

75.000 cm

Package 3 Width

60.000 cm

Package 3 Length

80.000 cm

Package 3 Weight

71.228 kg

Country of origin

ID

Warranty (in months)

18

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Number of analogue inputs

1

Analogue inputs configurable

Yes

Analogue outputs configurable

No

Number of digital inputs

6

Number of digital outputs

3

Digital inputs configurable

Yes

Digital outputs configurable

Yes

Supply voltage AC 50 Hz

0–24 V

Supply voltage AC 60 Hz

0–24 V

Supply voltage DC

19.2–26.4 V

Voltage type (supply voltage)

DC

Input current at signal 1

6.1 mA

Permitted voltage at input

19.8–25.2 V

Type of voltage (input voltage)

DC

Output current at digital output

5 A

Output voltage at digital output

250 V

Type of output voltage

AC

Short-circuit protection, digital outputs available

Yes

Analogue input, current

No

Analogue input, voltage

No

Analogue input, resistor

No

Analogue input, resistor temperature

Yes

Analogue input, thermocouple

Yes

Analogue input signal configurable

Yes

Analogue output, current

No

Analogue output, voltage

No

Analogue output signal configurable

No

Number of HW-interfaces other

2

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

HS Code

8538.90

• EAN 3606480631146
• SAP 1000667126
• Code 8362578
