Door cable compartment PrismaSeTG cabinet 36MOD-IP30
Pricing
Request a quote
We reply within 24 hours
Product Description

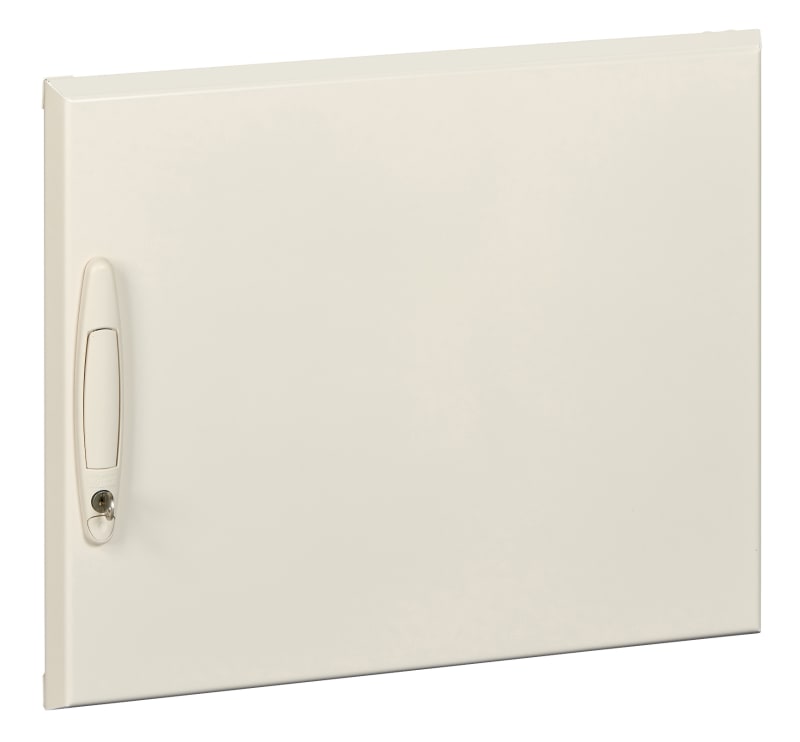

Schneider Electric LVS08285 Door for cable compartment PrismaSeT G floor-standing cabinet 36-modules-width 300mm- IP30-with handtak and key 405.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08285
- EAN / GTIN
- 3606481878397
- Sales unit
- pcs
- IP rating
- IP30
- Modular width
- 36 modules
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Door
- Range compatibility
- PrismaSeT PrismaSeT G duct
- Provided equipment
- door; handle; keylock (key 405); other keylock and insert to be ordered separately; 3 hinge
- type of door
- Plain
- IP degree of protection
- IP43 with door, canopy and IP43 gasket; IP30 without door; IP40 with door; IP41 with door and canopy
- installation description
- Floor-standing duct - width 300 mm
- Door opening side
- Reversible
- Number of locks
- 3
- door opening angle
- 130 °
- Number of vertical modules [50 mm]
- 36
- Enclosure material
- Handle: polyamide; Cover frame: treated sheet steel
- Quantity per set
- Set of 1
- Height
- 1816.6 mm
- Width
- 300 mm
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- IK degree of protection
- IK10 conforming to EN/IEC 62262
- Standards
- IEC 61439-1; IEC 61439-2
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 30
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Compartment door
- Depth
- 33 mm
- EMC-version
- No
- Material
- Steel
- Degree of protection (IP)
- IP40
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481878397
- SAP 1200547496
- Code 82879199
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSXm 160B, 25KA/415VAC, 3 poles, TMD trip unit 100A, EverLink lugs C11B3TM100L
Schneider Electric

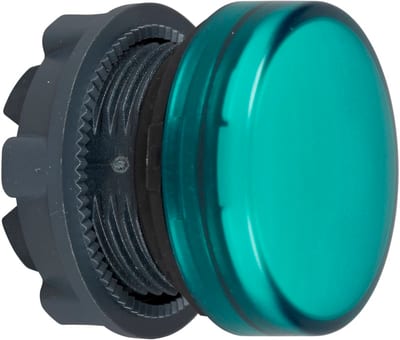

Schneider Electric ZB5OF03 green pilot light head ø22 plain lens for BA9S bulb
ZB5AV03
Schneider Electric

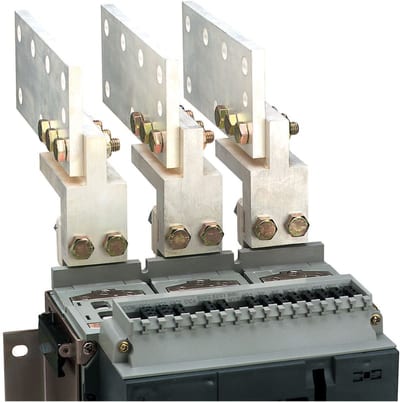

1 Cable Lug Adapter 4P
33645
Schneider Electric

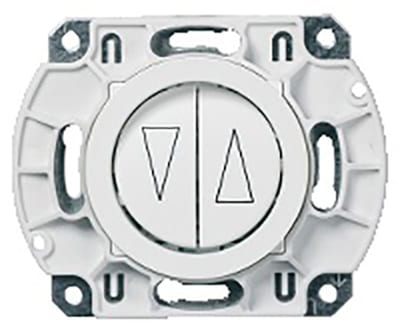

Schneider Electric Robust Roller-Blind Rocker Switch Insert White
WDE000935
Schneider Electric

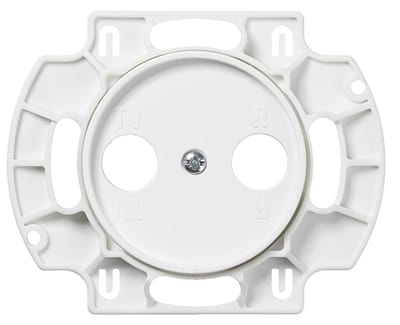

Robust centre plate for R/TV/SAT white
WDE000919
Schneider Electric

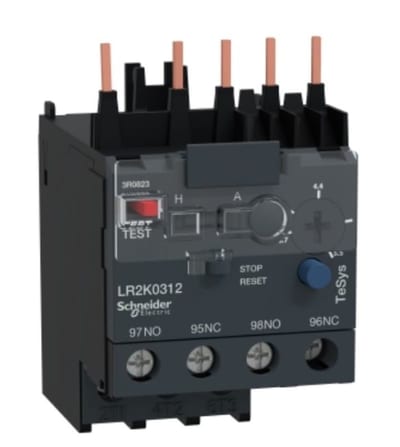

Schneider Electric differential thermal overload relay, TeSys K, 3.7...5.5A, class 10A LR2K0312
Schneider Electric

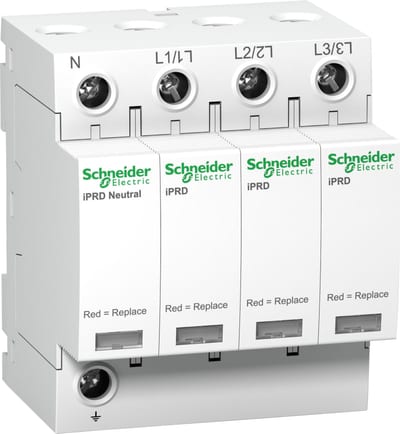

Schneider Electric IPRD8R modular surge arrester - 3P + N - 350V - with remote transfert A9L08601
Schneider Electric

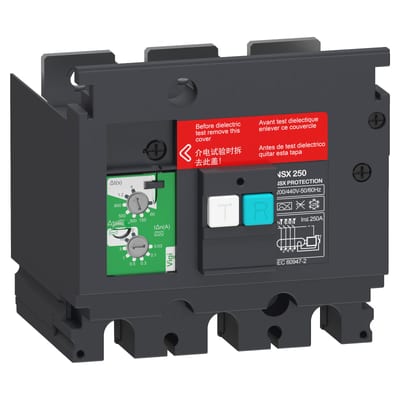

Schneider Electric Earth-leakage VigiPacT add-on protection module, ComPacT NSX 250, 200VAC to 440VAC, 30MA to 30A, 3 poles LV429492
