Schneider Electric

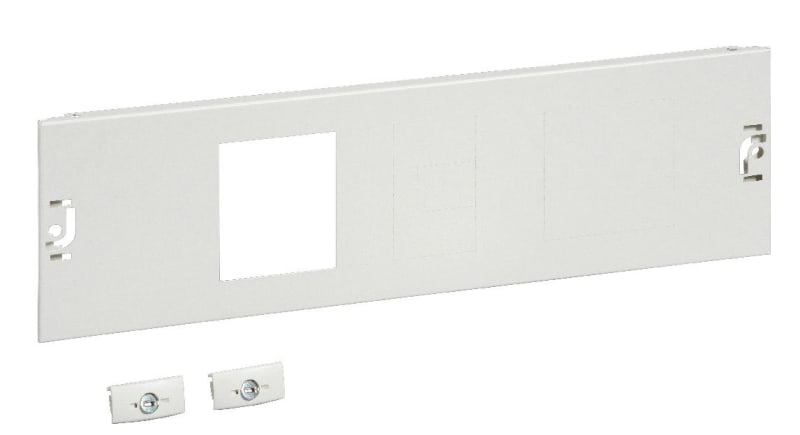

FRONTPL.NSX250 3P Horizontal-PrismaSeT P
Part numberLVS03604EAN / GTIN3606481866035HS code8536.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03604 Front plate for NSX100-250 3P-Horizontal-3P-fast/plug-in/all operation/motor-PrismaSeT P-650mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03604
- EAN / GTIN
- 3606481866035
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Number of poles
- 3P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- EasyPact: fixed CVS100...160 without earth leakage protection - control: direct front rotary handle - horizontal installation; EasyPact: fixed CVS250 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX100...160 without earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX100...160 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX250 without earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX250 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX100...160 without earth leakage protection - control: motor mechanism - horizontal installation; ComPact: fixed NSX250 without earth leakage protection - control: motor mechanism - horizontal installation; ComPact: plug-in NSX100...160 without earth leakage protection - control: toggle - horizontal installation; ComPact: plug-in NSX250 without earth leakage protection - control: toggle - horizontal installation; EasyPact: fixed CVS100...160 with earth leakage protection - control: direct front rotary handle - horizontal installation; EasyPact: fixed CVS250 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX100...160 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX100...160 with earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX250 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX250 with earth leakage protection - control: toggle - horizontal installation; ComPact: plug-in NSX100...160 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: plug-in NSX100...160 without earth leakage protection - control: motor mechanism - horizontal installation; ComPact: plug-in NSX250 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: plug-in NSX250 without earth leakage protection - control: motor mechanism - horizontal installation; ComPact: plug-in NSX100...160 with earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX100...160 with earth leakage protection - control: motor mechanism - horizontal installation; ComPact: plug-in NSX100...160 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: plug-in NSX100...160 with earth leakage protection - control: motor mechanism - horizontal installation; ComPact: plug-in NSX250 with earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX250 with earth leakage protection - control: motor mechanism - horizontal installation; ComPact: plug-in NSX250 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: plug-in NSX250 with earth leakage protection - control: motor mechanism - horizontal installation; Enerlin'X: fixed FDM121 - control: remote control - vertical installation
- Poles description
- 1 x 3P: mounting plate support: CVS100...160 horizontal installation; 1 x 3P: mounting plate support: CVS250 horizontal installation; 1 x 3P: mounting plate support: NSX100...160 horizontal installation; 1 x 3P: mounting plate support: NSX250 horizontal installation
- Operating position
- Horizontal
- Enclosure/cubicle description
- Cubicle - width 650 mm depth 400 mm
- Connection position
- Direct connection
- Number of vertical modules [50 mm]
- 3
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Height
- 150 mm
- Product weight
- 0.62 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS100...160 without fixed direct front rotary handle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS250 without fixed direct front rotary handle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed toggle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed direct front rotary handle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed motor mechanism horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in direct front rotary handle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in motor mechanism horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in toggle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed toggle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed direct front rotary handle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed motor mechanism horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in direct front rotary handle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in motor mechanism horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in toggle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS100...160 with fixed direct front rotary handle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS250 with fixed direct front rotary handle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed toggle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed direct front rotary handle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed motor mechanism horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in direct front rotary handle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in motor mechanism horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in toggle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed toggle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed direct front rotary handle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed motor mechanism horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in direct front rotary handle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in motor mechanism horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in toggle horizontal 3P 1 direct 3; 650 mm 400 mm PrismaSeT P cubicle Enerlin'X FDM121 fixed remote control vertical 1
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 16
- Number of Units in Package 3
- 192
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 500 mm
- Suitable for enclosure building width
- 650 mm
- Material
- Steel
- Number of height units
- 3
- Surface finishing
- Powder coating
- Suitable for enclosure building height
- 2000 mm
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481866035
- SAP 1200546709
- Code 82879978
Product Documentation
Document preview: Schneider Electric LVS03604 — OEM Product Page
More from Schneider Electric
Schneider Electric
OL MINI 1835 External corner Pure white
ISM14402P
Schneider Electric
Metal Clamp TKK 8-12 nail 2.1X18MM
IMT23620
Schneider Electric

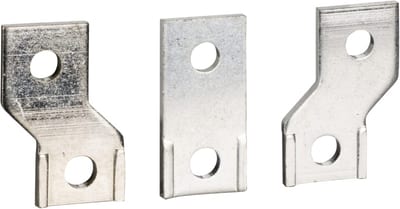

Schneider Electric spreaders 35 mm to 45 mm pitch, ComPact NSX 100/160/250, 3 poles, set of 3 parts LV431563
Schneider Electric

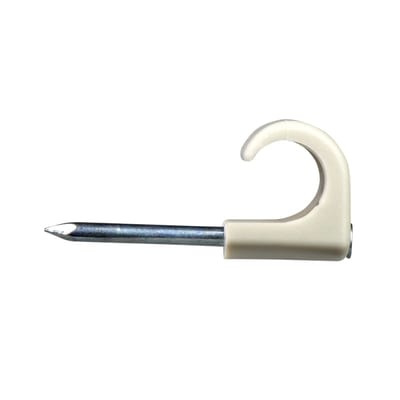

TC nail clip 8-12 white 20 pcs
IMT37427
Schneider Electric

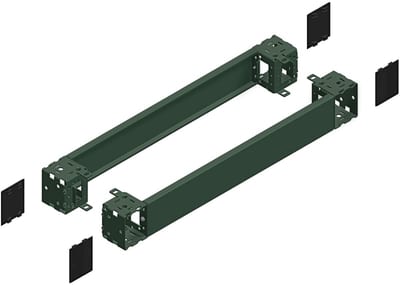

Schneider Electric NSYSPF8100 Front & rear plinth, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W800MM, plinth H100MM
Schneider Electric

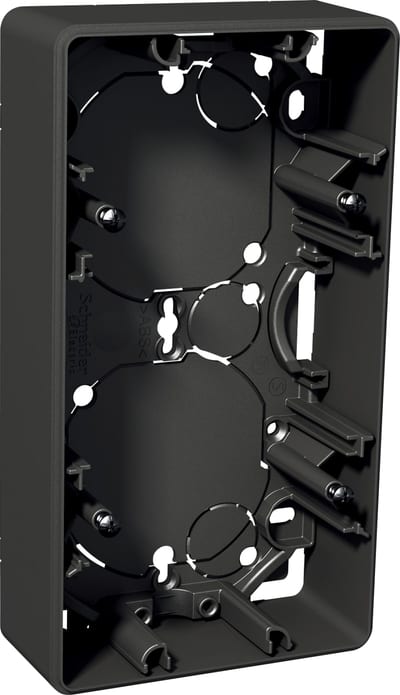

Exxact 2*PV-Cover 35mm ANTR
WDE003362
Schneider Electric

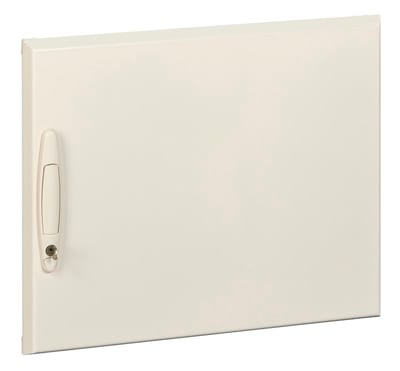

Door cable compartment PrismaSeTG cabinet 36MOD-IP30
LVS08285
Schneider Electric

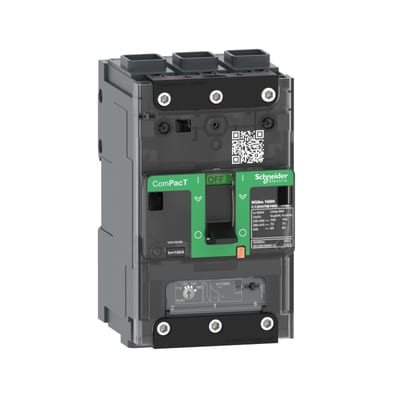

Schneider Electric Circuit breaker, ComPacT NSXm 160B, 25KA/415VAC, 3 poles, TMD trip unit 100A, EverLink lugs C11B3TM100L
