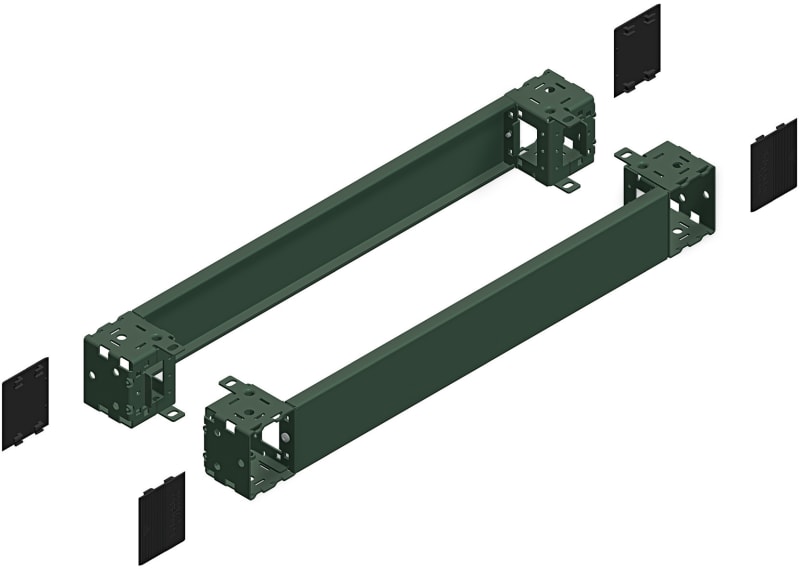

Schneider Electric NSYSPF8100 Front & rear plinth, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W800MM, plinth H100MM
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric NSYSPF8100 Front & rear plinth, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W800MM, plinth H100MM is listed under Enclosures / Enclosure Accessories. Sales unit: pcs; Range: PanelSeT; Product or component type: Front and rear plinth; Mounting support: Plinth side panels; Fixing mode: By fixing element - on structure location; Colour: Grey (RAL 7022).
Technical Specifications
- Manufacturer part number (MPN)
- NSYSPF8100
- EAN / GTIN
- 3606485126579
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Front and rear plinth
- Application
- Electronic application; Compartmentalised application; Multi-purpose
- Nominal dimensions of the housing
- -
- Device composition
- fixing elements; 4 corner cover; 1 front panel; 1 rear panel; 4 corner
- Range compatibility
- PanelSeT SF; PanelSeT SM; PanelSeT S3D; PanelSeT CRN; PanelSeT SFN
- Mounting support
- Plinth side panels
- Fixing mode
- By fixing element - on structure location
- Colour
- Grey (RAL 7022)
- Surface finish
- Epoxy-polyester powder
- Permanent permissible load
- 1300 kg
- Height
- 100 mm
- Width
- Nominal: 800 mm
- IP degree of protection
- IP20 (complete plinth)
- IK degree of protection
- IK10
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 11.000 cm
- Package 1 Width
- 20.000 cm
- Package 1 Length
- 81.500 cm
- Package 1 Weight
- 5.000 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 56
- Package 2 Height
- 102.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 102.000 cm
- Package 2 Weight
- 292.000 kg
- Country of origin
- TN
- Warranty (in months)
- 18
- Model
- Base front/back
- Depth
- 800 mm
- Max. load capacity
- 1300 kg
- Suitable for enclosure building width
- 800 mm
- Material
- Steel
- RAL-number (similar)
- 7030
- Suitable for outdoor set-up
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485126579
- SAP 1000317653
- Code 8823096
