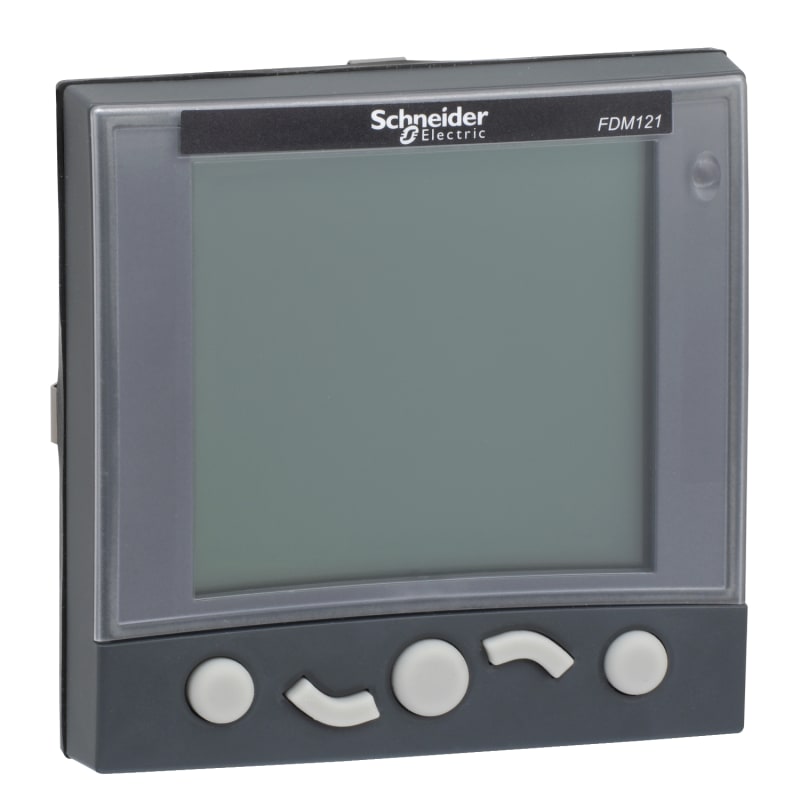

Schneider Electric TRV00121 switchboard display module FDM 121, 1 connected device, screen 96 x 96 mm, IP54 on front face
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric TRV00121 switchboard display module FDM 121, 1 connected device, screen 96 x 96 mm, IP54 on front face is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Package quantity: 34 pcs; Device short name: FDM121; Product or component type: Display module; Product name: Enerlin'X FDM; Control type: Remote control.
Technical Specifications
- Manufacturer part number (MPN)
- TRV00121
- EAN / GTIN
- 3606480025389
- Sales unit
- pcs
- Package quantity
- 34 pcs
- Device short name
- FDM121
- Product or component type
- Display module
- Accessory / separate part category
- Display and signalling accessory
- Range compatibility
- MasterPact MTZ; MasterPact NW; MasterPact NT; Compact NSX; ComPact ComPact NS630b...1600; ComPact ComPact NS1600b...3200; PowerPact PowerPact H; PowerPact PowerPact J; PowerPact PowerPact L; PowerPact PowerPact P; PowerPact PowerPact R
- Product name
- Enerlin'X FDM
- Function of module
- Remote control; View network; Metering; Display alarm
- Control type
- Remote control
- mounting mode
- Flush mounting
- Mounting support
- Surface mount with kit; Door cut-out
- Display type
- LCD screen with white backlighting
- Display resolution
- 128 x 128 pixels
- View angle horizontal x vertical
- 60 x 30°
- [Us] rated supply voltage
- 24 V DC - 20...10 %
- Current consumption
- 21 mA
- Standards
- CE; CSA; UL
- Height
- 96 mm
- Width
- 96 mm
- Depth
- 33.6 mm
- IP degree of protection
- IP53 front face:
- Ambient air temperature for operation
- -10…55 °C
- Ambient air temperature for storage
- -40…85 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.803 cm
- Package 1 Width
- 10.275 cm
- Package 1 Length
- 10.375 cm
- Package 1 Weight
- 244.5 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 34
- Package 2 Height
- 30 cm
- Package 2 Width
- 30 cm
- Package 2 Length
- 40 cm
- Package 2 Weight
- 8967 g
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 816
- Package 3 Height
- 95 cm
- Package 3 Width
- 80 cm
- Package 3 Length
- 120 cm
- Package 3 Weight
- 224208 g
- Country of origin
- CN
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8524.91
Cross References
- EAN 3606480025389
- SAP 1000092875
- Code 8861402
Product Documentation
