PLM86 Autoinsats 7035 112MOD
Pricing
Request a quote
We reply within 24 hours
Product Description

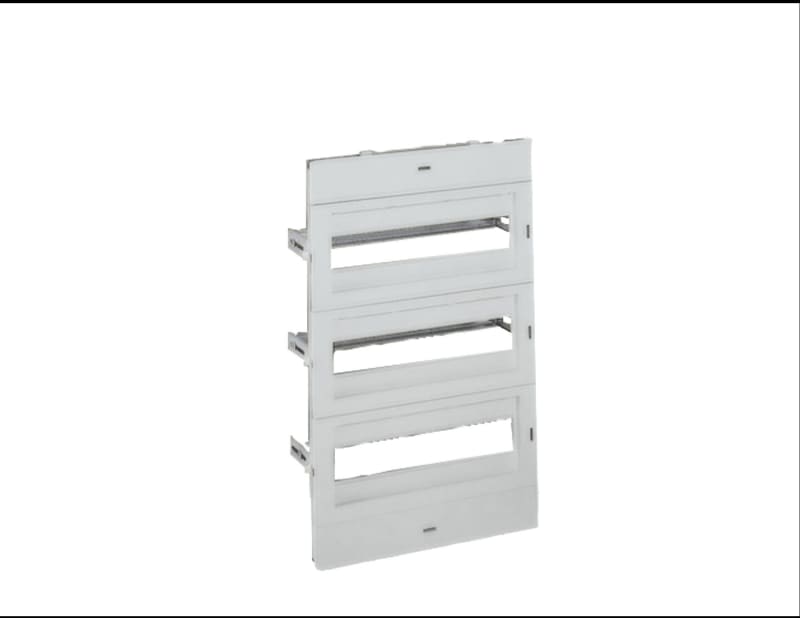

Schneider Electric NSYDLA112G — Modular distribution chassis 112 modules for NSYPLM86,NSYS3D86,NSYCRN86,NSYS3X86.
Technical Specifications
- Manufacturer part number (MPN)
- NSYDLA112G
- EAN / GTIN
- 3606480773808
- Sales unit
- pcs
- Package quantity
- 23 pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Application
- Multi-purpose; Modular distribution application
- Product or component type
- Chassis
- Device short name
- DLA
- For enclosure nominal dimensions
- -
- Mounting location
- Front of enclosure
- Range compatibility
- PanelSeT S3D; PanelSeT CRN; PanelSeT PLM
- Device composition
- 1 chassis structure; 4 front panels with 35 mm DIN rail; 2 finish cover; 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm²
- Quantity per set
- Set of 1
- Material
- Front panel: self-extinguishing insulating; Chassis structure and rails: steel
- Colour
- Front panel: grey (RAL 7035)
- Fixing mode
- By fixing element - on front with supports location
- Adjustment
- In height from 40 to 85 mm for DIN rail
- Number of horizontal rows
- 4
- Total number of 18 mm modules
- 112
- Type of front plate
- Plain and cut-out plates
- Number of cut-out
- 4 cut-outs
- Height
- 780 mm
- Width
- 560 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 15.500 cm
- Package 1 Width
- 57.500 cm
- Package 1 Length
- 78.000 cm
- Package 1 Weight
- 8.118 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 16
- Package 2 Height
- 124.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 142.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Type of covering
- With notch
- Number of DIN-rails
- 4
- Number of modular spacings per DIN-rail
- 28
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480773808
- SAP 1000752297
- Code 8489215
Product Documentation
More from Schneider Electric
Schneider Electric
Cable Cat 6A UFTP LSZH 4P Cca 500M blue
VDICC62X218
Schneider Electric
Schneider Electric LV434200 communication terminal block, NSX cord, ComPact NSX, 0.35 m length
Schneider Electric
Schneider Modicon TM3 Expert 2-Channel HSC Module with Event Handling, 10 In/8 Out, Spring
TM3XFHSC202G
Schneider Electric
Buskoppling T.in EthNet IP-Modb
TPRBCEIP
Schneider Electric

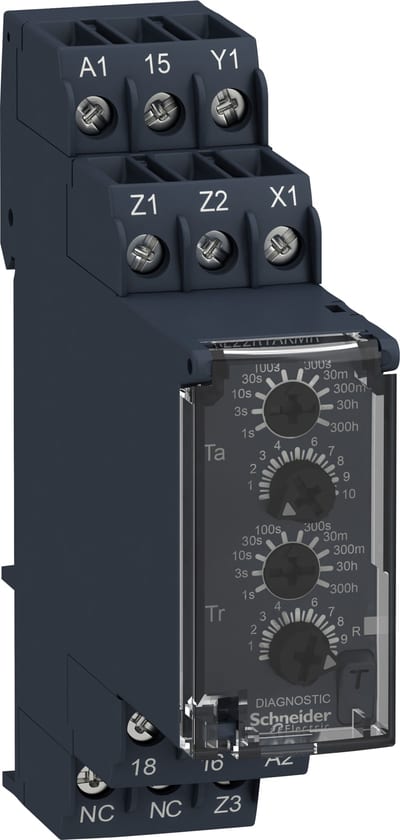

Schneider Electric Asym. on and Off-delay Timing Relay - 0.05S…300H - 24…240V AC/DC - 1C/O RE22R1AKMR
