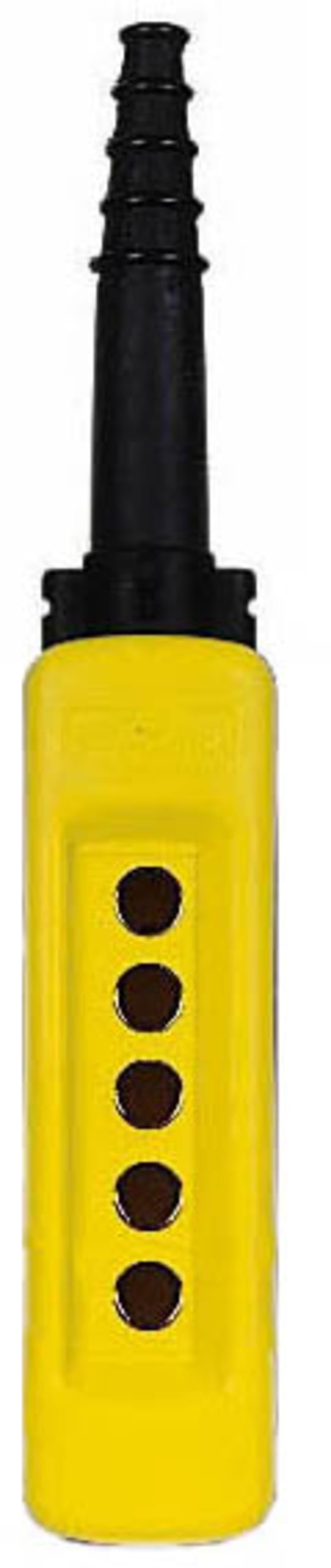

Schneider Electric empty pendant control station XAC-A - 5 vertical openings XACA05

Schneider Electric XACA05 — empty pendant control station XAC-A - 5 vertical openings.

Manufacturer part number (MPN)

XACA05

EAN / GTIN

3389110835670

Sales unit

pcs

Package quantity

12 pcs

Range of product

Harmony XAC

Product or component type

Pendant control station

Device short name

XACA

Control station type

Double insulated

Enclosure material

Polypropylene

Electrical circuit type

Control circuit

enclosure type

Empty enclosure

Number of cut-out

5 cut-outs

Control station colour

Yellow

Cable entry

Rubber sleeve with stepped entry 8…26 mm

Guard rail

Without

Vertical operator cut-out centre

30 mm

Standards

UL 508; IEC 60204-32; CSA C22.2 No 14; IEC 60947-5-1

Product certifications

CCC; GOST

Protective treatment

TH

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Mechanical durability

1000000 cycles

Product weight

0.625 kg

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

9.000 cm

Package 1 Width

9.000 cm

Package 1 Length

44.500 cm

Package 1 Weight

584.000 g

Unit Type of Package 2

S04

Number of Units in Package 2

12

Package 2 Height

30.000 cm

Package 2 Width

40.000 cm

Package 2 Length

60.000 cm

Package 2 Weight

7.657 kg

Country of origin

CZ

Warranty (in months)

18

Suitable for control current circuit

Yes

Suitable for main current circuit

No

Number of command positions

5

Colour housing cover

Yellow

Housing material

Plastic

Degree of protection (IP)

IP65

Inner diameter opening

26 mm

HS Code

8538.10
